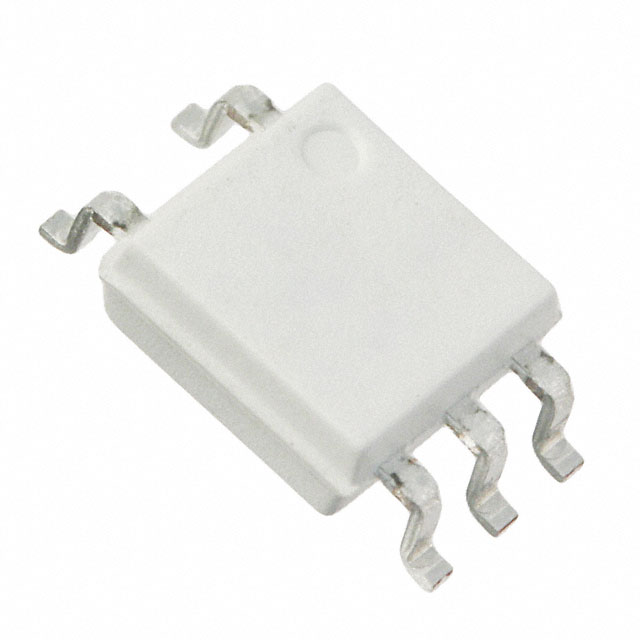

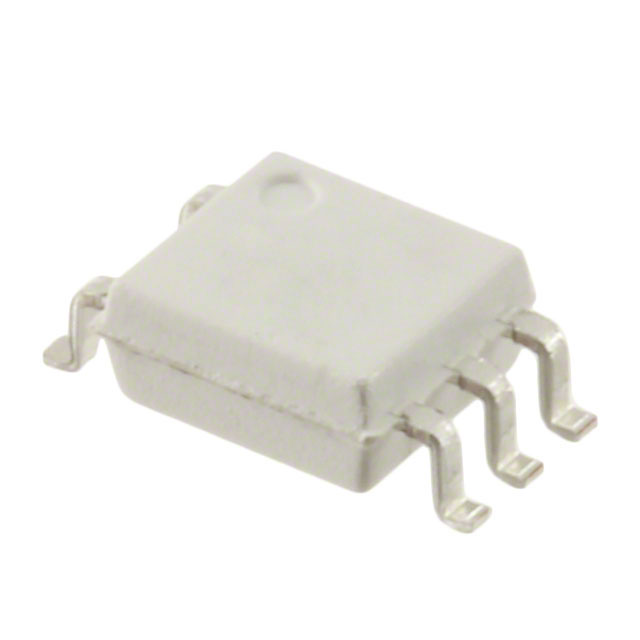

FODM8061 Series

High Noise Immunity, 3.3V/5V, 10Mbit/sec Logic Gate Output (Open Collector) Optocoupler

Catalog

High Noise Immunity, 3.3V/5V, 10Mbit/sec Logic Gate Output (Open Collector) Optocoupler

Part	Inputs - Side 1/Side 2 [custom]	Supplier Device Package	Common Mode Transient Immunity (Min) [Min]	Voltage - Isolation	Data Rate	Current - Output / Channel	Mounting Type	Number of Channels	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Forward (Vf) (Typ)	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Type	Current - DC Forward (If) (Max) [Max]
ON Semiconductor FODM8061R2	1	5-Mini-Flat	20 kV/µs	3750 Vrms	10 Mbps	50 mA	Surface Mount	1	Open Collector Schottky Clamped	-40 °C	110 °C	20 ns	10 ns	1.45 V	5.5 V	3 V	DC	50 mA
ON Semiconductor FODM8061V	1	5-Mini-Flat	20 kV/µs	3750 Vrms	10 Mbps	50 mA	Surface Mount	1	Open Collector Schottky Clamped	-40 °C	110 °C	20 ns	10 ns	1.45 V	5.5 V	3 V	DC	50 mA
ON Semiconductor FODM8061R2V	1	5-Mini-Flat	20 kV/µs	3750 Vrms	10 Mbps	50 mA	Surface Mount	1	Open Collector Schottky Clamped	-40 °C	110 °C	20 ns	10 ns	1.45 V	5.5 V	3 V	DC	50 mA

Catalog

High Noise Immunity, 3.3V/5V, 10Mbit/sec Logic Gate Output (Open Collector) Optocoupler

Key Features

• High Noise Immunity characterized by common mode transient immunity (CMTi) - 20kV/µs Minimum CMTi

• High Speed - 10Mbit/s Date Rate (NRZ) - 80ns max. Propagation Delay - 25ns max. Pulse Width Distortion - 40ns max. Propagation Delay Skew

• 3.3V LVTTL/LVCMOS Compatibility

• Specifications guaranteed over 3V to 5.5V supply voltage and -40°C to +110°C temperature range

• Safety and regulatory approvals - UL1577, 3750 VACRMSfor 1 min. - IEC60747-5-2 (pending approval)

Description

The FODM8061 is a 3.3V/5V high-speed logic gate output (open collector) optocoupler, which supports isolated communications allowing digital signals to communicate between systems without conducting ground loops or hazardous voltages. It utilizes ON Semiconductor's proprietary coplanar packaging technology, Optoplanar®, and optimized IC design to achieve high noise immunity, characterized by high common mode transient immunity specifications.This optocoupler consists of an AlGaAS LED at the input, optically coupled to a high speed integrated photodetector logic gate. The output of the detector IC is an open collector Schottky-clamped transistor. The coupled parameters are guaranteed over the wide temperature range of -40°C to +110°C. A maximum input signal of 5mA will provide a minimum output sink current of 13mA (fan out of 8).
