857-078 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 78POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Type	Contact Material	Flange Feature	Pitch	Pitch	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Color	Contact Finish	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Termination	Card Type	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 857-078-500-208	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Semi Bellows	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	Through Hole	0.25 Ám	10 Áin	Dual	Black	Gold	39	125 °C	-40 C	78	Solder Eyelet(s)	Non Specified - Dual Edge	2

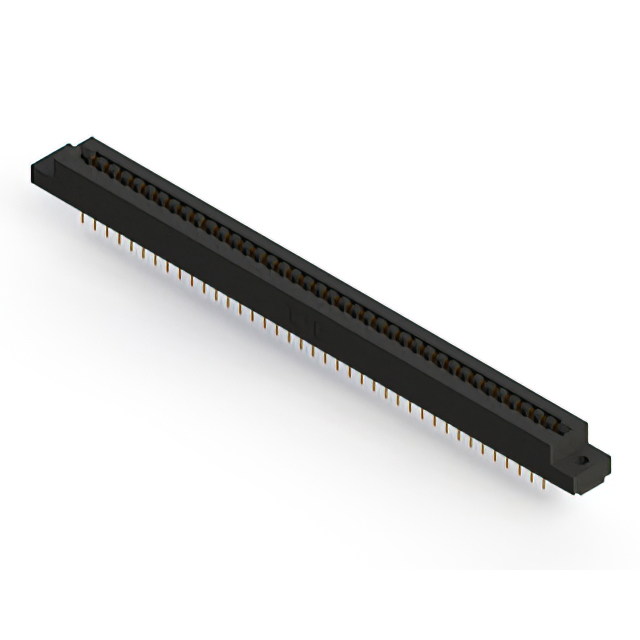

EDAC Inc. 857-078-524-202	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Semi Bellows	Copper Alloy	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in	Through Hole	0.25 Ám	10 Áin	Dual	Black	Gold	39	125 °C	-40 C	78	Solder	Non Specified - Dual Edge	2	3.25 mm	0.128 "

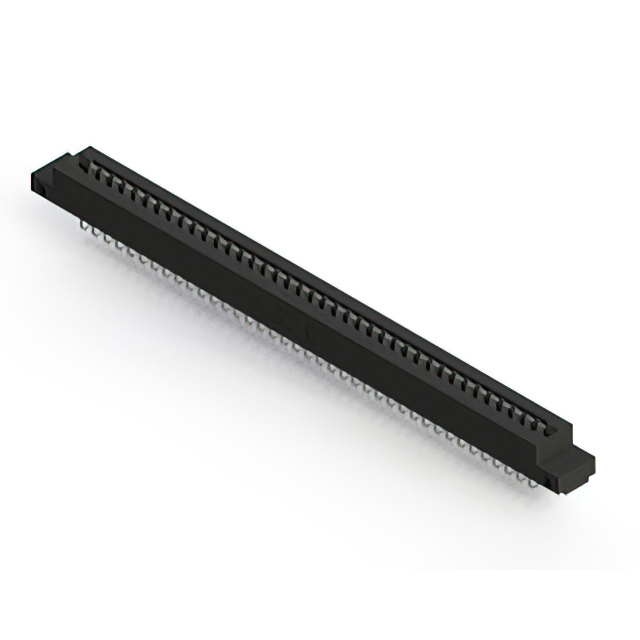

EDAC Inc. 857-078-459-212	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Semi Bellows	Copper Alloy	Side Mount Opening Unthreaded	3.96 mm	0.156 in	Right Angle Through Hole			Single	Black	Tin	39	125 °C	-40 C	78	Solder	Non Specified - Dual Edge	2	3.25 mm	0.128 "
EDAC Inc. 857-078-560-208	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Semi Bellows	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	Board Edge Straddle Mount	0.25 Ám	10 Áin	Dual	Black	Gold	39	125 °C	-40 C	78	Solder	Non Specified - Dual Edge	2			Card Extender

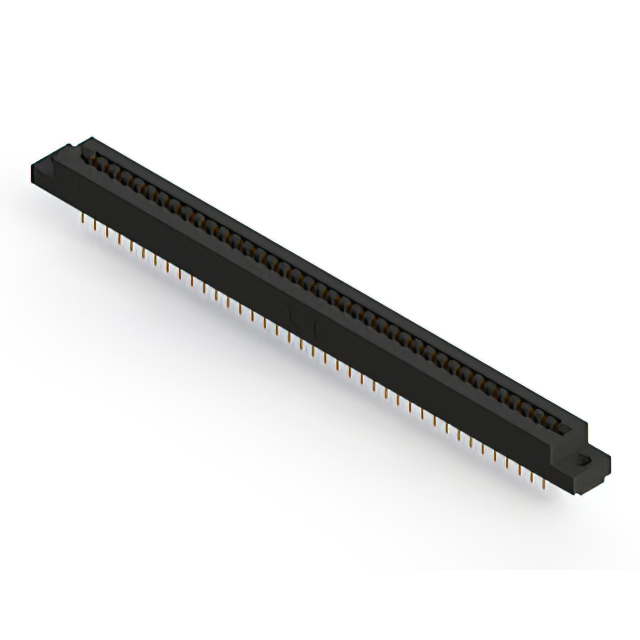

EDAC Inc. 857-078-524-204	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Semi Bellows	Copper Alloy	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in	Through Hole	0.25 Ám	10 Áin	Dual	Black	Gold	39	125 °C	-40 C	78	Solder	Non Specified - Dual Edge	2	3.96 mm	0.156 "

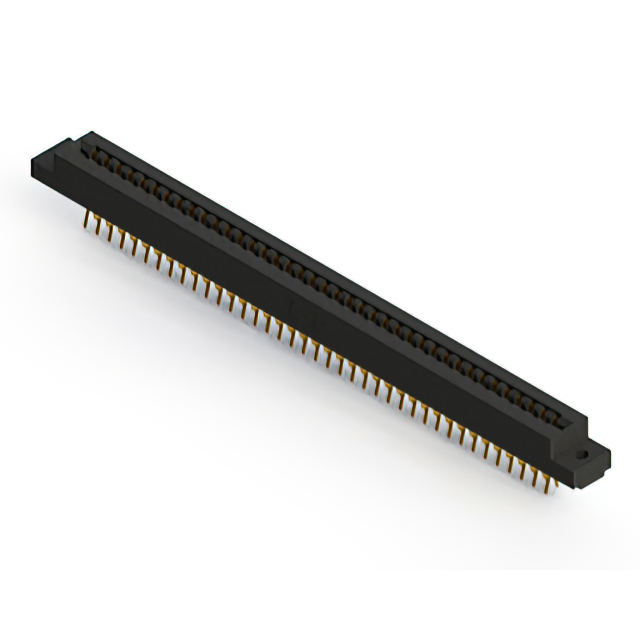

EDAC Inc. 857-078-560-202	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Semi Bellows	Copper Alloy	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in	Board Edge Straddle Mount	0.25 Ám	10 Áin	Dual	Black	Gold	39	125 °C	-40 C	78	Solder	Non Specified - Dual Edge	2	3.25 mm	0.128 "	Card Extender
EDAC Inc. 857-078-500-212	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Semi Bellows	Copper Alloy	Side Mount Opening Unthreaded	3.96 mm	0.156 in	Through Hole	0.25 Ám	10 Áin	Dual	Black	Gold	39	125 °C	-40 C	78	Solder Eyelet(s)	Non Specified - Dual Edge	2	3.25 mm	0.128 "
EDAC Inc. 857-078-440-212	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Semi Bellows	Copper Alloy	Side Mount Opening Unthreaded	3.96 mm	0.156 in	Through Hole			Dual	Black	Tin	39	125 °C	-40 C	78	Wire Wrap	Non Specified - Dual Edge	2	3.25 mm	0.128 "
EDAC Inc. 857-078-540-202	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Semi Bellows	Copper Alloy	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in	Through Hole	0.25 Ám	10 Áin	Dual	Black	Gold	39	125 °C	-40 C	78	Wire Wrap	Non Specified - Dual Edge	2	3.25 mm	0.128 "
EDAC Inc. 857-078-500-204	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Semi Bellows	Copper Alloy	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in	Through Hole	0.25 Ám	10 Áin	Dual	Black	Gold	39	125 °C	-40 C	78	Solder Eyelet(s)	Non Specified - Dual Edge	2	3.96 mm	0.156 "
