OSTOQ02 Series

Catalog

TERM BLOCK HDR 2POS 90DEG 5.08MM

Part	Insulation Height [z]	Insulation Height [z]	Housing Material	Contact Tail Length	Contact Tail Length	Mounting Type	Pitch	Pitch	Positions Per Level	Voltage - UL	Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Mating Finish	Header Orientation	Number of Positions	Termination Style	Number of Levels	Contact Material	Insulation Height	Insulation Height	Material Flammability Rating	Features

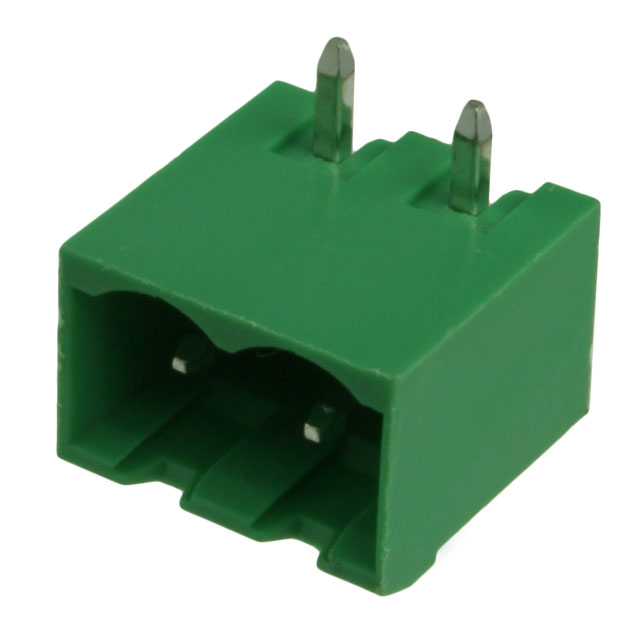

On Shore Technology Inc. OSTOQ025451	4 mm	0.157 in	Thermoplastic	0.157 in	4 mm	Solder Through Hole	5.08 mm	0.2 in	2	300 V	Header Male Pins Shrouded (4 Side)	115 °C	-40 C	Tin	90° Right Angle	2	Solder	1
On Shore Technology Inc. OSTOQ020051	4 mm	0.157 in	Thermoplastic	0.157 in	4 mm	Solder Through Hole	7.62 mm	0.3 in	2	300 V	Header Male Pins Shrouded (2 Side)	105 ░C	-30 ░C	Tin	90° Right Angle	2	Solder	1	Brass

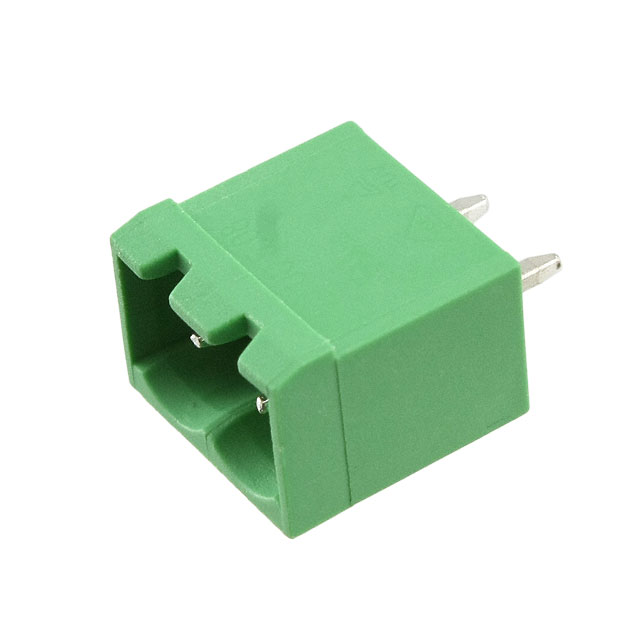

On Shore Technology Inc. OSTOQ025450			Thermoplastic	0.157 in	4 mm	Solder Through Hole	5.08 mm	0.2 in	2	300 V	Header Male Pins Shrouded (4 Side)	105 ░C	-30 ░C	Tin	Vertical	2	Solder	1	Brass	0.472 "	12 mm

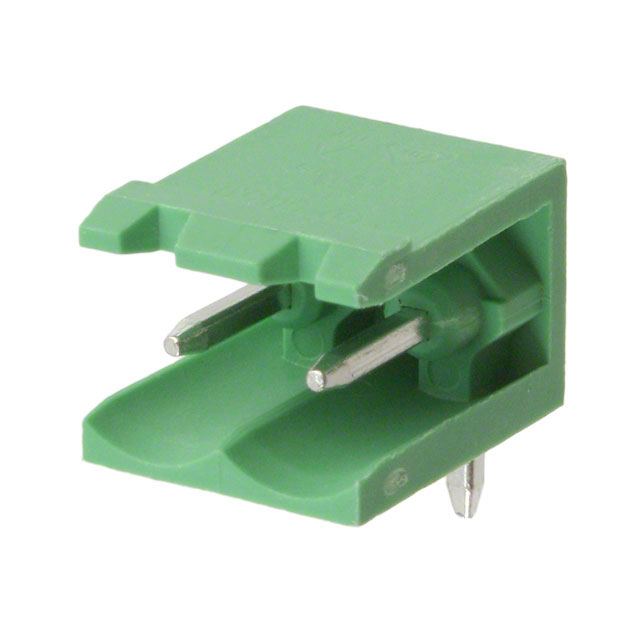

On Shore Technology Inc. OSTOQ027051	4 mm	0.157 in	Thermoplastic	0.157 in	4 mm	Solder Through Hole	5 mm	0.197 in	2	300 V	Header Male Pins Shrouded (2 Side)	105 ░C	-30 ░C	Tin	90° Right Angle	2	Solder	1	Brass
On Shore Technology Inc. OSTOQ025400			Thermoplastic	0.157 in	4 mm	Solder Through Hole	5.08 mm	0.2 in	2	300 V	Header Male Pins Shrouded (4 Side)	105 ░C	-30 ░C	Tin	Vertical	2	Solder	1	Brass	0.472 "	12 mm
On Shore Technology Inc. OSTOQ021551	3.5 mm	0.138 "	Thermoplastic	0.138 in	3.5 mm	Solder Through Hole	3.5 mm	0.138 "	2	300 V	Header Male Pins Shrouded (4 Side)	105 ░C	-30 ░C	Tin	90° Right Angle	2	Solder	1	Brass			UL94 V-0	Mating Flange

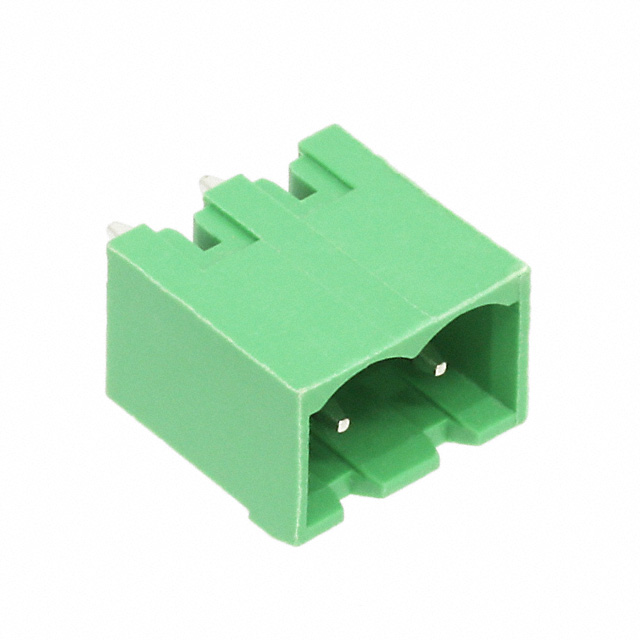

On Shore Technology Inc. OSTOQ027150	4 mm	0.157 in	Thermoplastic	0.157 in	4 mm	Solder Through Hole	5 mm	0.197 in	2	300 V	Header Male Pins Shrouded (4 Side)	105 ░C	-30 ░C	Tin	Vertical	2	Solder	1	Brass

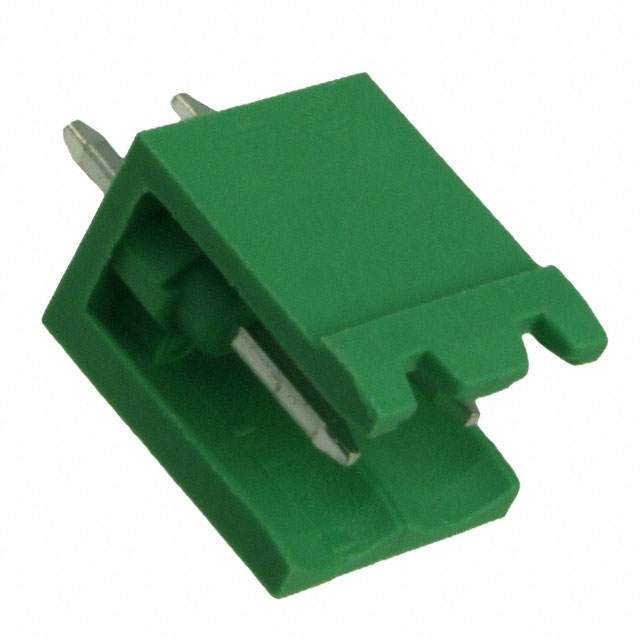

On Shore Technology Inc. OSTOQ025350	4 mm	0.157 in	Thermoplastic	0.157 in	4 mm	Solder Through Hole	5.08 mm	0.2 in	2	300 V	Header Male Pins Shrouded (2 Side)	105 ░C	-30 ░C	Tin	Vertical	2	Solder	1	Brass
On Shore Technology Inc. OSTOQ021550	3.5 mm	0.138 "	Thermoplastic	0.138 in	3.5 mm	Solder Through Hole	3.5 mm	0.138 "	2	300 V	Header Male Pins Shrouded (4 Side)	105 ░C	-30 ░C	Tin	Vertical	2	Solder	1	Brass			UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ0254511	3.5 mm	0.138 "	Thermoplastic	0.138 in	3.5 mm	Solder Through Hole	5.08 mm	0.2 in	2	300 V	Header Male Pins Shrouded (4 Side)	115 °C	-40 C	Tin	90° Right Angle	2	Solder	1	Brass
