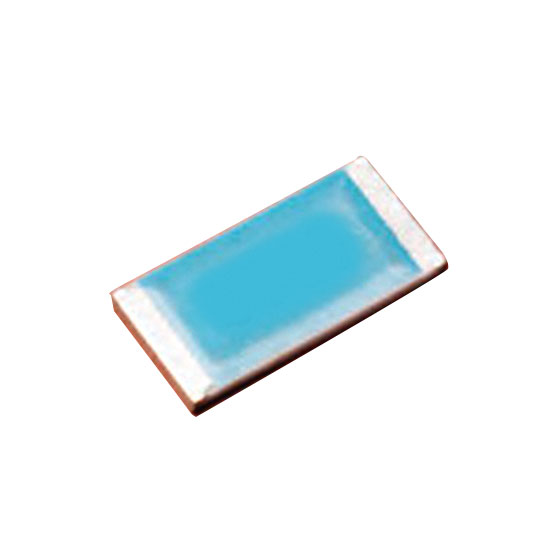

RK73H2A Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.25W, 3160000OHM, 150V, 1% +/-TOL, 400PPM/CEL, SURFACE MOUNT, 0805, CHIP

...

Part	Tolerance	Number of Terminations	Features	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Power (Watts)	Power (Watts)	Supplier Device Package	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Temperature Coefficient	Package / Case	Resistance
KOA Speer Electronics, Inc. RK73H2ATTD3164F	1 %	2	Automotive AEC-Q200	155 °C	-55 °C	Thick Film	0.25 W	250 mW	0805	AEC-Q200	0.6 mm	0.024 in	2 mm	0.079 in	0.049 in	1.25 mm	400 ppm/°C	0805	3.16 MOhms
KOA Speer Electronics, Inc. RK73H2ATTD8200F	1 %	2	Automotive AEC-Q200	155 °C	-55 °C	Thick Film	0.25 W	250 mW	0805	AEC-Q200	0.6 mm	0.024 in	2 mm	0.079 in	0.049 in	1.25 mm	100 ppm/°C	0805	820 Ohms
KOA Speer Electronics, Inc. RK73H2ATTD9764F	1 %	2	Automotive AEC-Q200	155 °C	-55 °C	Thick Film	0.25 W	250 mW	0805	AEC-Q200	0.6 mm	0.024 in	2 mm	0.079 in	0.049 in	1.25 mm	400 ppm/°C	0805	9.76 MOhms
KOA Speer Electronics, Inc. RK73H2ATTD1783F	1 %	2	Automotive AEC-Q200	155 °C	-55 °C	Thick Film	0.25 W	250 mW	0805	AEC-Q200	0.6 mm	0.024 in	2 mm	0.079 in	0.049 in	1.25 mm	100 ppm/°C	0805	178 kOhms
KOA Speer Electronics, Inc. RK73H2ARTTD1004F	1 %	2	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	155 °C	-55 °C	Thick Film	0.25 W	250 mW	0805	AEC-Q200	0.6 mm	0.024 in	2 mm	0.079 in	0.049 in	1.25 mm	100 ppm/°C	0805	1 MOhms
KOA Speer Electronics, Inc. RK73H2ARTTD2202F	1 %	2	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	155 °C	-55 °C	Thick Film	0.25 W	250 mW	0805	AEC-Q200	0.6 mm	0.024 in	2 mm	0.079 in	0.049 in	1.25 mm	100 ppm/°C	0805	22 kOhms
KOA Speer Electronics, Inc. RK73H2ARTTD5361F	1 %	2	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	155 °C	-55 °C	Thick Film	0.25 W	250 mW	0805	AEC-Q200	0.6 mm	0.024 in	2 mm	0.079 in	0.047 in	1.2 mm	100 ppm/°C	0805	5.36 kOhms
KOA Speer Electronics, Inc. RK73H2ATTD3900F	1 %	2	Automotive AEC-Q200	155 °C	-55 °C	Thick Film	0.25 W	250 mW	0805	AEC-Q200	0.6 mm	0.024 in	2 mm	0.079 in	0.049 in	1.25 mm	100 ppm/°C	0805	390 Ohms
KOA Speer Electronics, Inc. RK73H2ARTTD1740F	1 %	2	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	155 °C	-55 °C	Thick Film	0.25 W	250 mW	0805	AEC-Q200	0.6 mm	0.024 in	2 mm	0.079 in	0.047 in	1.2 mm	100 ppm/°C	0805	174 Ohms
KOA Speer Electronics, Inc. RK73H2ATTD1742D		2	Automotive AEC-Q200	155 °C	-55 °C	Thick Film	0.25 W	250 mW	0805	AEC-Q200	0.6 mm	0.024 in	2 mm	0.079 in	0.049 in	1.25 mm	100 ppm/°C	0805	17.4 kOhms
