717-044 Series
Manufacturer: EDAC Inc.
Beta
⌘K

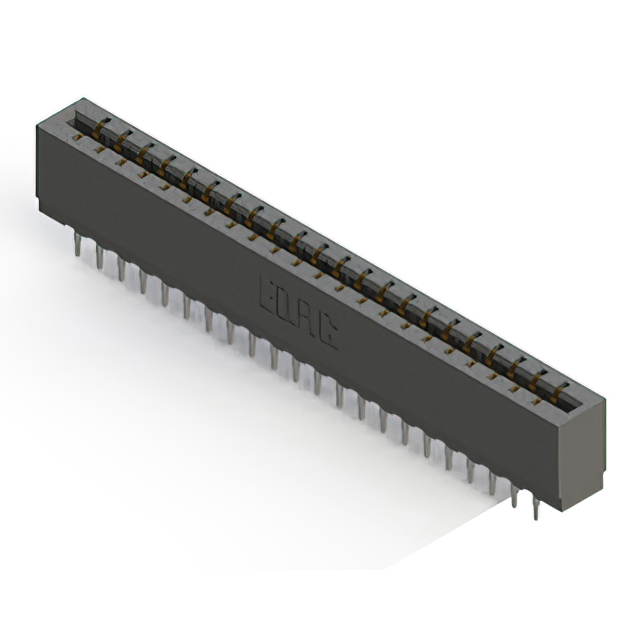

CONN EDGE DUAL FMALE 44POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Contact Finish | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Pitch | Pitch | Gender | Contact Material | Number of Rows [custom] | Contact Type | Card Type | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Termination | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | Dual | 30 Áin | 0.76 Ám | 44 | 3.96 mm | 0.156 in | Female | Copper Alloy | 2 | Cantilever Make Before Break | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Press-Fit | Black | -40 C | 105 ░C | 22 |
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | Dual | 30 Áin | 0.76 Ám | 44 | 3.96 mm | 0.156 in | Female | Copper Alloy | 2 | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Press-Fit | Black | -40 C | 105 ░C | 22 |
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | Dual | 30 Áin | 0.76 Ám | 44 | 3.96 mm | 0.156 in | Female | Copper Alloy | 2 | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Press-Fit Wire Wrap | Black | -40 C | 105 ░C | 22 |
