FXTYL5 Series

Catalog

OM3 12F TRUNK LSZH MPO F/LC DUP STD POLA

Part	2nd Connector	Color - Connectors	1st Connector	Type	Length - Overall [x]	Length - Overall [x]	Operating Temperature [Min]	Operating Temperature [Max]	Fiber Type	Cable Type	Insertion Loss	Cable Diameter [diameter]	Cable Diameter [diameter]	Length - Overall	Length - Overall

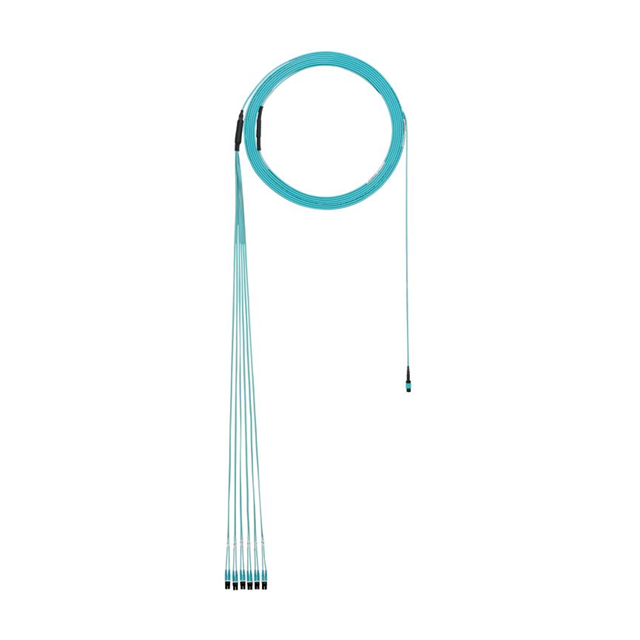

Panduit Corp FXTYL5EL2SAM025	LC Duplex	Aqua	MPO	Duplex Multimode OM3	82 ft	25 m	-20 C	70 °C	50/125	Trunk	0.25 dB 0.5 dB	4.5 mm	0.18 in
Panduit Corp FXTYL5EL2SAM035	LC Duplex	Aqua	MPO	Duplex Multimode OM3	114.8 ft	35 m	-20 C	70 °C	50/125	Trunk	0.25 dB 0.5 dB	4.5 mm	0.18 in
Panduit Corp FXTYL5EL2SAM055	LC Duplex	Aqua	MPO	Duplex Multimode OM3			-20 C	70 °C	50/125	Trunk	0.25 dB 0.5 dB	4.5 mm	0.18 in	180.4 ft	55 m
Panduit Corp FXTYL5EL2SAM100	LC Duplex	Aqua	MPO	Duplex Multimode OM3			-20 C	70 °C	50/125	Trunk	0.25 dB 0.5 dB	4.5 mm	0.18 in	328.1 '	100 m
Panduit Corp FXTYL5EL2SAM045	LC Duplex	Aqua	MPO	Duplex Multimode OM3	147.6 ft		-20 C	70 °C	50/125	Trunk	0.25 dB 0.5 dB	4.5 mm	0.18 in		45 m
Panduit Corp FXTYL5EL2SAM020	LC Duplex	Aqua	MPO	Duplex Multimode OM3	65.6 ft	20 m	-20 C	70 °C	50/125	Trunk	0.25 dB 0.5 dB	4.5 mm	0.18 in
Panduit Corp FXTYL5EL2SAM015	LC Duplex	Aqua	MPO	Duplex Multimode OM3	49.2 '	15 m	-20 C	70 °C	50/125	Trunk	0.25 dB 0.5 dB	4.5 mm	0.18 in
Panduit Corp FXTYL5EL2SAM040	LC Duplex	Aqua	MPO	Duplex Multimode OM3	131.2 ft		-20 C	70 °C	50/125	Trunk	0.25 dB 0.5 dB	4.5 mm	0.18 in		40 m
Panduit Corp FXTYL5EL2SAM080	LC Duplex	Aqua	MPO	Duplex Multimode OM3	262.5 ft	80 m	-20 C	70 °C	50/125	Trunk	0.25 dB 0.5 dB	4.5 mm	0.18 in
Panduit Corp FXTYL5EL2SAM010	LC Duplex	Aqua	MPO	Duplex Multimode OM3	32.8 ft	10 m	-20 C	70 °C	50/125	Trunk	0.25 dB 0.5 dB	4.5 mm	0.18 in
