1609090 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

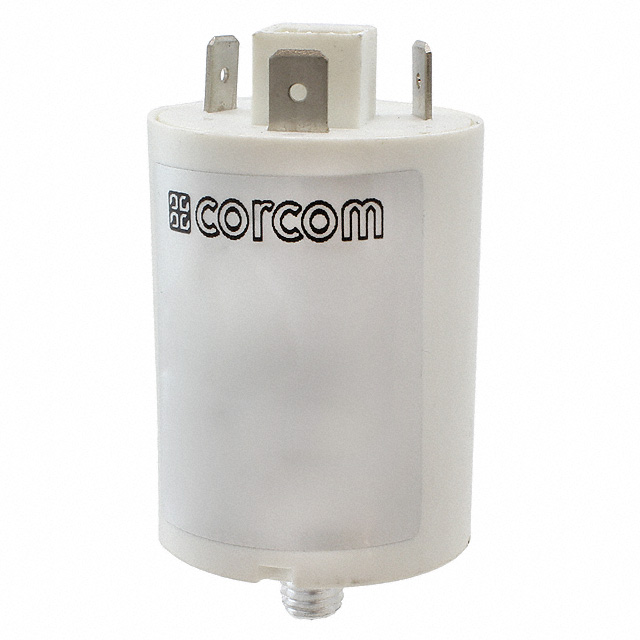

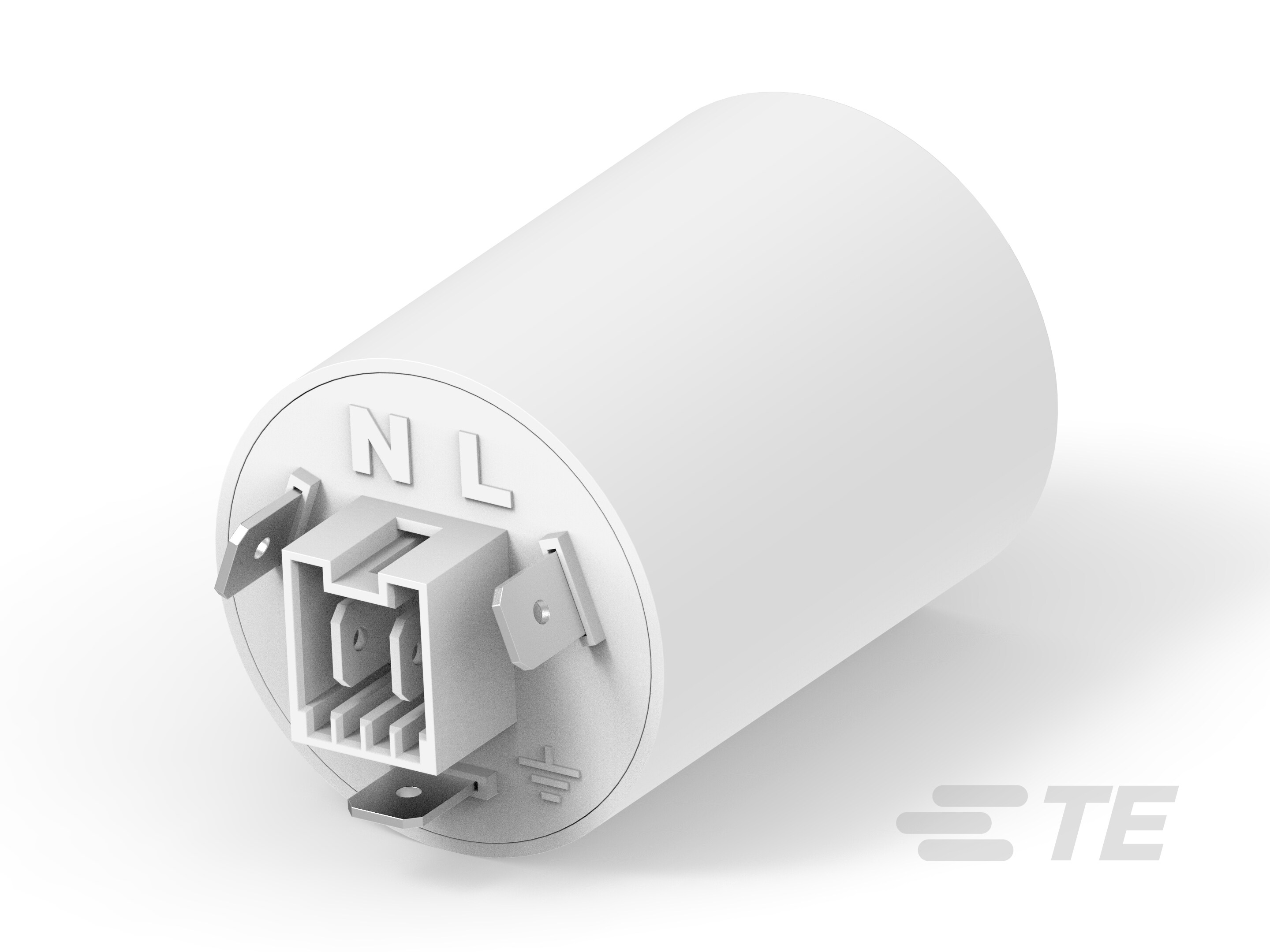

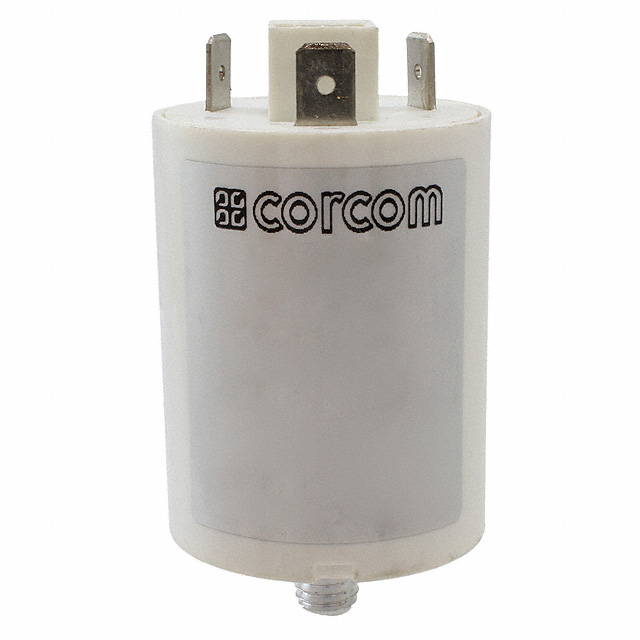

LINE FILTER 250VAC 16A CHASSIS
| Part | Applications | Filter Type | Current | Approval Agency | Frequency - Operating [Max] | Frequency - Operating [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Inductance | Mounting Type | Voltage - Rated AC | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | General Purpose | Single Phase | 16 A | CSA UR VDE | 60 Hz | 50 Hz | -10 °C | 40 °C | Quick Connect Threaded Post (M8) | 1.2 mH | Chassis Mount | 250 V | Single Stage |
 TE Connectivity Raychem Cable Protection | General Purpose | Single Phase | 16 A | CSA UR VDE | 60 Hz | 50 Hz | -10 °C | 40 °C | Quick Connect Threaded Post (M8) | 500 µH | Chassis Mount | 250 V | Single Stage |
 TE Connectivity Raychem Cable Protection | General Purpose | Single Phase | 16 A | CSA UR VDE | 60 Hz | 50 Hz | -10 °C | 40 °C | Quick Connect Threaded Post (M8) | 2 mH | Chassis Mount | 250 V | Single Stage |
