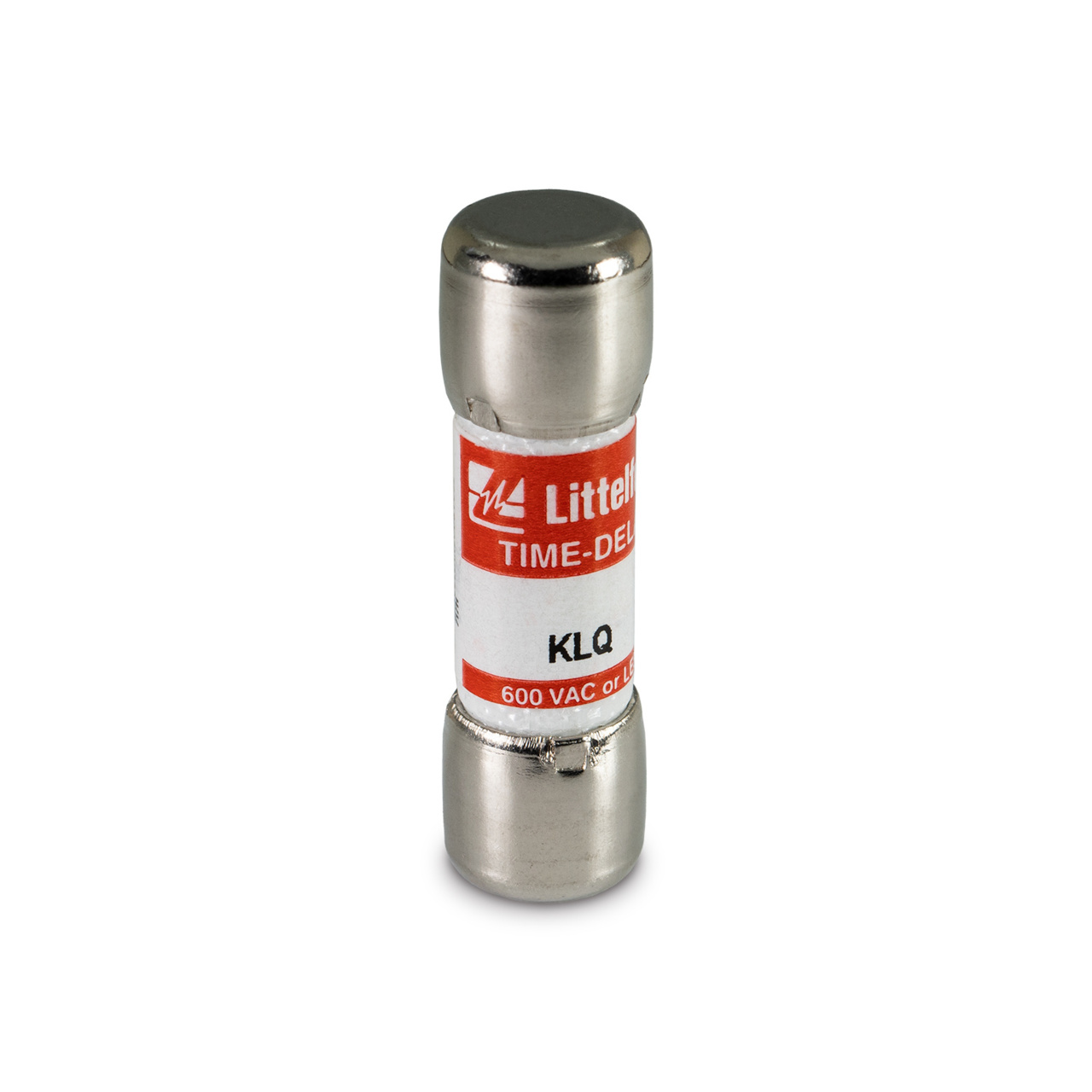

FUS 600V T/D 13/32x1 3/8 6A MIDGET
Description
AI
KLQ006 is a Midget fuse with an ampere rating of 6 and increased time-delay capability.
Beta
⌘K
FUS 600V T/D 13/32x1 3/8 6A MIDGET
FUS 600V T/D 13/32x1 3/8 6A MIDGET
| Part | Fuse Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Approval Agency | Package / Case | Package / Case [y] | Package / Case [x] | Mounting Type | DC Cold Resistance | Current Rating (Amps) | Applications | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Cartridge | -55 °C | 125 °C | 600 VAC | 10.31 mm | 1.375 " | 0.406 in | 34.93 mm | CE UL | 5AG | 38 mm | 10 mm | Requires Holder | 0.0571 Ohms | 6 A | Electrical Industrial | Slow Blow |
