LDD-500 Series

Catalog

LED DRIVER CC BUCK 2-52V 500MA

Part	Type	Voltage - Output [Max]	Voltage - Output [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Package / Case	Topology	Features	Mounting Type	Approval Agency	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Ratings	Termination Style

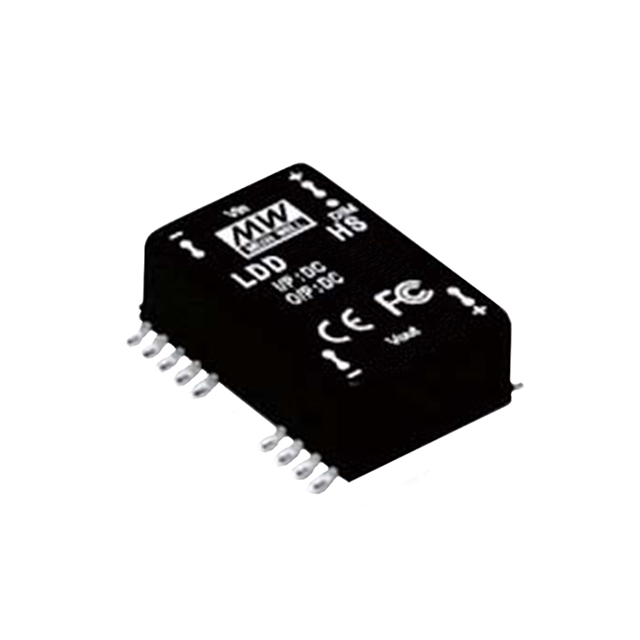

MEAN WELL USA Inc. LDD-500HS	Constant Current	52 V	2 V	1	56 V	9 V	96 %	0.45 in	0.8 "	1.25 in	31.8 mm	20.3 mm	11.4 mm	85 °C	-40 C	PWM	24-SMD Module 18 Leads	Buck	OTP Remote On/Off SCP	Surface Mount	CE	500 mA
MEAN WELL USA Inc. LDD-500H	Constant Current	52 V	2 V	1	56 V	9 V	97 %	0.48 "	0.8 "	1.25 in	31.8 mm			85 °C	-40 C	PWM	24-DIP Module 9 Leads	Buck	OTP Remote On/Off SCP	Through Hole	CE	500 mA	12.2 mm	20.3 mm

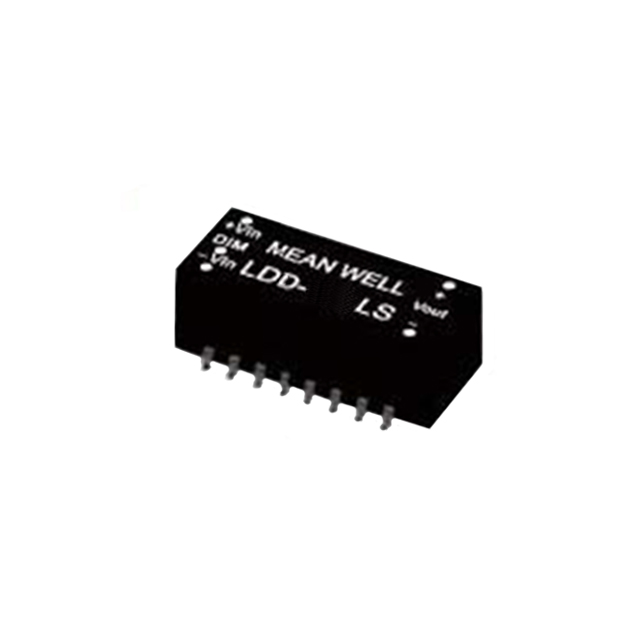

MEAN WELL USA Inc. LDD-500LS	Constant Current	28 V	2 V	1	32 V	9 V	95 %	0.37 in	0.41 "	1 in	25.4 mm			85 °C	-40 C	PWM	16-SMD Module	Buck	OTP Remote On/Off SCP	Surface Mount	CE	500 mA	9.3 mm	10.5 mm

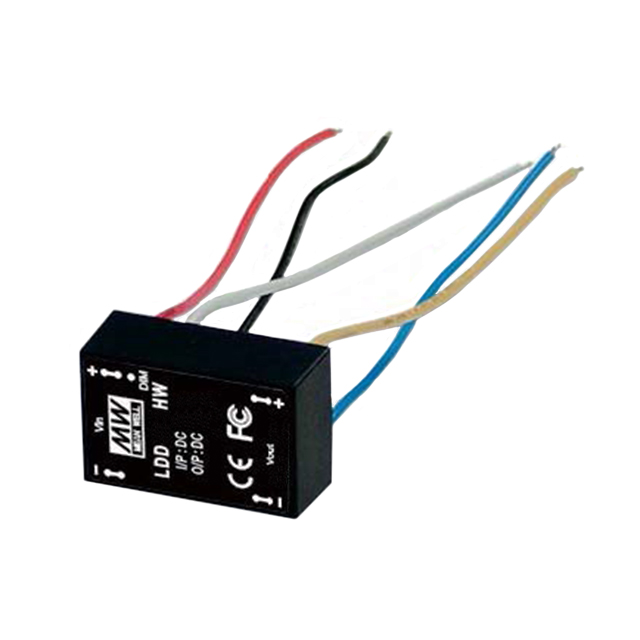

MEAN WELL USA Inc. LDD-500HW	Constant Current	52 V	2 V	1	56 V	9 V	97 %	0.48 "	0.8 "	1.25 in	31.8 mm			85 °C	-40 C	PWM		Buck	OTP Remote On/Off SCP	Chassis Mount	CE	500 mA	12.2 mm	20.3 mm	IP67	Wire Leads
