G3T29A Series

Catalog

SWITCH TOGGLE ON OFF (ON) DPDT ROUND LEVER GULL WING 0.1A 28VAC 28VDC 0.4VA PC MOUNT WITH BRACKET STICK

Part	Actuator Material	Electrical Life	Voltage Rating - AC	Actuator Length [x]	Features	Bushing Thread	Actuator Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage Rating - DC	Current Rating (Amps)	Illumination	Circuit	Mounting Type

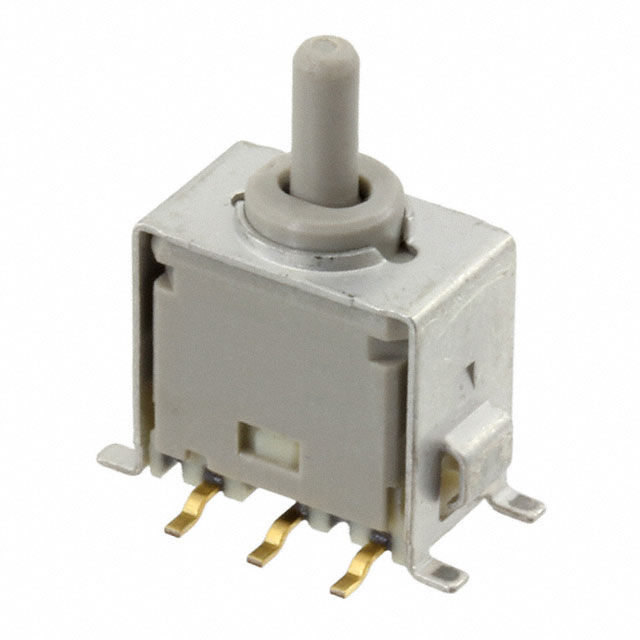

NKK Switches G3T29AB-S	Polyphenylene Sulfide (PPS)	50000 Cycles	28 V	3.81 mm	Process Sealed	Unthreaded	Standard Round	On-Off-Mom	85 °C	-30 ░C	Gull Wing	28 V	0.4 VA	Non-Illuminated	DPDT	Surface Mount
NKK Switches G3T29AP	Polyphenylene Sulfide (PPS)	50000 Cycles	28 V	3.81 mm	Process Sealed	Unthreaded	Standard Round	On-Off-Mom	85 °C	-30 ░C	Gull Wing	28 V	0.4 VA	Non-Illuminated	DPDT	Surface Mount

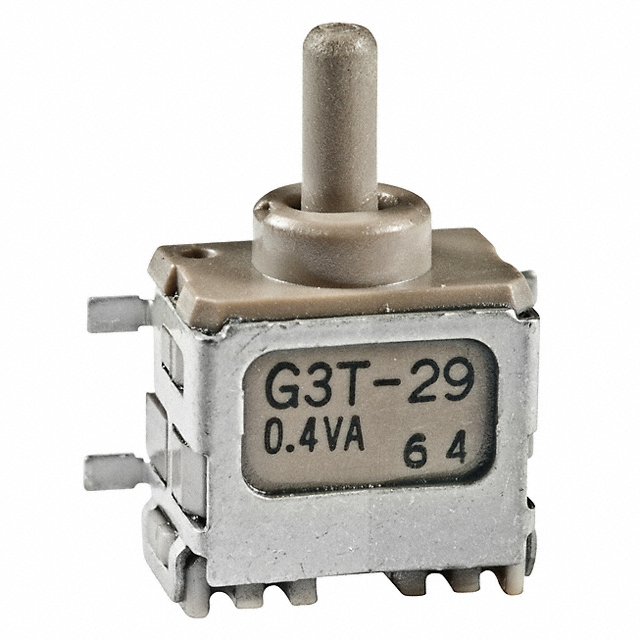

NKK Switches G3T29AH-R	Polyphenylene Sulfide (PPS)	50000 Cycles	28 V	3.81 mm	Process Sealed	Unthreaded	Standard Round	On-Off-Mom	85 °C	-30 ░C	Gull Wing	28 V	0.4 VA	Non-Illuminated	DPDT	Right Angle Surface Mount
