3103-2 Series

Catalog

CONN PC PIN CIRC 0.040DIA GOLD

Part	Mounting Type	Terminal Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Termination	Length - Overall [x]	Length - Overall [x]	Insulation	Length - Above Flange	Length - Above Flange	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange	Contact Material	Terminal Style	Board Thickness	Board Thickness	Length - Below Flange [x]	Length - Below Flange [x]

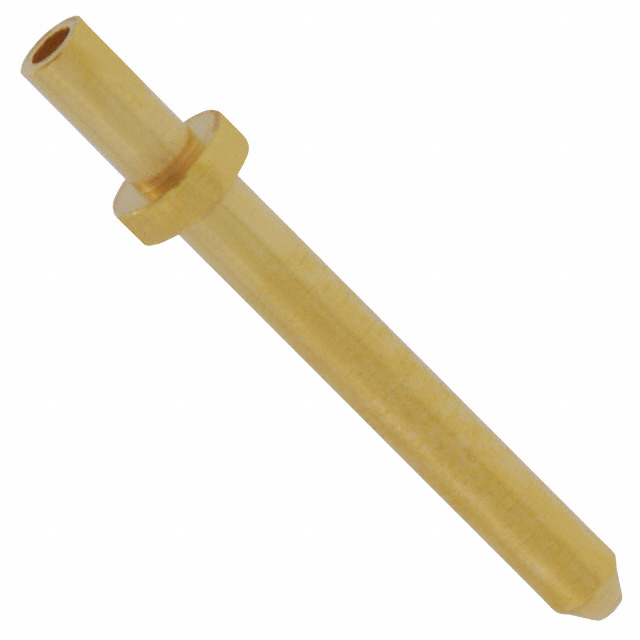

Mill-Max Manufacturing Corp. 3103-2-00-21-00-00-08-0	Through Hole	PC Pin	20 µin	0.51 µm	0.043 in	1.09 mm	Gold	Swage	0.402 "	10.2 mm	Non-Insulated	0.3 in	7.62 mm	1.77 mm	0.07 in	0.04 in	1.02 mm	Brass Alloy	Single End	1.57 mm	0.062 "	2.08 mm	0.082 "

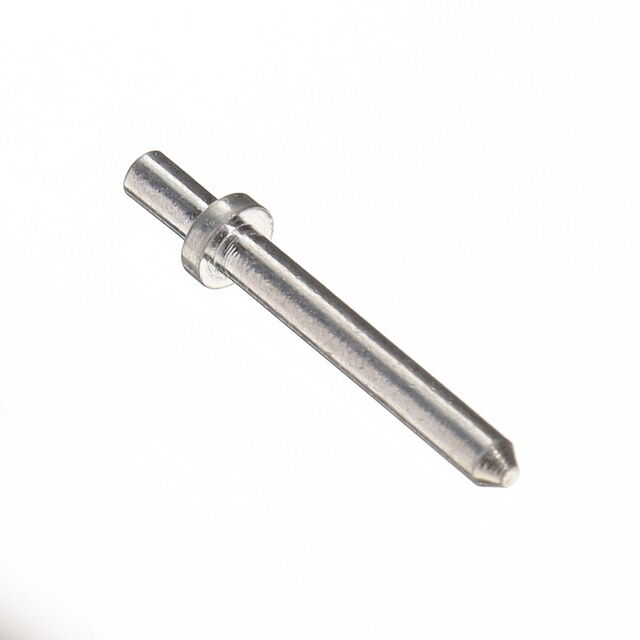

Mill-Max Manufacturing Corp. 3103-2-00-01-00-00-08-0	Through Hole	PC Pin	200 Áin	5.08 Ám	0.043 in	1.09 mm	Tin-Lead	Swage	0.402 "	10.2 mm	Non-Insulated	0.3 in	7.62 mm	1.77 mm	0.07 in	0.04 in	1.02 mm	Brass Alloy	Single End	1.57 mm	0.062 "	2.08 mm	0.082 "

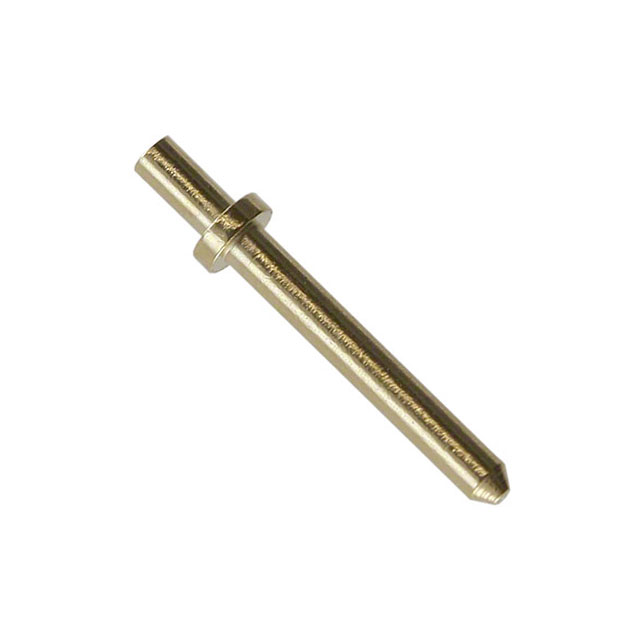

Mill-Max Manufacturing Corp. 3103-2-00-15-00-00-08-0	Through Hole	PC Pin	10 Áin	0.25 Ám	0.043 in	1.09 mm	Gold	Swage	0.402 "	10.2 mm	Non-Insulated	0.3 in	7.62 mm	1.77 mm	0.07 in	0.04 in	1.02 mm	Brass Alloy	Single End	1.57 mm	0.062 "	2.08 mm	0.082 "

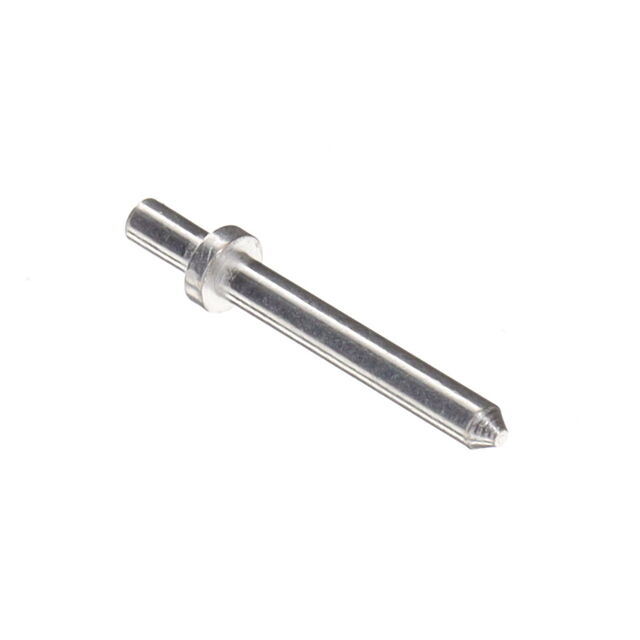

Mill-Max Manufacturing Corp. 3103-2-00-80-00-00-08-0	Through Hole	PC Pin	200 Áin	5.08 Ám	0.043 in	1.09 mm	Tin	Swage	0.402 "	10.2 mm	Non-Insulated	0.3 in	7.62 mm	1.78 mm	0.07 in	0.04 in	1.02 mm	Brass Alloy	Single End	1.57 mm	0.062 "	2.08 mm	0.082 "
