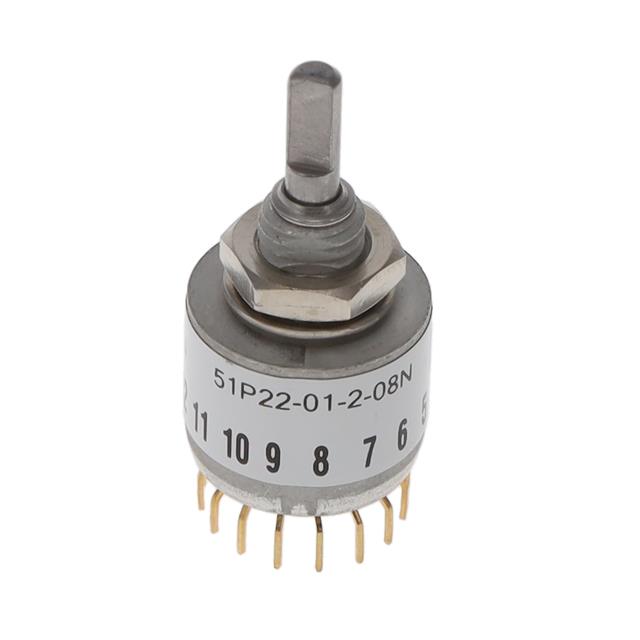

51P22 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
ELECTRICALSWITCH ROTARY NOTOVER5AMP
| Part | Panel Cutout Dimensions [diameter] | Number of Poles per Deck | Actuator Type | Mounting Type | Actuator Length [x] | Depth Behind Panel [custom] | Contact Timing | Index Stops | Number of Positions | Contact Finish | Angle of Throw | Voltage Rating - DC | Termination Style | Number of Decks [custom] | Current Rating (Amps) | Voltage Rating - AC | Circuit per Deck |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 6.45 mm | 1 | Flatted (3.17mm Dia) | Panel Mount Through Hole | 9.53 mm | 13.64 mm | Non-Shorting (BBM) | Fixed | 2 | Gold | 22.5 ° | 28 V | PC Pin | 1 | 150 mA 200 mA | 115 V | SPDT |
Grayhill Inc. | 6.45 mm | 1 | Flatted (3.17mm Dia) | Panel Mount Through Hole | 9.53 mm | 13.64 mm | Non-Shorting (BBM) | Fixed | 12 | Gold | 22.5 ° | 28 V | PC Pin | 1 | 150 mA 200 mA | 115 V | SP12T |
Grayhill Inc. | 6.45 mm | 1 | Flatted (3.17mm Dia) | Panel Mount Through Hole | 9.53 mm | 13.64 mm | Shorting (MBB) | Fixed | 5 | Gold | 22.5 ° | 28 V | PC Pin | 1 | 150 mA 200 mA | 115 V | SP5T |
Grayhill Inc. | 1 | Flatted (3.17mm Dia) | Panel Mount Through Hole | 9.53 mm | 13.64 mm | Non-Shorting (BBM) | Fixed | 6 | Gold | 22.5 ° | 28 V | PC Pin | 1 | 150 mA 200 mA | 115 V | SP6T | |
Grayhill Inc. | 6.45 mm | 1 | Flatted (3.17mm Dia) | Panel Mount Through Hole | 9.53 mm | 13.64 mm | Shorting (MBB) | Fixed | 10 | Gold | 22.5 ° | 28 V | PC Pin | 1 | 150 mA 200 mA | 115 V | SP10T |
Grayhill Inc. | 1 | Flatted (3.17mm Dia) | Panel Mount Through Hole | 9.53 mm | 13.64 mm | Shorting (MBB) | Fixed | 6 | Gold | 22.5 ° | 28 V | PC Pin | 1 | 150 mA 200 mA | 115 V | SP6T | |
Grayhill Inc. | 6.45 mm | 2 | Flatted (3.17mm Dia) | Panel Mount Through Hole | 9.53 mm | 13.64 mm | Non-Shorting (BBM) | Fixed | 4 | Gold | 22.5 ° | 28 V | PC Pin | 1 | 150 mA 200 mA | 115 V | DP4T |
Grayhill Inc. | 2 | Flatted (3.17mm Dia) | Panel Mount Through Hole | 9.53 mm | 13.64 mm | Non-Shorting (BBM) | Fixed | 6 | Gold | 22.5 ° | 28 V | PC Pin | 1 | 150 mA 200 mA | 115 V | DP6T | |
Grayhill Inc. | 6.45 mm | 1 | Flatted (3.17mm Dia) | Panel Mount Through Hole | 9.53 mm | 13.64 mm | Non-Shorting (BBM) | Fixed | 15 | Gold | 22.5 ° | 28 V | PC Pin | 1 | 150 mA 200 mA | 115 V | SP15T |
 Grayhill Inc. | 6.45 mm | 2 | Flatted (3.17mm Dia) | Panel Mount Through Hole | 9.53 mm | 13.64 mm | Non-Shorting (BBM) | Fixed | 8 | Gold | 22.5 ° | 28 V | PC Pin | 1 | 150 mA 200 mA | 115 V | DP8T |
