NGE Series

Catalog

+15V0.8A;20AWG/150CM

Part	No Load Power Consumption	Region Utilized	Power (Watts)	Efficiency	Polarization	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Approval Agency	Form	Standard Number	Input Type	Current - Output (Max) [Max]	Applications	Output Connector [x]	Output Connector [diameter]	Output Connector	Voltage - Output	Cord Length	Cord Length
MEAN WELL USA Inc. NGE12U15-P1J	75 mW 750 mW	North America	12 W	Level VI	Positive Center	2.17 "	55 mm	28 mm	48 mm	1.89 in	1.1 in	-30 ░C	70 °C	264 VAC	90 VAC	NEMA 1-15P	CB cULus cURus FCC PSE TUV	Wall Mount	60335-1 60601-1 62368-1	Fixed Blade	0.8 A	Household Appliances ITE (Commercial) Medical	11 mm	2.1 mm 5.5 mm	Barrel Plug	15 V	1.19 m	46.65 in
MEAN WELL USA Inc. NGE30U12-P1J	75 mW	North America	30 Watts	Level VI	Positive Center	2.44 "	62 mm	65 mm	30 mm	1.18 "	2.56 "	-30 ░C	70 °C	264 VAC	80 VAC	NEMA 1-15P	CB cULus cURus FCC PSE TUV	Wall Mount	60335-1 60601-1 62368-1	Fixed Blade	2.5 A	Household Appliances ITE (Commercial) Medical	11 mm	2.1 mm 5.5 mm	Barrel Plug	12 V	1.2 m	47 in
MEAN WELL USA Inc. NGE12E15-P1J	75 mW	Europe	12 W	Level VI	Positive Center	2.17 "	55 mm	28 mm	48 mm	1.89 in	1.1 in	-30 ░C	70 °C	264 VAC 370 VDC	80 VAC 113 VDC	CEE 7/16	CB CE EAC	Wall Mount	60335-1 60601-1 62368-1	Fixed Blade	0.8 A	Household Appliances ITE (Commercial) Medical	11 mm	2.1 mm 5.5 mm	Barrel Plug	15 V	1.5 m	59 in
MEAN WELL USA Inc. NGE65E18-P1J	75 mW	Europe	65 W	Level VI	Positive Center	2.44 "	62 mm	65 mm	30 mm	1.18 "	2.56 "	-30 ░C	70 °C	264 VAC	80 VAC	KSC 8305	CB CE EAC	Wall Mount	60335-1 60601-1 62368-1	Fixed Blade	3.62 A	Household Appliances ITE (Commercial) Medical	11 mm	2.1 mm 5.5 mm	Barrel Plug	18 V	1.5 m	59 in

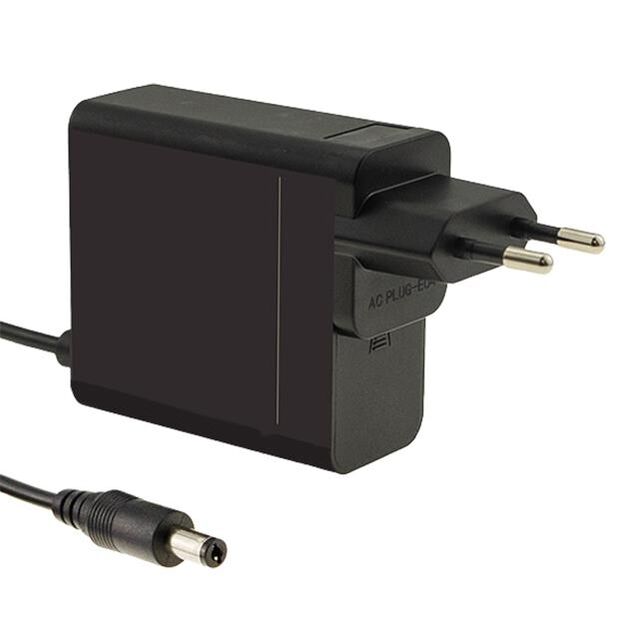

MEAN WELL USA Inc. NGE30E05-P1J	75 mW	Europe	20 W	Level VI	Positive Center	2.44 "	62 mm	65 mm	30 mm	1.18 "	2.56 "	-30 ░C	70 °C	264 VAC	80 VAC	KSC 8305	CB CE EAC	Wall Mount	60335-1 60601-1 62368-1	Fixed Blade	4 A	Household Appliances ITE (Commercial) Medical	11 mm	2.1 mm 5.5 mm	Barrel Plug	5 V	1.2 m	47 in
MEAN WELL USA Inc. NGE65E48-P1J	75 mW	Europe	65 W	Level VI	Positive Center	2.44 "	62 mm	65 mm	30 mm	1.18 "	2.56 "	-30 ░C	70 °C	264 VAC	80 VAC	KSC 8305	CB CE EAC	Wall Mount	60335-1 60601-1 62368-1	Fixed Blade	1.36 A	Household Appliances ITE (Commercial) Medical	11 mm	2.1 mm 5.5 mm	Barrel Plug	48 V	1.5 m	59 in
MEAN WELL USA Inc. NGE45U09-P1J	75 mW	North America	41 W	Level VI	Positive Center	2.44 "	62 mm	65 mm	30 mm	1.18 "	2.56 "	-30 ░C	70 °C	264 VAC	80 VAC	NEMA 1-15P	CB cULus cURus FCC PSE TUV	Wall Mount	60335-1 60601-1 62368-1	Fixed Blade	4.5 A	Household Appliances ITE (Commercial) Medical	11 mm	2.1 mm 5.5 mm	Barrel Plug	9 V	1 m	39 in
MEAN WELL USA Inc. NGE30I24-P1J	75 mW	International	30 Watts	Level VI	Positive Center	2.44 "	62 mm	65 mm	30 mm	1.18 "	2.56 "	-30 ░C	70 °C	264 VAC	80 VAC	Multi-Blade (Sold Separately)	AS/NZS CB CCC CE cULus cURus EAC FCC PSE TUV UKCA		60335-1 60601-1 62368-1	Multi-Blade (Sold Separately)	1.25 A	Household Appliances ITE (Commercial) Medical	11 mm	2.1 mm 5.5 mm	Barrel Plug	24 V	1.5 m	59 in
MEAN WELL USA Inc. NGE18E24-P1J	75 mW	Europe	18 W	Level VI	Positive Center	2.17 "	55 mm	28 mm	48 mm	1.89 in	1.1 in	-30 ░C	70 °C	264 VAC 370 VDC	80 VAC 113 VDC	KSC 8305	CB CE EAC	Wall Mount	60335-1 60601-1 62368-1	Fixed Blade	750 mA	Household Appliances ITE (Commercial) Medical	11 mm	2.1 mm 5.5 mm	Barrel Plug	24 V	1.5 m	59 in
MEAN WELL USA Inc. NGE90E24-P1J	75 mW	Europe	90 W	Level VI	Positive Center	2.44 "	62 mm	85.5 mm	30 mm	1.18 "	3.37 in	-30 ░C	70 °C	264 VAC	80 VAC	KSC 8305	CB CE EAC	Wall Mount	60335-1 60601-1 62368-1	Fixed Blade	3.75 A	Household Appliances ITE (Commercial) Medical	11 mm	2.1 mm 5.5 mm	Barrel Plug	24 V	1.2 m	47 in
