MAX11103 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
IC ADC 12BIT SAR 10UMAX
| Part | Number of Inputs | Reference Type | Architecture | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Mounting Type | Package / Case | Package / Case | Number of A/D Converters | Number of Bits | Data Interface | Configuration | Supplier Device Package | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Ratio - S/H:ADC | Operating Temperature [Max] | Operating Temperature [Min] | Input Type | Sampling Rate (Per Second) | Supplied Contents | Power (Typ) @ Conditions | Input Range [Max] | Input Range [Min] | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 2 | External | SAR | 3.6 V | 2.2 V | Surface Mount | 0.118 in 3 Lead | 10-MSOP 10-TFSOP Exposed Pad | 1 | 12 bits | SPI | MUX-S/H-ADC | 10-uMAX-EP | 2.2 V | 3.6 V | 1:1 | 125 °C | -40 °C | Single Ended | 3 M | |||||

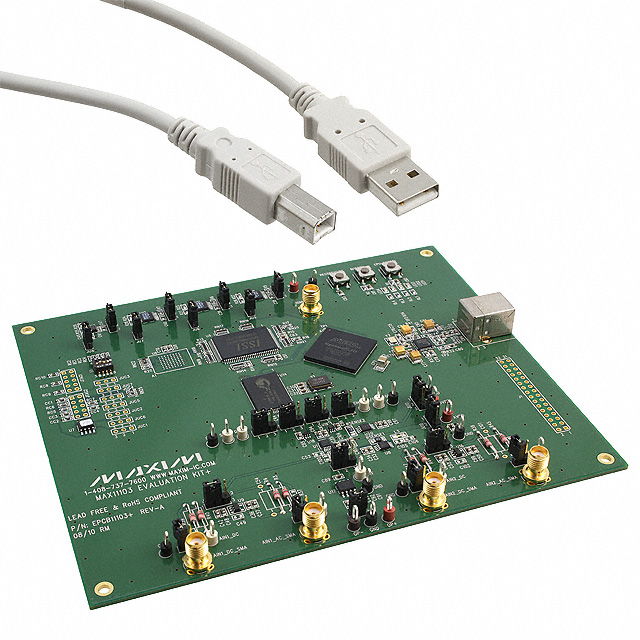

 Analog Devices Inc./Maxim Integrated | 1 | 12 bits | MICROWIRE™ QSPI™ Serial SPI™ | 3 M | Board(s) | 8.3 mW | VREF | 0 | MAX11103 | ||||||||||||||||
Analog Devices Inc./Maxim Integrated | 2 | External | SAR | 3.6 V | 2.2 V | Surface Mount | 0.118 in 3 Lead | 10-MSOP 10-TFSOP Exposed Pad | 1 | 12 bits | SPI | MUX-S/H-ADC | 10-uMAX-EP | 2.2 V | 3.6 V | 1:1 | 125 °C | -40 °C | Single Ended | 3 M |
