MB-V09-530 Series

Catalog

BUZZER PIEZO 35.8MM PNL MNT

Part	Technology	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Termination	Port Location	Current - Supply [Min]	Current - Supply [Max]	Frequency	Driver Circuitry	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Sound Pressure Level (SPL)	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Input Type	Operating Mode	Ingress Protection	Termination	Termination	Size / Dimension [diameter]
Floyd Bell Inc MB-V09-530-W(M)	Piezo	5 VDC	30 V	UL UR	Wire Leads	Top	2 mA	20 mA	2.9 kHz	Indicator Internally Driven	Panel Mount	35.8 mm	1.409 in	95 dB	1.48 in	37.59 mm	DC	Medium Pulse	IP68 - Dust Tight Waterproof
Floyd Bell Inc MB-V09-530-Q(F)D	Piezo	5 VDC	30 V	UL UR	Quick Connect Tab	Top	2 mA	20 mA	2.9 kHz	Indicator Internally Driven	Panel Mount		35.81 mm	95 dB	1.48 in	37.59 mm	DC	Fast Pulse Single Tone	IP68 - Dust Tight Waterproof	0.25 "	6.35 mm	1.41 in
Floyd Bell Inc MB-V09-530-S(F)	Piezo	5 VDC	30 V	UL UR	Screw Terminal Quick Connect Tab	Top	2 mA	20 mA	2.9 kHz	Indicator Internally Driven	Panel Mount		35.81 mm	95 dB	1.48 in	37.59 mm	DC	Fast Pulse	IP68 - Dust Tight Waterproof	0.25 "	6.35 mm	1.41 in
Floyd Bell Inc MB-V09-530-Q(M)	Piezo	5 VDC	30 V	UL UR	Quick Connect Tab	Top	2 mA	20 mA	2.9 kHz	Indicator Internally Driven	Panel Mount		35.81 mm	95 dB	1.48 in	37.59 mm	DC	Medium Pulse	IP68 - Dust Tight Waterproof	0.25 "	6.35 mm	1.41 in
Floyd Bell Inc MB-V09-530-Q(S)	Piezo	5 VDC	30 V	UL UR	Quick Connect Tab	Top	2 mA	20 mA	2.9 kHz	Indicator Internally Driven	Panel Mount		35.81 mm	95 dB	1.48 in	37.59 mm	DC	Pulse Slow	IP68 - Dust Tight Waterproof	0.25 "	6.35 mm	1.41 in
Floyd Bell Inc MB-V09-530-S(U)	Piezo	5 VDC	30 V	UL UR	Screw Terminal Quick Connect Tab	Top	2 mA	20 mA	2.9 kHz	Indicator Internally Driven	Panel Mount	35.8 mm	1.409 in	95 dB	1.48 in	37.59 mm	DC	Fast Pulse	IP68 - Dust Tight Waterproof	0.25 "	6.35 mm
Floyd Bell Inc MB-V09-530-W(F)	Piezo	5 VDC	30 V	UL UR	Wire Leads	Top	2 mA	20 mA	2.9 kHz	Indicator Internally Driven	Panel Mount		35.81 mm	95 dB	1.48 in	37.59 mm	DC	Fast Pulse	IP68 - Dust Tight Waterproof			1.41 in

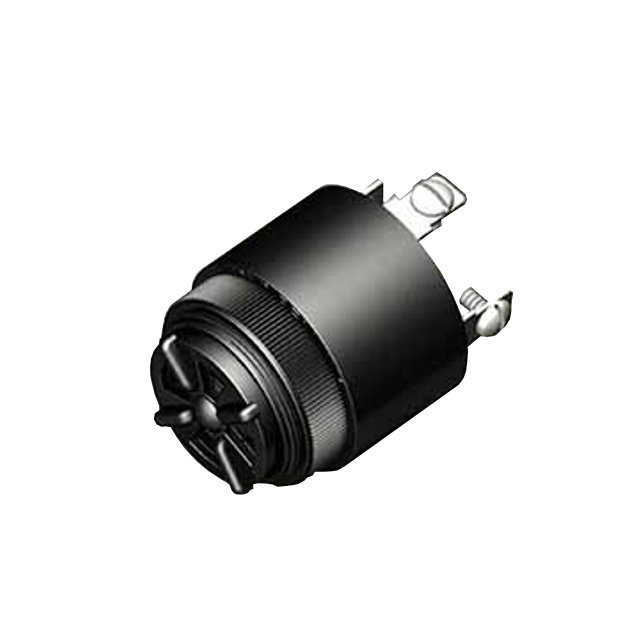

Floyd Bell Inc MB-V09-530-S(M)D	Piezo	5 VDC	30 V	UL UR	Screw Terminal Quick Connect Tab	Top	2 mA	20 mA	2.9 kHz	Indicator Internally Driven	Panel Mount		35.81 mm	95 dB	1.48 in	37.59 mm	DC	Medium Pulse Single Tone	IP68 - Dust Tight Waterproof	0.25 "	6.35 mm	1.41 in
Floyd Bell Inc MB-V09-530-S(F)D	Piezo	5 VDC	30 V	UL UR	Screw Terminal Quick Connect Tab	Top	2 mA	20 mA	2.9 kHz	Indicator Internally Driven	Panel Mount		35.81 mm	95 dB	1.48 in	37.59 mm	DC	Fast Pulse Single Tone	IP68 - Dust Tight Waterproof	0.25 "	6.35 mm	1.41 in

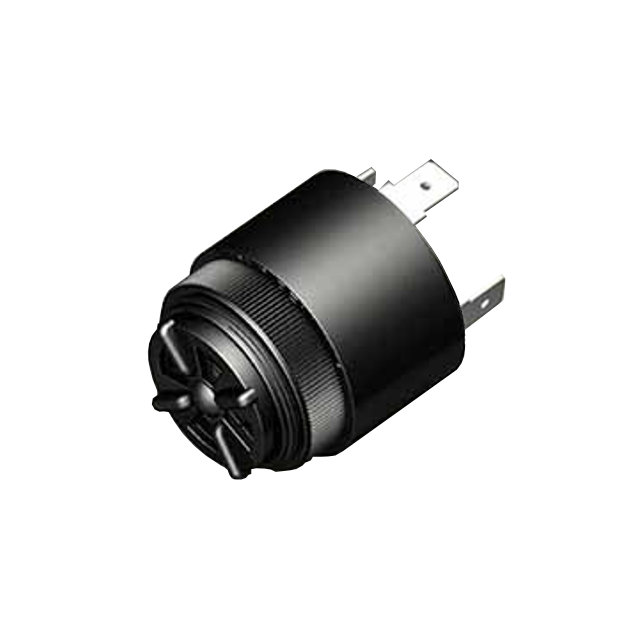

Floyd Bell Inc MB-V09-530-Q(M)D	Piezo	5 VDC	30 V	UL UR	Quick Connect Tab	Top	2 mA	20 mA	2.9 kHz	Indicator Internally Driven	Panel Mount	35.8 mm	1.409 in	95 dB	1.48 in	37.59 mm	DC	Medium Pulse Single Tone	IP68 - Dust Tight Waterproof	0.25 "	6.35 mm
