0908-5 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

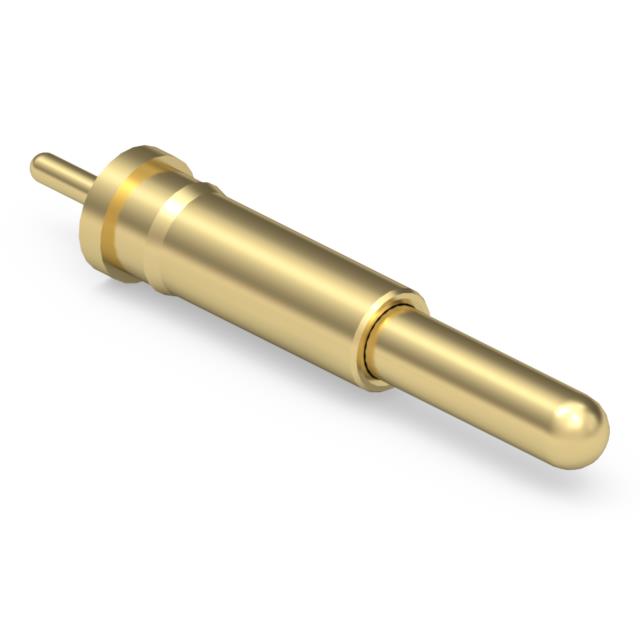

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Pad Layout Dimension | Pad Layout Dimension | Minimum Working Height | Minimum Working Height | Mounting Type | Contact Finish | Contact Type | Operating Force - Mid Compression | Mating Cycles | Recommended Working Height | Recommended Working Height | Operating Force - Initial | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2 A 5.2 A | 20 µin | 0.51 µm | 0.072 in | 1.83 mm | 0.295 in | 7.49 mm | Through Hole | Gold | Sleeve & Plunger (Pogo Pins) | 60 gf | 1000000 | 0.322 in | 8.19 mm | 10 gf | 8.89 mm | 0.35 in | Brass Alloy | 0.042 in | 1.07 mm |
