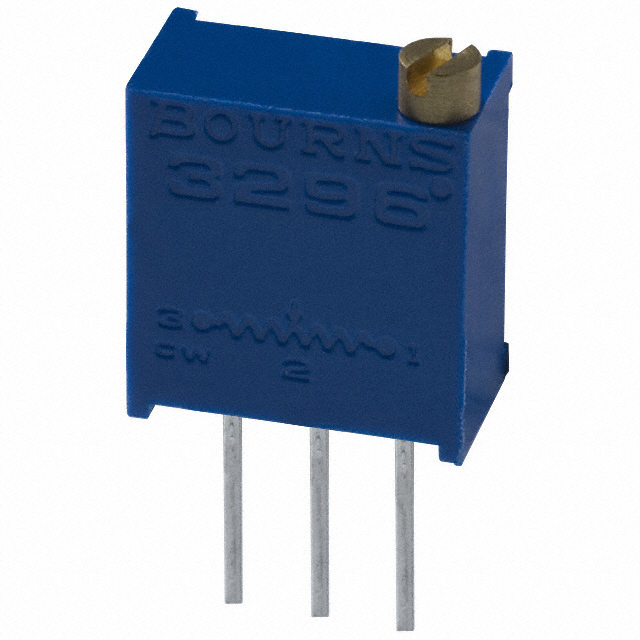

3296W Series

Catalog

TRIMMER - 3/8 SQ MT CERMET ROHS COMPLIANT: NO

Part	Temperature Coefficient	Number of Turns	Power (Watts)	Power (Watts)	Tolerance	Resistive Material	Adjustment Type	Resistance	Termination Style	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Bourns Inc. 3296W-1-302	100 ppm/°C	25	0.5 W	0.5 W	10 %	Cermet	Top Adjustment	3 kOhms	PC Pins	Through Hole	9.53 mm	4.83 mm	0.19 in	0.375 in
Bourns Inc. 3296W-1-101LF	100 ppm/°C	25	0.5 W	0.5 W	10 %	Cermet	Top Adjustment	100 Ohms	PC Pins	Through Hole	9.53 mm	4.83 mm	0.19 in	0.375 in
Bourns Inc. 3296W-1-205A	100 ppm/°C	25	0.5 W	0.5 W	10 %	Cermet	Top Adjustment	2 MOhms	PC Pins	Through Hole	9.53 mm	4.83 mm	0.19 in	0.375 in
Bourns Inc. 3296W-1-501A	100 ppm/°C	25	0.5 W	0.5 W	10 %	Cermet	Top Adjustment	0.5 kOhms	PC Pins	Through Hole	9.53 mm	4.83 mm	0.19 in	0.375 in
Bourns Inc. 3296W-1-201A	100 ppm/°C	25	0.5 W	0.5 W	10 %	Cermet	Top Adjustment	200 Ohms	PC Pins	Through Hole	9.53 mm	4.83 mm	0.19 in	0.375 in
Bourns Inc. 3296W-1-504R	100 ppm/°C	25	0.5 W	0.5 W	10 %	Cermet	Top Adjustment		PC Pins	Through Hole	9.53 mm	4.83 mm	0.19 in	0.375 in
Bourns Inc. 3296W-1-203R	100 ppm/°C	25	0.5 W	0.5 W	10 %	Cermet	Top Adjustment	20 kOhms	PC Pins	Through Hole	9.53 mm	4.83 mm	0.19 in	0.375 in
Bourns Inc. 3296W-1-473	100 ppm/°C	25	0.5 W	0.5 W	10 %	Cermet	Top Adjustment	47000 Ohms	PC Pins	Through Hole	9.53 mm	4.83 mm	0.19 in	0.375 in
Bourns Inc. 3296W-1-104RLF	100 ppm/°C	25	0.5 W	0.5 W	10 %	Cermet	Top Adjustment	100 kOhms	PC Pins	Through Hole	9.53 mm	4.83 mm	0.19 in	0.375 in
Bourns Inc. 3296W-1-205LF	100 ppm/°C	25	0.5 W	0.5 W	10 %	Cermet	Top Adjustment	2 MOhms	PC Pins	Through Hole	9.53 mm	4.83 mm	0.19 in	0.375 in
