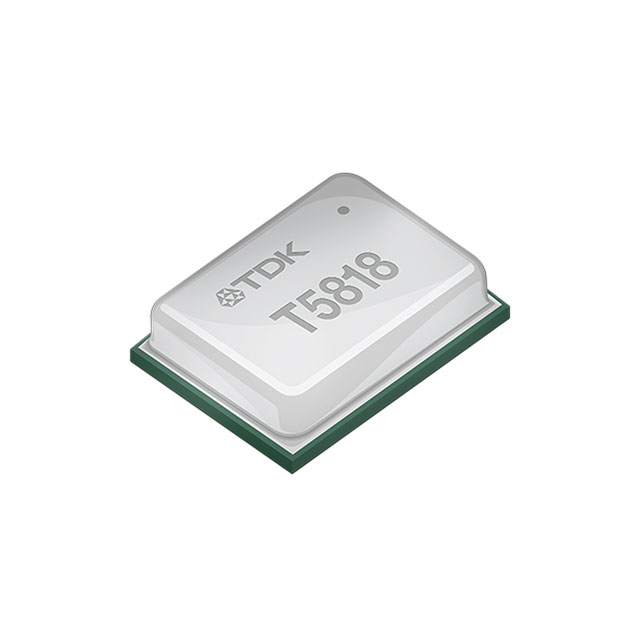

MMICT5818 Series
Manufacturer: TDK Corporation
Beta
⌘K
MIC MEMS DIGITAL PDM OMNI -41DB
| Part | Voltage - Rated | Height (Max) [z] | Height (Max) [z] | Output Type | Current - Supply | Termination | S/N Ratio | Direction | Type | Port Location | Voltage Range [Min] | Voltage Range [Max] | Shape | Sensitivity | Frequency Range [Max] | Frequency Range [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 1.8 V | 0.039 in | 0.98 mm | Digital PDM | 220 µA | Solder Pads | 66 dB | Omnidirectional | MEMS (Silicon) | Bottom | 1.65 V | 3.63 V | Rectangular | -41 dB | 20 kHz | 40 Hz | 2.65 mm | 0.104 in | 3.5 mm | 0.138 in |
