UB25SKW Series

Catalog

SWITCH PUSHBUTTON DPDT 5A 125V

Part	Electrical Life	Mechanical Life	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Mounting Type	Illumination Type, Color	Color - Actuator/Cap	Circuit	Actuator Marking	Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Illumination Voltage (Nominal)	Features	Actuator Type	Voltage Rating - DC

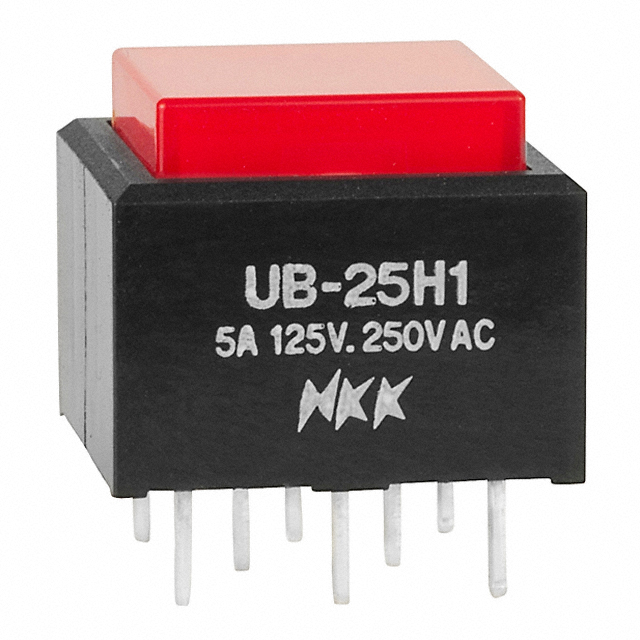

NKK Switches UB25SKW035C-CB	10000 Cycles	1000000 Cycles	5 A	125 V	On-Mom	Through Hole	LED Red	Red	DPDT	No Marking	Illuminated Standard	50 °C	-25 °C	PC Pin	1.85 VDC	Spot LED	Button Square	30 V
NKK Switches UB25SKW035C-JJ	10000 Cycles	1000000 Cycles	5 A	125 V	On-Mom	Through Hole	LED Red	Clear	DPDT	No Marking	Illuminated Standard	50 °C	-25 °C	PC Pin	1.85 VDC	Spot LED	Button Square	30 V
NKK Switches UB25SKW035C-AB	10000 Cycles	1000000 Cycles	5 A	125 V	On-Mom	Through Hole	LED Red	Black	DPDT	No Marking	Illuminated Standard	50 °C	-25 °C	PC Pin	1.85 VDC	Spot LED	Button Square	30 V

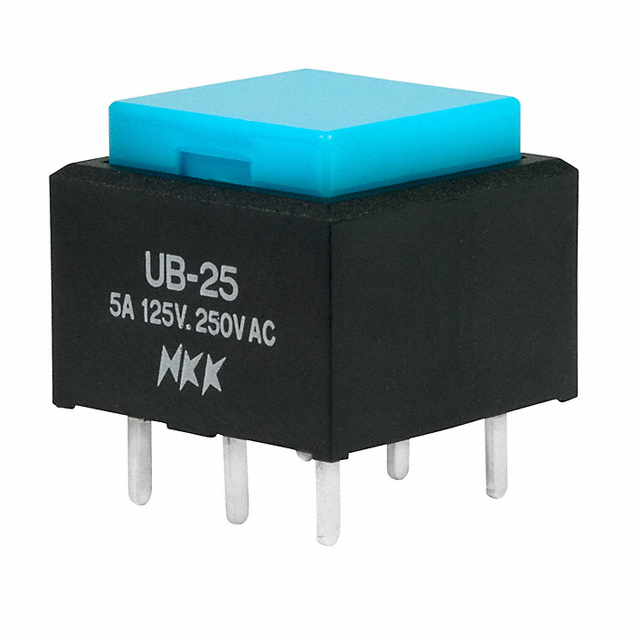

NKK Switches UB25SKW03N-G	10000 Cycles	1000000 Cycles	5 A	125 V	On-Mom	Through Hole		Blue	DPDT	No Marking	Standard	70 °C	-20 ░C	PC Pin		Stainless Steel	Button Square	30 V
NKK Switches UB25SKW035D-DD	10000 Cycles	1000000 Cycles	5 A	125 V	On-Mom	Through Hole	Amber LED	Amber	DPDT	No Marking	Illuminated Standard	50 °C	-25 °C	PC Pin	2 VDC	Stainless Steel	Button Square	30 V
NKK Switches UB25SKW03N-A	10000 Cycles	1000000 Cycles	5 A	125 V	On-Mom	Through Hole		Black	DPDT	No Marking	Standard	70 °C	-20 ░C	PC Pin		Stainless Steel	Button Square	30 V
NKK Switches UB25SKW035F-FJ	10000 Cycles	1000000 Cycles	5 A	125 V	On-Mom	Through Hole	Green LED	Green	DPDT	No Marking	Illuminated Standard	50 °C	-25 °C	PC Pin	2.1 VDC	Stainless Steel	Button Square	30 V

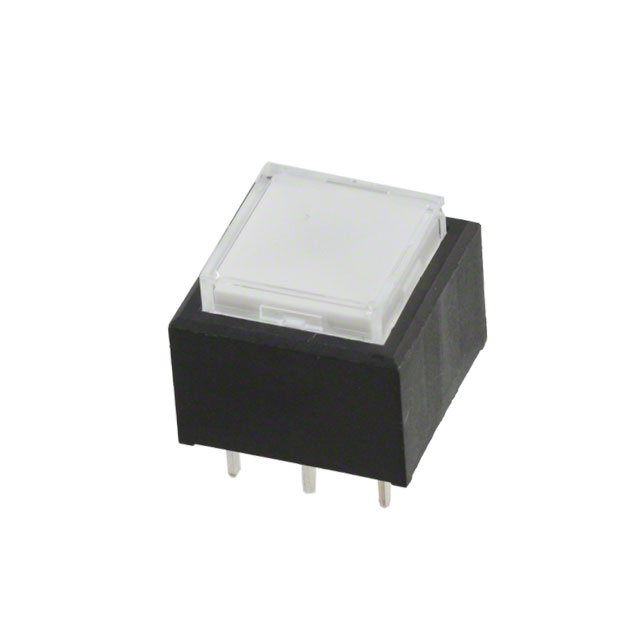

NKK Switches UB25SKW035C-JB	10000 Cycles	1000000 Cycles	5 A	125 V	On-Mom	Through Hole	LED Red	Clear	DPDT	No Marking	Illuminated Standard	50 °C	-25 °C	PC Pin	1.85 VDC	Spot LED	Button Square	30 V
NKK Switches UB25SKW035F-FB	10000 Cycles	1000000 Cycles	5 A	125 V	On-Mom	Through Hole	Green LED	Green	DPDT	No Marking	Illuminated Standard	50 °C	-25 °C	PC Pin	2.1 VDC	Stainless Steel	Button Square	30 V

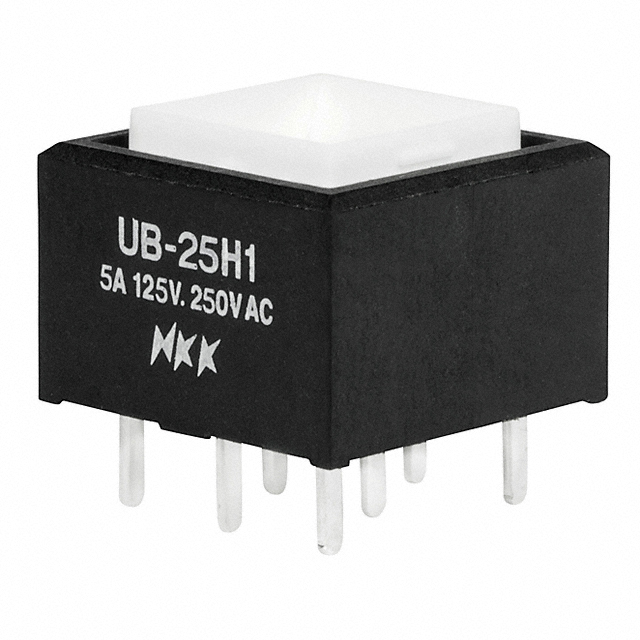

NKK Switches UB25SKW035C	10000 Cycles	1000000 Cycles	5 A	125 V	On-Mom	Through Hole	LED Red		DPDT	No Marking	Illuminated Standard	50 °C	-25 °C	PC Pin	1.85 VDC	Spot LED	Plunger for Cap	30 V
