SPHWHAHDNM271 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

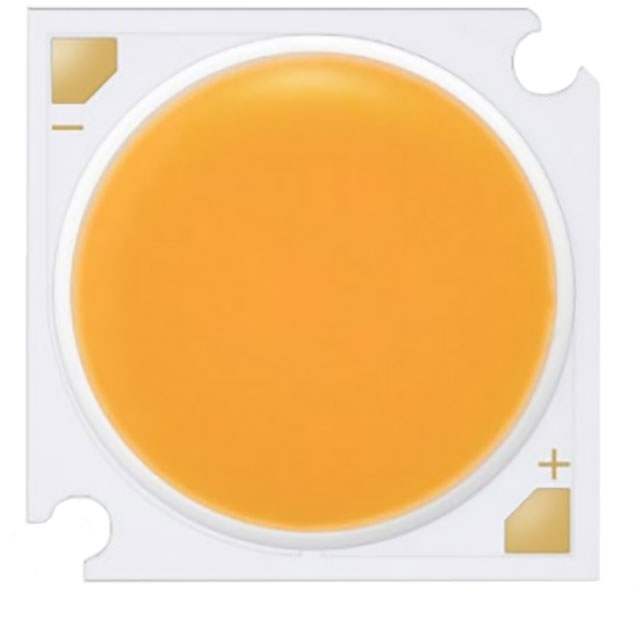

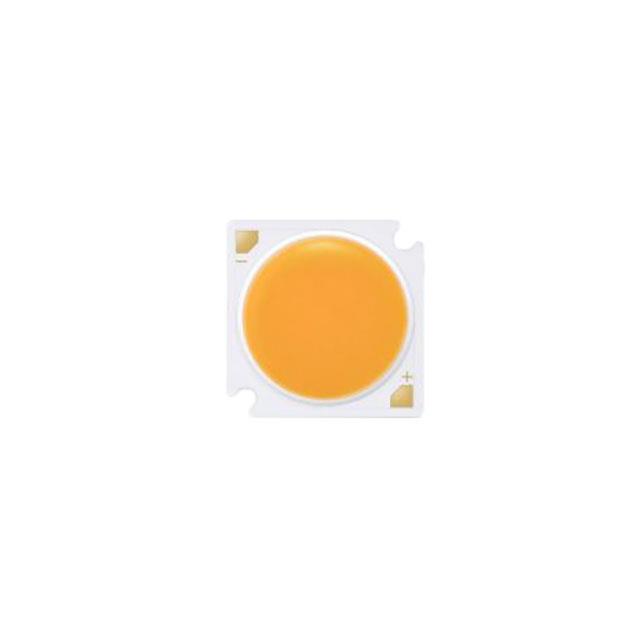

LED COB D GEN2 WARM WHT SQ 3500K

Part	Height [z]	Lumens/Watt @ Current - Test	Lens Type	Configuration	Temperature - Test	Current - Test	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	CCT (K)	CCT (K)	Voltage - Forward (Vf) (Typ)	Color	Current - Max [Max]	Type	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle
Samsung Semiconductor, Inc. SPHWHAHDNM271ZU3D2	1.5 mm	131 lm/W	Flat	Square	85 °C	1.62 A	90	22 mm	3500 K	3-Step MacAdam Ellipse	52 V	Warm White	4.14 A	Chip On Board (COB)	11004 lm	28 mm	28 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM271ZW3D3	1.5 mm	131 lm/W	Flat	Square	85 °C	1.62 A	90	22 mm	2700 K	3-Step MacAdam Ellipse	50 V	Warm White	4.14 A	Chip On Board (COB)		28 mm	28 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM271ZV3DB	1.5 mm	151 lm/W	Flat	Square	85 °C	1.62 A	90	22 mm	3000 K	3-Step MacAdam Ellipse	51.1 V	Warm White	3.24 A	Chip On Board (COB)	12468 lm	28 mm	28 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM271ZV3D2	1.5 mm	127 lm/W	Flat	Square	85 °C	1.62 A	90	22 mm	3000 K	3-Step MacAdam Ellipse	52 V	Warm White	4.14 A	Chip On Board (COB)	10731 lm	28 mm	28 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM271ZR3DC	1.5 mm	147 lm/W	Flat	Square	85 °C	1.62 A	90	22 mm	5000 K	3-Step MacAdam Ellipse		Cool White	3.24 A	Chip On Board (COB)	11974 lm	28 mm	28 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM271ZT3DB	1.5 mm	159 lm/W	Flat	Square	85 °C	1.62 A	90	22 mm	4000 K	3-Step MacAdam Ellipse	51.1 V	Neutral White	3.24 A	Chip On Board (COB)	13123 lm	28 mm	28 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM271ZR3DB	1.5 mm	159 lm/W	Flat	Square	85 °C	1.62 A	90	22 mm	5000 K	3-Step MacAdam Ellipse	51.1 V	Cool White	3.24 A	Chip On Board (COB)	13196 lm	28 mm	28 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM271ZT2D3	1.5 mm	145 lm/W	Flat	Square	85 °C	1.62 A	90	22 mm	4000 K	2-Step MacAdam Ellipse	50 V	Neutral White	4.14 A	Chip On Board (COB)	11766 lm	28 mm	28 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM271ZV2D2	1.5 mm	127 lm/W	Flat	Square	85 °C	1.62 A	90	22 mm	3000 K		52 V	Warm White	4.14 A	Chip On Board (COB)	10731 lm	28 mm	28 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM271ZV2D3	1.5 mm	138 lm/W	Flat	Square	85 °C	1.62 A	90	22 mm	3000 K		50 V	Warm White	4.14 A	Chip On Board (COB)	11195 lm	28 mm	28 mm	115 °
