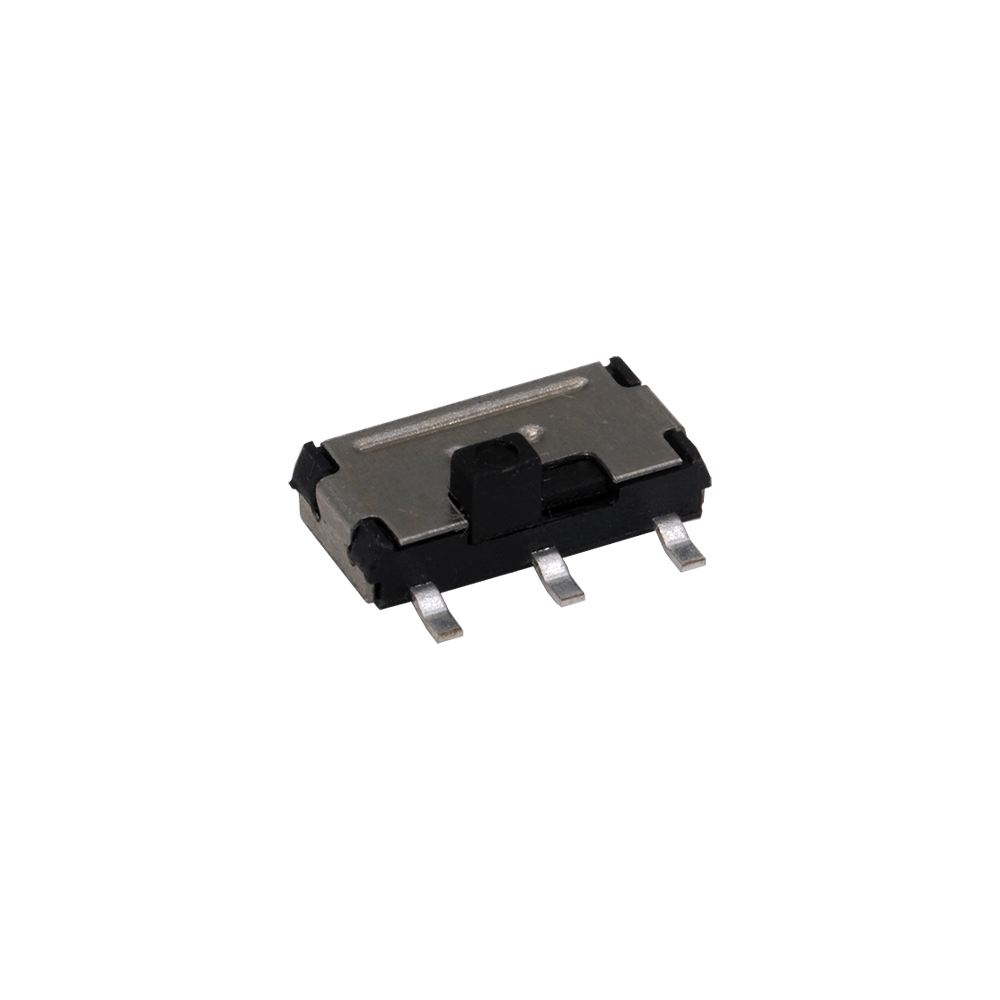

Miniature Slide Switch
Miniature Slide Switch
| Part | Contact Finish | Contact Material | Voltage Rating - DC | Actuator Type | Circuit | Termination Style | Switch Function | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Length [x] | Contact Timing | Actuator Material | Current Rating (Amps) | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Gold | Copper Alloy | 12 V | Standard | DPDT | Gull Wing | On-On | Surface Mount | 85 °C | -40 °C | 0.99 mm | Not Specified | Glass Filled Nylon 4/6 Polyamide (PA46) | 100 mA | 10000 Steps |
Littelfuse/Commercial Vehicle Products | Silver | Copper Alloy | 12 V | Standard | SP3T | Gull Wing | On-On-On | Surface Mount Right Angle | 60 °C | -10 °C | 1 mm | Not Specified | Glass Filled Nylon 4/6 Polyamide (PA46) | 100 mA | 10000 Steps |
Littelfuse/Commercial Vehicle Products | Silver | Copper Alloy | 12 V | Standard | DPDT | Gull Wing | On-On | Surface Mount | 60 °C | -10 °C | 1 mm | Not Specified | Glass Filled Nylon 4/6 Polyamide (PA46) | 100 mA | 10000 Steps |
Littelfuse/Commercial Vehicle Products | Gold | Copper Alloy | 12 V | Standard | SPDT | Gull Wing | On-On | Surface Mount Right Angle | 85 °C | -40 °C | 0.99 mm | Not Specified | Glass Filled Nylon 4/6 Polyamide (PA46) | 100 mA | 10000 Steps |
