THB0648 Series
Manufacturer: Delta Electronics
Beta
⌘K

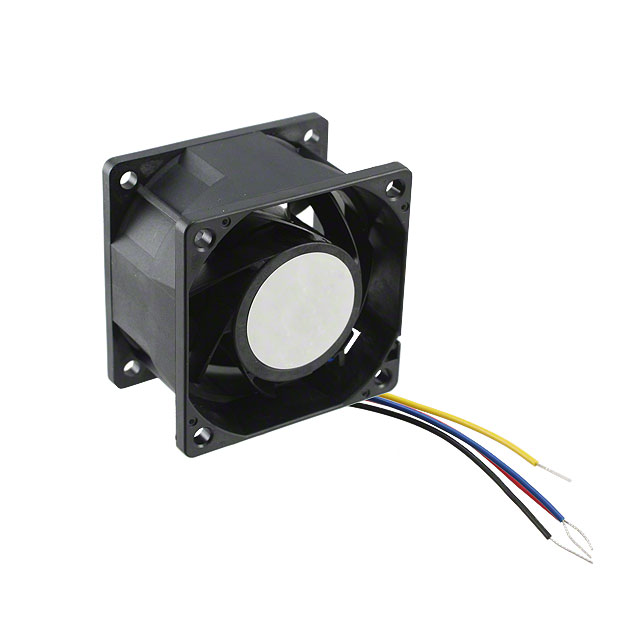

FAN AXIAL 60X38MM 48VDC WIRE
| Part | Current Rating (Amps) | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Material - Frame | Fan Type | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Noise | Width [y] | Weight | Weight | Approval Agency | Features | RPM | Power (Watts) | Air Flow | Air Flow | Size / Dimension [z] | Size / Dimension [x] | Bearing Type | Termination | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 0.34 A | Plastic | 36 VDC | 60 V | 70000 Hrs | Plastic | Tubeaxial | 48 VDC | 70 °C | -10 °C | 61.5 dB(A) | 38 mm | 130.18 g | 0.287 lb | CE cURus TUV | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 14700 RPM | 16.32 W | 68.6 CFM | 1.92 m³/min | 60 mm | 60 mm | Ball | 4 Wire Leads | 2.886 in H2O | 718.9 Pa |
