SI52111 Series
Manufacturer: Skyworks Solutions Inc.
Beta
⌘K

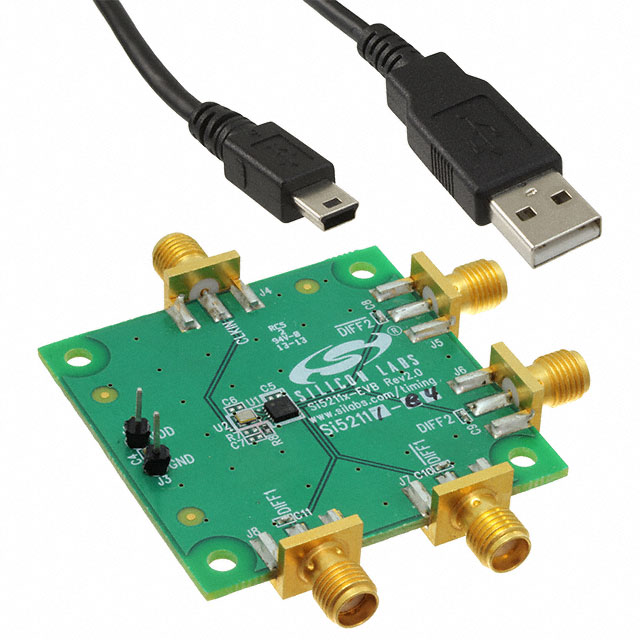

KIT EVAL SI52111-B6
| Part | Utilized IC / Part | Function | Contents | Type | Supplied Contents | Number of Circuits | Differential - Input:Output | Output | Supplier Device Package | Package / Case | Ratio - Input:Output [custom] | Voltage - Supply [Min] | Voltage - Supply [Max] | Input | Main Purpose | Operating Temperature [Max] | Operating Temperature [Min] | PLL | Mounting Type | Package / Case [custom] | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Skyworks Solutions Inc. | Si52111-B6 | Clock Generator | Board(s) | Timing | Board(s) | ||||||||||||||||
 Skyworks Solutions Inc. | 1 | No/Yes | HCSL | 10-TDFN (3x3) | 10-WFDFN Exposed Pad | 1:1 | 2.97 V | 3.63 V | Clock Crystal | PCI Express (PCIe) | 85 °C | -40 °C | Surface Mount | ||||||||
 Skyworks Solutions Inc. | 1 | No/Yes | HCSL | 8-TSSOP | 8-TSSOP | 1:1 | 2.97 V | 3.63 V | Clock Crystal | PCI Express (PCIe) | 85 °C | -40 °C | Surface Mount | 0.173 " | 4.4 mm | ||||||
Skyworks Solutions Inc. | 1 | No/Yes | HCSL | 8-TSSOP | 8-TSSOP | 1:1 | 2.97 V | 3.63 V | Clock Crystal | PCI Express (PCIe) | 85 °C | -40 °C | Surface Mount | 0.173 " | 4.4 mm | ||||||
Skyworks Solutions Inc. | 1 | No/Yes | HCSL | 10-TDFN (3x3) | 10-WFDFN Exposed Pad | 1:1 | 2.97 V | 3.63 V | Clock Crystal | PCI Express (PCIe) | 85 °C | -40 °C | Surface Mount | ||||||||
Skyworks Solutions Inc. | 1 | No/Yes | HCSL | 8-TSSOP | 8-TSSOP | 1:1 | 2.97 V | 3.63 V | Clock Crystal | PCI Express (PCIe) | 85 °C | -40 °C | Surface Mount | 0.173 " | 4.4 mm | ||||||
Skyworks Solutions Inc. | 1 | No/Yes | HCSL | 10-TDFN (3x3) | 10-WFDFN Exposed Pad | 1:1 | 2.97 V | 3.63 V | Clock Crystal | PCI Express (PCIe) | 85 °C | -40 °C | Surface Mount | ||||||||
Skyworks Solutions Inc. | 1 | No/Yes | HCSL | 8-TSSOP | 8-TSSOP | 1:1 | 2.97 V | 3.63 V | Clock Crystal | PCI Express (PCIe) | 85 °C | -40 °C | Surface Mount | 0.173 " | 4.4 mm | ||||||
Skyworks Solutions Inc. | |||||||||||||||||||||
 Skyworks Solutions Inc. | 1 | No/Yes | HCSL | 10-TDFN (3x3) | 10-WFDFN Exposed Pad | 1:1 | 2.97 V | 3.63 V | Clock Crystal | PCI Express (PCIe) | 85 °C | -40 °C | Surface Mount |
