SML-LX0404 Series

Catalog

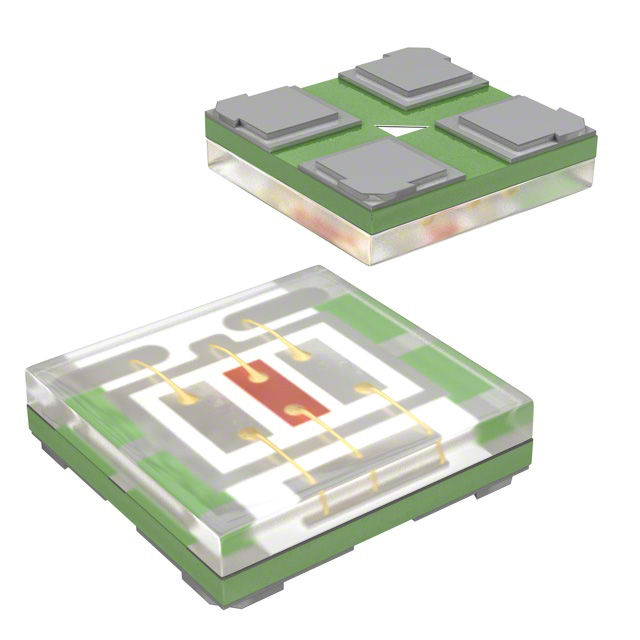

LED RGB CLEAR SMD

Part	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Supplier Device Package	Lens Transparency	Color	Height (Max) [z]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Lens Color	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Lens Size	Package / Case	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Configuration
Lumex Opto/Components Inc. SML-LX0404SIUPGUSB	632 nm	465 nm	518 nm	SMD	Clear	Blue Green Red	0.3 mm	2 mA	2 mA	2 mA	Colorless	Square with Flat Top	20 mcd	30 mcd	40 mcd	Surface Mount	1 mm	1 mm	120 °	1 mm	0404 (1010 Metric)	2.85 V	2.73 V	1.95 V	Common Anode
