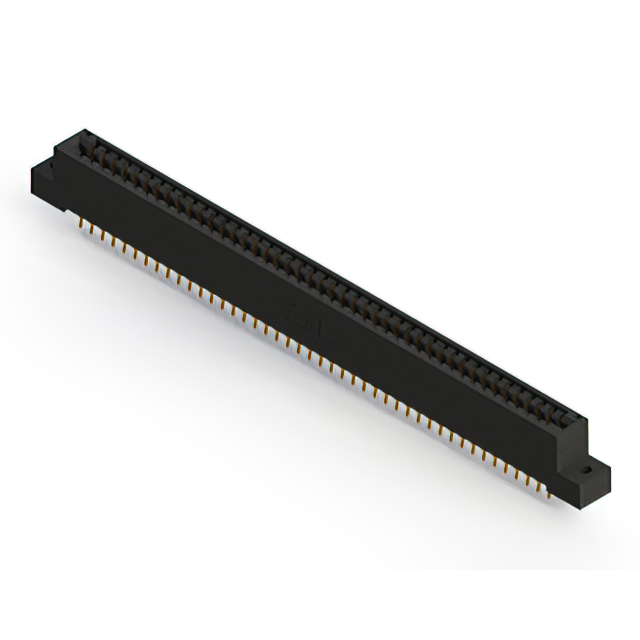

896-088 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 88POS 0.125
| Part | Termination Rows [custom] | Material - Insulation | Termination | Pitch | Pitch | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Number of Rows [custom] | Features | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Number of Positions/Bay/Row | Color | Contact Type | Read Out | Gender | Number of Positions | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 3.18 mm | 0.125 in | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Card Extender | 0.25 Ám | 10 Áin | 125 °C | -40 C | Non Specified - Dual Edge | 44 | Black | Cantilever | Dual | Female | 88 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Gold | Board Edge Straddle Mount |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Non Specified - Dual Edge | 44 | Black | Cantilever | Dual | Female | 88 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Gold | Through Hole | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | 3.18 mm | 0.125 in | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Card Extender | 0.25 Ám | 10 Áin | 125 °C | -40 C | Non Specified - Dual Edge | 44 | Black | Cantilever | Dual | Female | 88 | Gold | Board Edge Straddle Mount | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | 3.18 mm | 0.125 in | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Card Extender | 0.25 Ám | 10 Áin | 125 °C | -40 C | Non Specified - Dual Edge | 44 | Black | Cantilever | Dual | Female | 88 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Board Edge Straddle Mount | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 3.18 mm | 0.125 in | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Card Extender | 0.25 Ám | 10 Áin | 125 °C | -40 C | Non Specified - Dual Edge | 44 | Black | Cantilever | Dual | Female | 88 | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | Gold | Board Edge Straddle Mount |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Non Specified - Dual Edge | 44 | Black | Cantilever | Dual | Female | 88 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Through Hole | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Non Specified - Dual Edge | 44 | Black | Cantilever | Dual | Female | 88 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | Gold | Through Hole | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | 3.18 mm | 0.125 in | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Card Extender | 0.25 Ám | 10 Áin | 125 °C | -40 C | Non Specified - Dual Edge | 44 | Black | Cantilever | Dual | Female | 88 | 3.96 mm | 0.156 " | Gold | Board Edge Straddle Mount | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 3.18 mm | 0.125 in | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Non Specified - Dual Edge | 44 | Black | Cantilever | Dual | Female | 88 | 4-40 Threaded Insert Top Mount Opening | Gold | Right Angle Through Hole | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | 3.18 mm | 0.125 in | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Card Extender | 0.25 Ám | 10 Áin | 125 °C | -40 C | Non Specified - Dual Edge | 44 | Black | Cantilever | Dual | Female | 88 | 3.25 mm | 0.128 " | Gold | Board Edge Straddle Mount |
