052610 Series

Manufacturer: Molex

Catalog

CONN VERT 25POS 1MM SMD

Part	Mounting Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Material Flammability Rating	Voltage Rating	Cable End Type	Locking Feature	Contact Finish Thickness	Contact Finish Thickness	Actuator Material	Height Above Board	Height Above Board	Contact Material	FFC, FCB Thickness	Connector/Contact Type	Mating Cycles	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions	Actuator Color	Flat Flex Type	Housing Color	Number of Positions
Molex 0526102571	Surface Mount	Solder	85 °C	-40 °C	Polyamide (PA46) Nylon 4/6	UL94 V-0	125 VDC	Tapered	Slide Lock	39.4 Áin	1 Ám	Polyphenylene Sulfide (PPS)	0.226 in	5.74 mm	Phosphor Bronze	0.3 mm	Contacts Vertical - 1 Sided	30	0.039 in	1 mm	Tin Bismuth

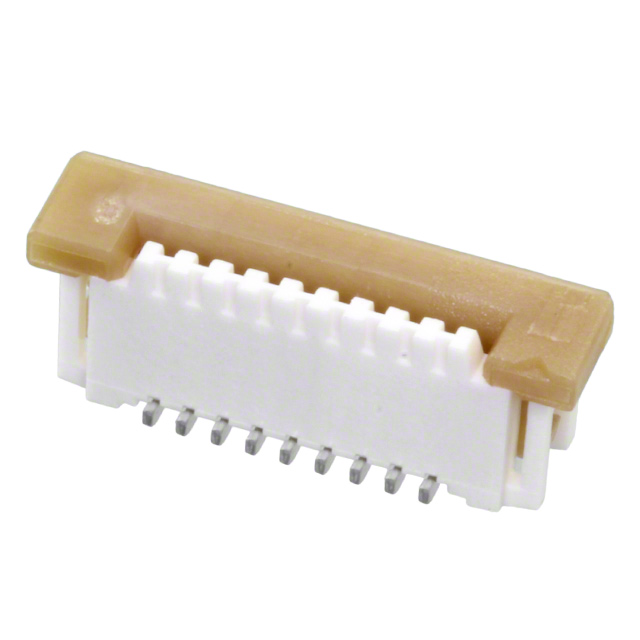

Molex 0526100933	Surface Mount	Solder	85 °C	-40 °C	Polyamide (PA) Nylon Glass Filled	UL94 V-0	125 VDC	Tapered	Slide Lock	39.4 Áin	1 Ám	Polyphenylene Sulfide (PPS) Glass Filled	0.226 in	5.74 mm	Phosphor Bronze	0.3 mm	Contacts Vertical - 1 Sided	30	0.039 in	1 mm	Tin Bismuth	9	Brown	FPC	White
Molex 0526101375	Surface Mount	Solder			Polyamide (PA46) Nylon 4/6	UL94 V-0		Tapered	Slide Lock			Polyphenylene Sulfide (PPS)	0.226 in	5.74 mm	Phosphor Bronze	0.3 mm	Contacts Vertical - 1 Sided		0.039 in	1 mm	Tin Bismuth	13		FPC

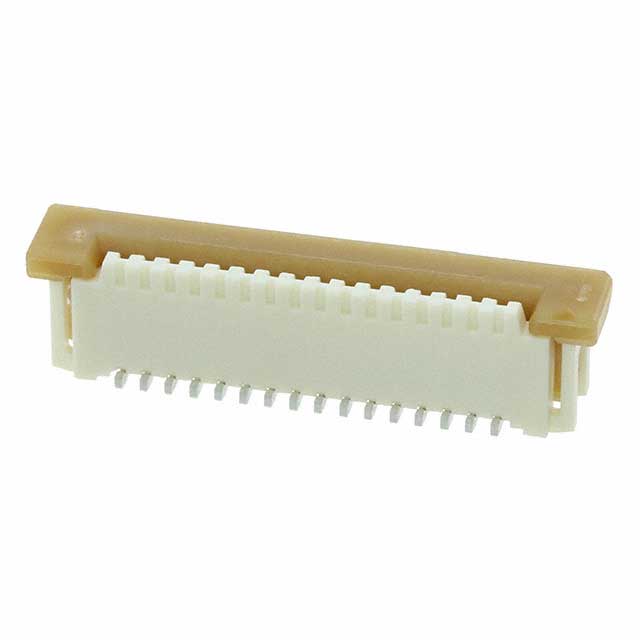

Molex 0526101672	Surface Mount	Solder	85 °C	-40 °C	Polyamide (PA46) Nylon 4/6	UL94 V-0	125 VDC	Tapered	Slide Lock			Polyphenylene Sulfide (PPS)	0.226 in	5.74 mm	Phosphor Bronze	0.3 mm	Contacts Vertical - 1 Sided	30	0.039 in	1 mm	Gold			FPC		16
Molex 0526102171	Surface Mount	Solder	85 °C	-40 °C	Polyamide (PA46) Nylon 4/6	UL94 V-0	125 VDC	Tapered	Slide Lock	39.4 Áin	1 Ám	Polyphenylene Sulfide (PPS)	0.226 in	5.74 mm	Phosphor Bronze	0.3 mm	Contacts Vertical - 1 Sided	30	0.039 in	1 mm	Tin Bismuth	21

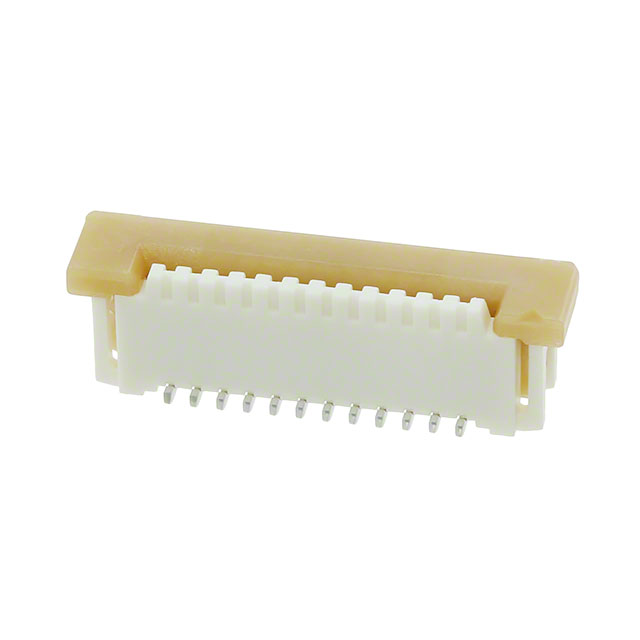

Molex 0526101271	Surface Mount	Solder	85 °C	-40 °C	Polyamide (PA46) Nylon 4/6	UL94 V-0	125 VDC	Tapered	Slide Lock	39.4 Áin	1 Ám	Polyphenylene Sulfide (PPS)	0.226 in	5.74 mm	Phosphor Bronze	0.3 mm	Contacts Vertical - 1 Sided	30	0.039 in	1 mm	Tin Bismuth	12
Molex 0526100690	Surface Mount	Solder	85 °C	-20 C	Polyamide (PA46) Nylon 4/6	UL94 V-0	125 VDC	Tapered	Slide Lock			Polyphenylene Sulfide (PPS)	0.226 in	5.74 mm	Phosphor Bronze	0.3 mm	Contacts Vertical - 1 Sided		0.039 in	1 mm	Tin	6		FPC

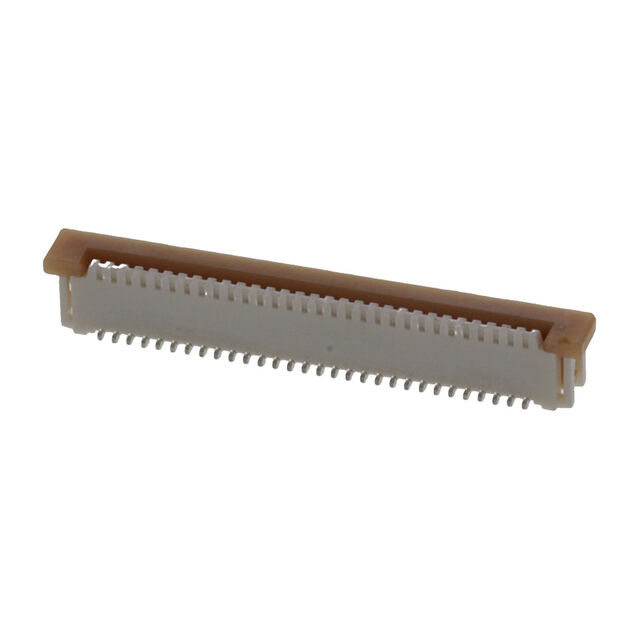

Molex 0526103075	Surface Mount	Solder			Polyamide (PA46) Nylon 4/6	UL94 V-0		Tapered	Slide Lock			Polyphenylene Sulfide (PPS)	0.226 in	5.74 mm	Phosphor Bronze	0.3 mm	Contacts Vertical - 1 Sided		0.039 in	1 mm	Tin Bismuth	30		FPC
Molex 0526100734	Surface Mount	Solder			Polyamide (PA) Nylon Glass Filled	UL94 V-0		Tapered	Slide Lock	39.4 Áin	1 Ám	Polyphenylene Sulfide (PPS) Glass Filled	0.226 in	5.74 mm	Phosphor Bronze	0.3 mm	Contacts Vertical - 1 Sided		0.039 in	1 mm	Tin Bismuth	7	Brown	FPC	White
Molex 0526101490	Surface Mount	Solder	85 °C	-20 C	Polyamide (PA46) Nylon 4/6	UL94 V-0	125 VDC	Tapered	Slide Lock			Polyphenylene Sulfide (PPS)	0.226 in	5.74 mm	Phosphor Bronze	0.3 mm	Contacts Vertical - 1 Sided		0.039 in	1 mm	Tin	14		FPC
