1437719 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONNECTOR: M9; SOCKET; MALE; PLATING: GOLD-PLATED; URATED: 60V; 3A

Part	Insert Material	Current Rating (Amps)	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Shielding	Orientation	Features	Material Flammability Rating	Mounting Type	Primary Material	Shell Material	Voltage Rating	Shell Finish	Mounting Feature	Number of Positions	Connector Type	Ingress Protection

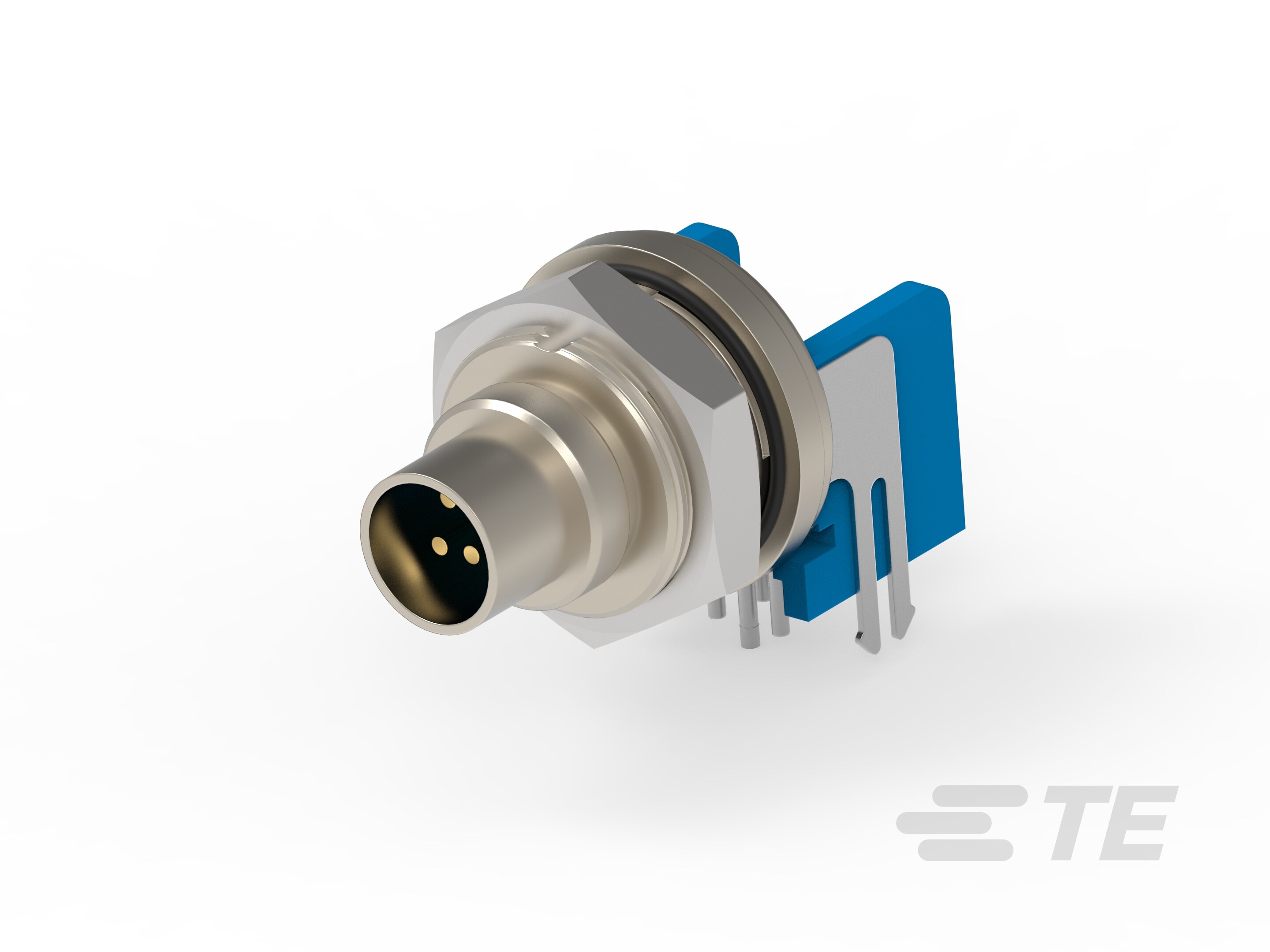

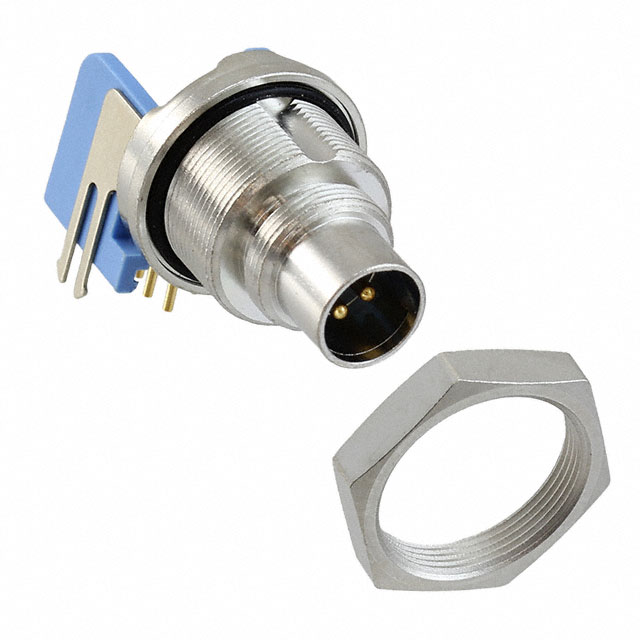

TE Connectivity AMP Connectors 5-1437719-1	Polybutylene Terephthalate (PBT)	3 A	Solder	85 °C	-40 C	Threaded	Shielded	Keyed	Board Lock	UL94 V-2	Panel Mount Right Angle Through Hole	Metal	Brass	60 VAC	Tribor	Bulkhead	5	Plug Male Pins	IP65 - Dust Tight Water Resistant

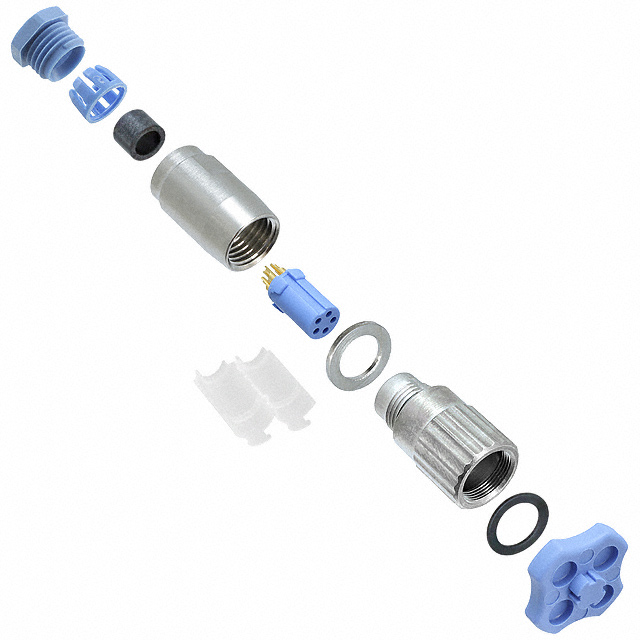

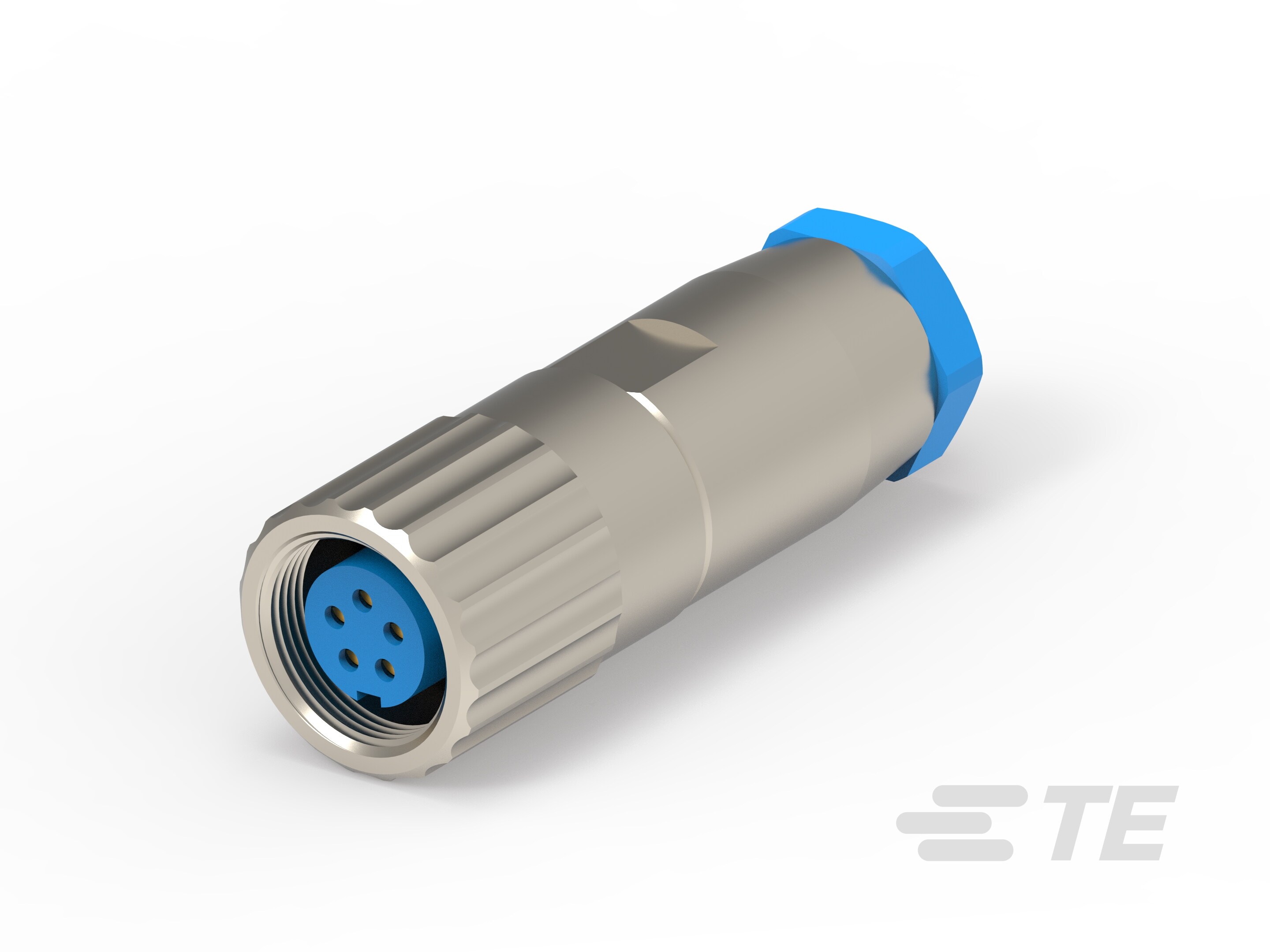

TE Connectivity AMP Connectors 3-1437719-6	Polybutylene Terephthalate (PBT)	3 A		85 °C	-40 C	Threaded	Shielded	Keyed	Strain Relief	UL94 V-2	Free Hanging (In-Line)	Metal	Brass	60 VAC	Tribor		5	Receptacle Female Sockets	IP65 - Dust Tight Water Resistant

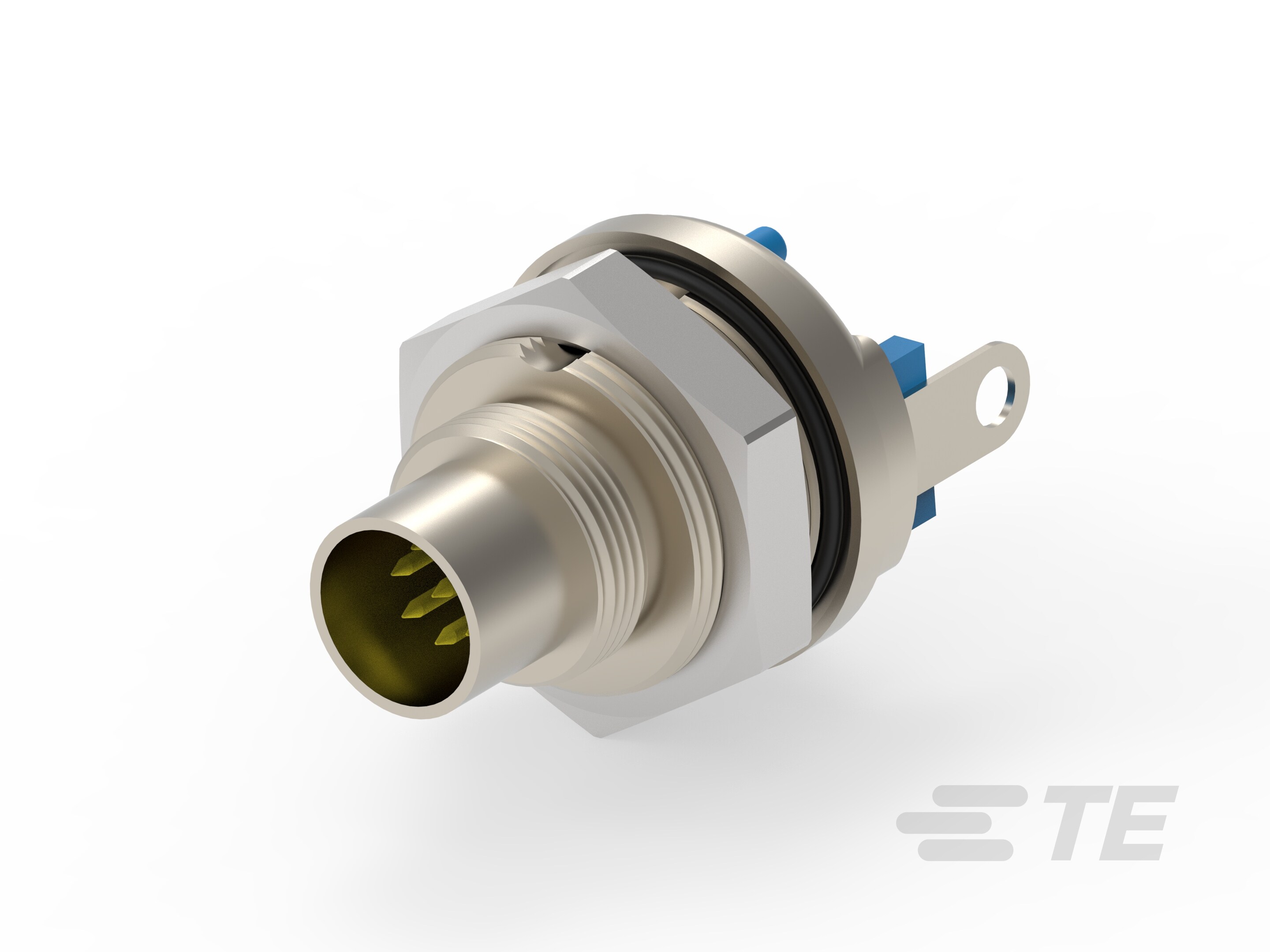

TE Connectivity AMP Connectors 9-1437719-3	Polybutylene Terephthalate (PBT)			85 °C	-40 C	Threaded	Shielded	Keyed		UL94 V-2	Panel Mount	Metal	Brass	60 VAC	Tribor	Bulkhead - Front Side Nut	8	Plug Male Pins	IP65 - Dust Tight Water Resistant

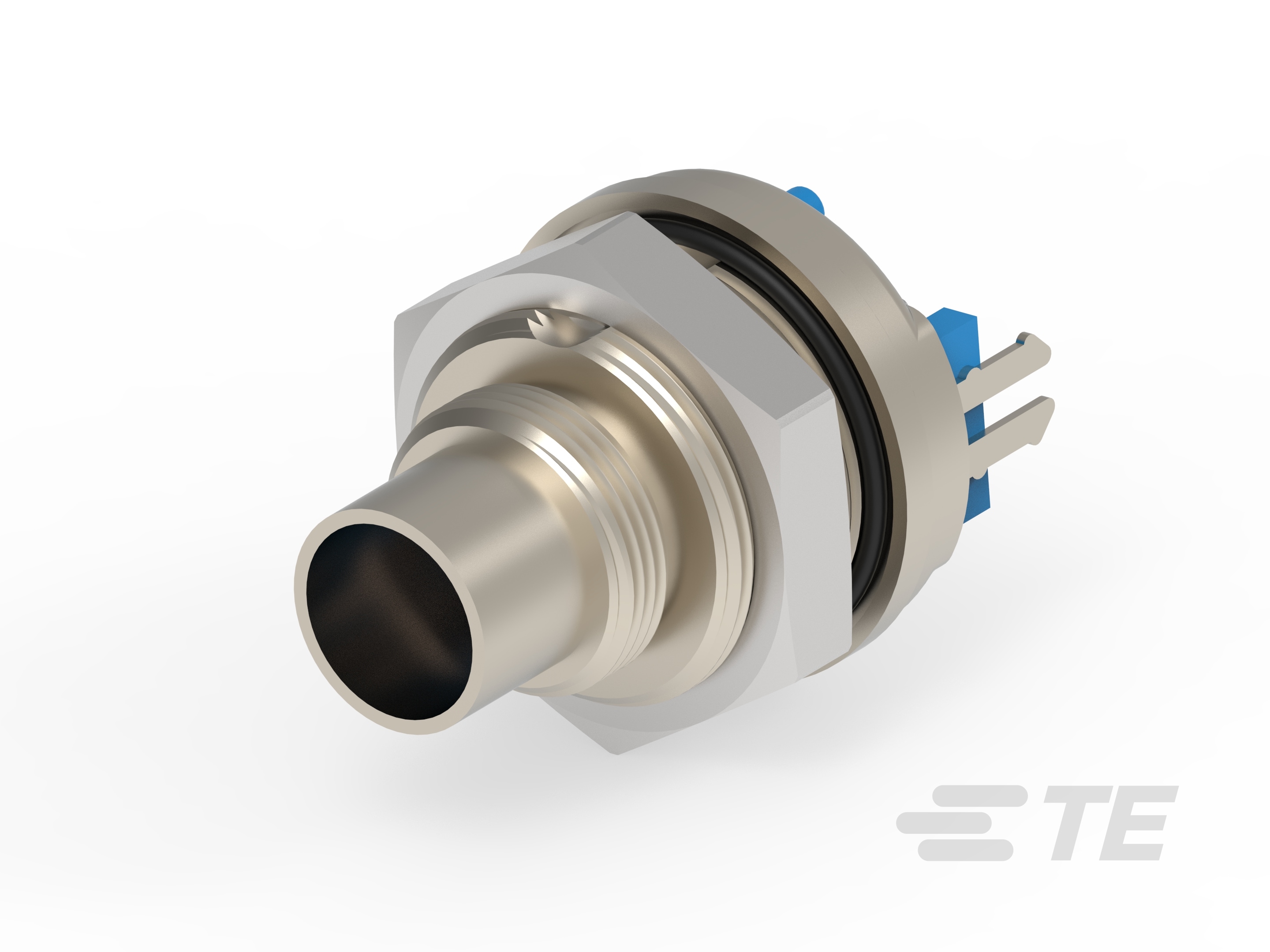

TE Connectivity AMP Connectors 6-1437719-4	Polybutylene Terephthalate (PBT)	3 A	Solder	85 °C	-40 C	Threaded	Shielded	Keyed	Board Lock	UL94 V-2	Panel Mount Through Hole	Metal	Brass	60 VAC	Tribor	Bulkhead	4	Plug Male Pins	IP65 - Dust Tight Water Resistant

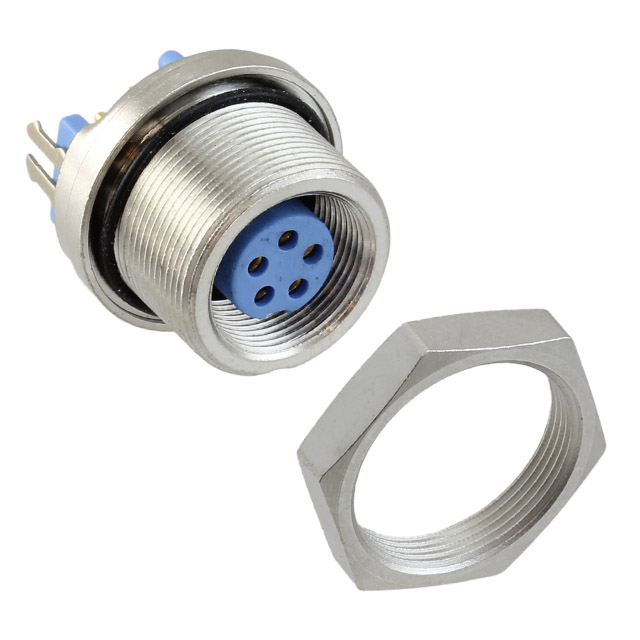

TE Connectivity AMP Connectors 7-1437719-2	Polybutylene Terephthalate (PBT)	3 A	Solder	85 °C	-40 C	Threaded	Shielded	Keyed	Board Lock	UL94 V-2	Panel Mount Through Hole	Metal	Brass	60 VAC	Tribor	Bulkhead	5	Receptacle Female Sockets	IP65 - Dust Tight Water Resistant

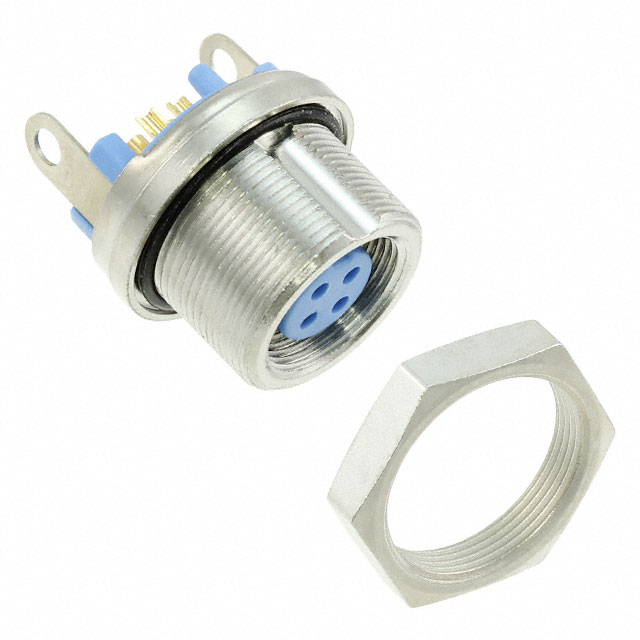

TE Connectivity AMP Connectors 9-1437719-9	Polybutylene Terephthalate (PBT)	3 A		85 °C	-40 C	Threaded	Shielded	Keyed		UL94 V-2	Panel Mount	Metal	Brass	60 VAC	Tribor	Bulkhead - Front Side Nut	4	Receptacle Female Sockets	IP65 - Dust Tight Water Resistant

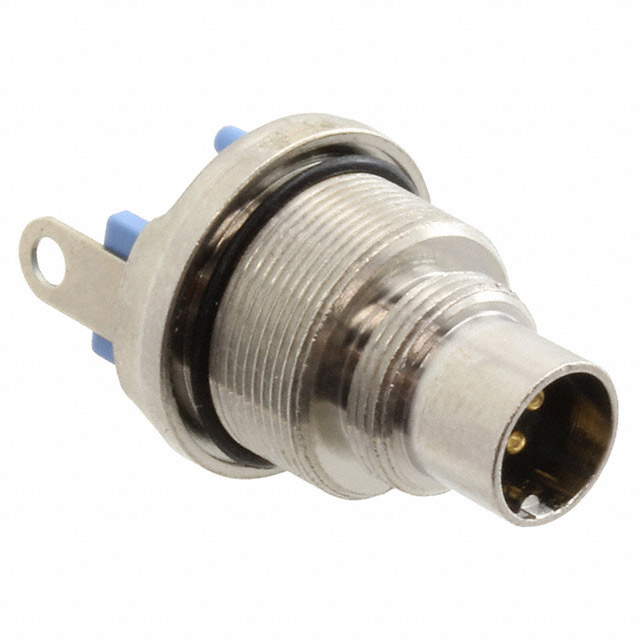

TE Connectivity AMP Connectors 8-1437719-7	Polybutylene Terephthalate (PBT)	3 A		85 °C	-40 C	Threaded	Shielded	Keyed		UL94 V-2	Panel Mount	Metal	Brass	60 VAC	Tribor	Bulkhead - Front Side Nut	5	Plug Male Pins	IP65 - Dust Tight Water Resistant

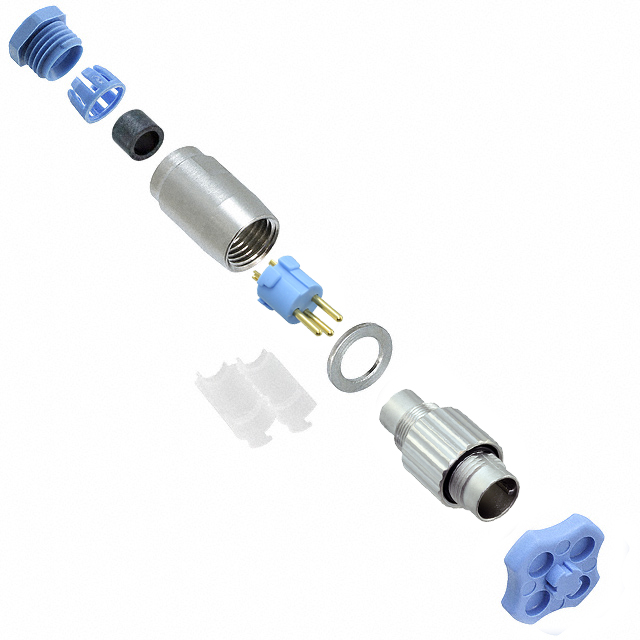

TE Connectivity AMP Connectors 1-1437719-5	Polybutylene Terephthalate (PBT)	3 A		85 °C	-40 C	Threaded	Shielded	Keyed	Strain Relief	UL94 V-2	Free Hanging (In-Line)	Metal	Brass	60 VAC	Tribor			Plug Male Pins	IP65 - Dust Tight Water Resistant
TE Connectivity AMP Connectors 9-1437719-9		3 A		85 °C	-40 C	Threaded	Shielded	Keyed		UL94 V-2	Panel Mount	Metal	Brass	60 VAC	Tribor	Bulkhead - Front Side Nut	4	Receptacle Female Sockets	IP65 - Dust Tight Water Resistant

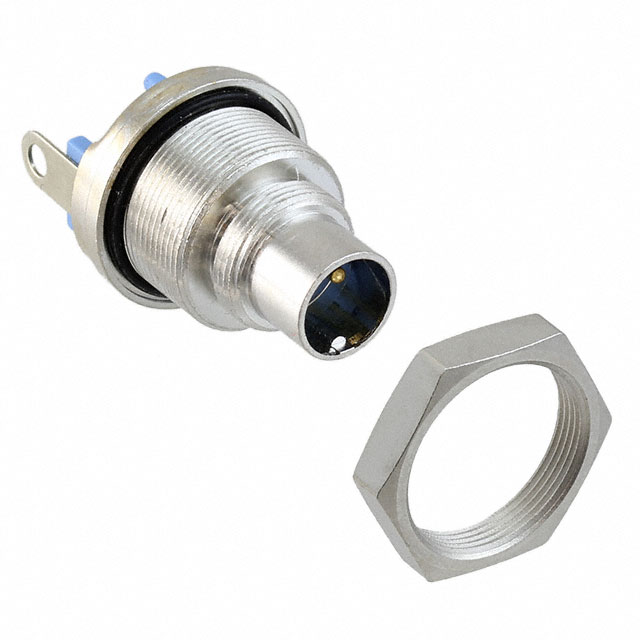

TE Connectivity AMP Connectors 8-1437719-1	Polybutylene Terephthalate (PBT)	3 A		85 °C	-40 C	Threaded	Shielded	Keyed		UL94 V-2	Panel Mount	Metal	Brass	60 VAC	Tribor	Bulkhead - Front Side Nut		Plug Male Pins	IP65 - Dust Tight Water Resistant
