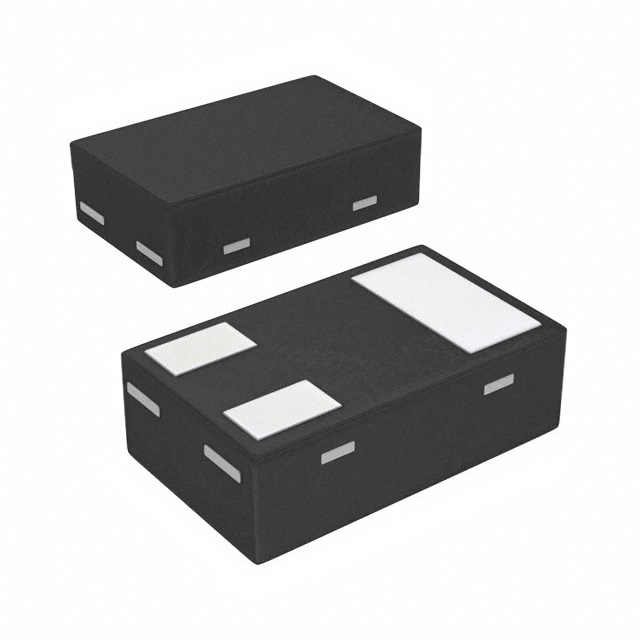

CEDM7004 Series

Catalog

TRANS MOSFET N-CH SI 30V 1.78A 3-PIN SOT-883L T/R

Part	Package / Case	Supplier Device Package	Vgs (Max) [Max]	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Power Dissipation (Max)	Technology	Input Capacitance (Ciss) (Max) @ Vds [Max]	FET Type	Operating Temperature [Max]	Operating Temperature [Min]	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)
Central Semiconductor Corp CEDM7004 TR PBFREE	SC-101 SOT-883	SOT-883	8 V	1.78 A	Surface Mount	100 mW	MOSFET (Metal Oxide)	43 pF	N-Channel	150 °C	-65 °C	460 mOhm	1.8 V	4.5 V	0.79 nC	1 V	30 V
Central Semiconductor Corp CEDM7004VL TR PBFREE	SC-101 SOT-883	SOT-883VL	8 V	450 mA	Surface Mount	100 mW	MOSFET (Metal Oxide)	43 pF	N-Channel	150 °C	-65 °C	460 mOhm	1.8 V	4.5 V	0.79 nC	1 V	30 V
