442-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HDR 48POS 0.1 STACK T/H

Part	Pitch	Pitch	Length - Tail	Length - Tail [x]	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Color	Termination	Row Spacing	Row Spacing	Number of Positions	Mounting Type	Contact Finish Thickness - Post (Mating) [custom]	Contact Finish Thickness - Post (Mating) [custom]	Number of Rows [custom]	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [z]	Length - Stack Height	Length - Stack Height [z]
Mill-Max Manufacturing Corp. 442-10-248-00-594000	0.1 "	2.54 mm	3.18 mm	0.125 in	0.835 in	21.2 mm	1.085 in	27.559 mm	Black	Solder	2.54 mm	0.1 "	48	Through Hole	10 Áin	0.25 Ám	2	Gold	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 442-10-254-00-591000	0.1 "	2.54 mm	3.18 mm	0.125 in			0.46 in	11.684 mm	Black	Solder	2.54 mm	0.1 "	54	Through Hole	10 Áin	0.25 Ám	2	Gold	3.18 mm	0.125 in	0.21 in	5.334 mm
Mill-Max Manufacturing Corp. 442-10-262-00-591000	0.1 "	2.54 mm	3.18 mm	0.125 in			0.46 in	11.684 mm	Black	Solder	2.54 mm	0.1 "	62	Through Hole	10 Áin	0.25 Ám	2	Gold	3.18 mm	0.125 in	0.21 in	5.334 mm
Mill-Max Manufacturing Corp. 442-10-254-00-594000	0.1 "	2.54 mm	3.18 mm	0.125 in	0.835 in	21.2 mm	1.085 in	27.559 mm	Black	Solder	2.54 mm	0.1 "	54	Through Hole	10 Áin	0.25 Ám	2	Gold	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 442-10-244-00-593000	0.1 "	2.54 mm	3.18 mm	0.125 in			0.835 in	21.2 mm	Black	Solder	2.54 mm	0.1 "	44	Through Hole	10 Áin	0.25 Ám	2	Gold	3.18 mm	0.125 in	0.585 in		14.859 mm
Mill-Max Manufacturing Corp. 442-10-244-00-592000	0.1 "	2.54 mm	3.18 mm	0.125 in			0.585 in	14.859 mm	Black	Solder	2.54 mm	0.1 "	44	Through Hole	10 Áin	0.25 Ám	2	Gold	3.18 mm	0.125 in	0.335 in		8.5 mm

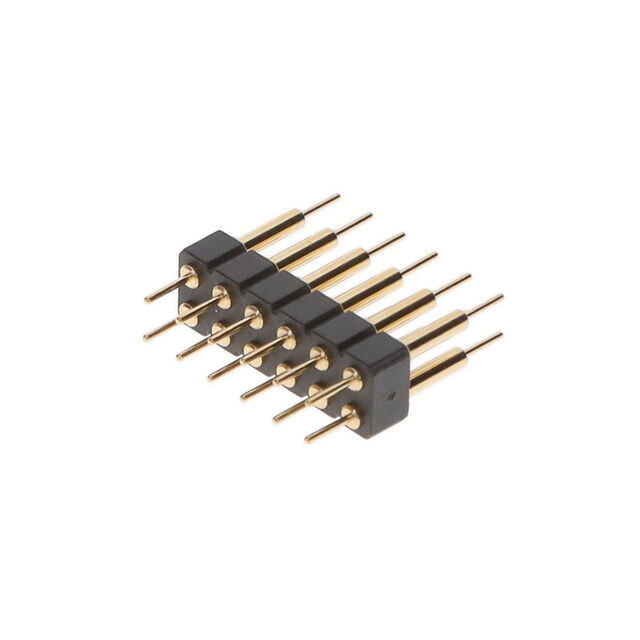

Mill-Max Manufacturing Corp. 442-10-212-00-592000	0.1 "	2.54 mm	3.18 mm	0.125 in			0.585 in	14.859 mm	Black	Solder	2.54 mm	0.1 "	12	Through Hole	10 Áin	0.25 Ám	2	Gold	3.18 mm	0.125 in	0.335 in		8.5 mm
Mill-Max Manufacturing Corp. 442-10-210-00-593000	0.1 "	2.54 mm	3.18 mm	0.125 in			0.835 in	21.2 mm	Black	Solder	2.54 mm	0.1 "	10	Through Hole	10 Áin	0.25 Ám	2	Gold	3.18 mm	0.125 in	0.585 in		14.859 mm
Mill-Max Manufacturing Corp. 442-10-214-00-591000	0.1 "	2.54 mm	3.18 mm	0.125 in			0.46 in	11.684 mm	Black	Solder	2.54 mm	0.1 "	14	Through Hole	10 Áin	0.25 Ám	2	Gold	3.18 mm	0.125 in	0.21 in	5.334 mm
Mill-Max Manufacturing Corp. 442-10-258-00-594000	0.1 "	2.54 mm	3.18 mm	0.125 in	0.835 in	21.2 mm	1.085 in	27.559 mm	Black	Solder	2.54 mm	0.1 "	58	Through Hole	10 Áin	0.25 Ám	2	Gold	3.18 mm	0.125 in
