1775099 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCPT 20POS 0.165 TIN PCB

Part	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Mounting Type	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Type	Shrouding	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Color	Contact Shape	Number of Rows	Contact Length - Post	Contact Length - Post [x]	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination	Material Flammability Rating	Fastening Type

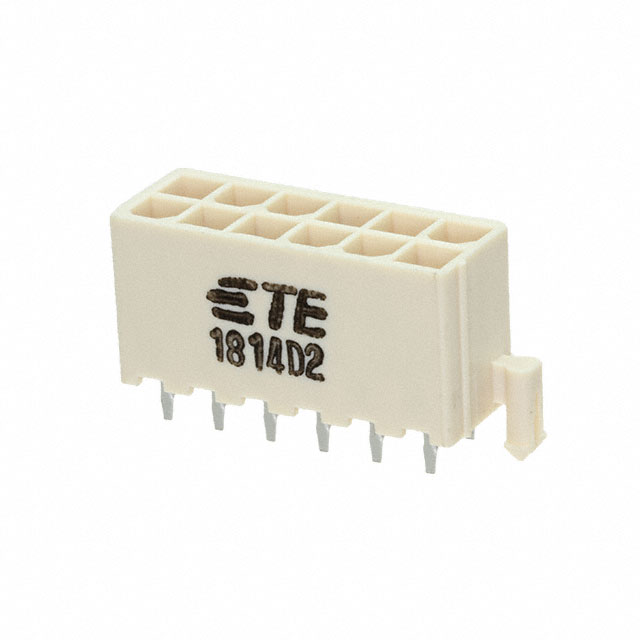

TE Connectivity Raychem Cable Protection 1-1775099-1	20	120 Áin	3.05 Ám	9 A	Through Hole	Brass	4.2 mm	0.165 in	250 VAC	120 µin	3.05 Ám	Header	Male Pin	Shrouded - 4 Wall	12.8 mm	0.504 in	-25 °C	85 °C	All	Ivory	Square	2	3.2 mm	0.126 in	Nylon 9T Polyamide (PA9T)	4.2 mm	0.165 in	Tin	Solder	UL94 V-0	Locking Ramp

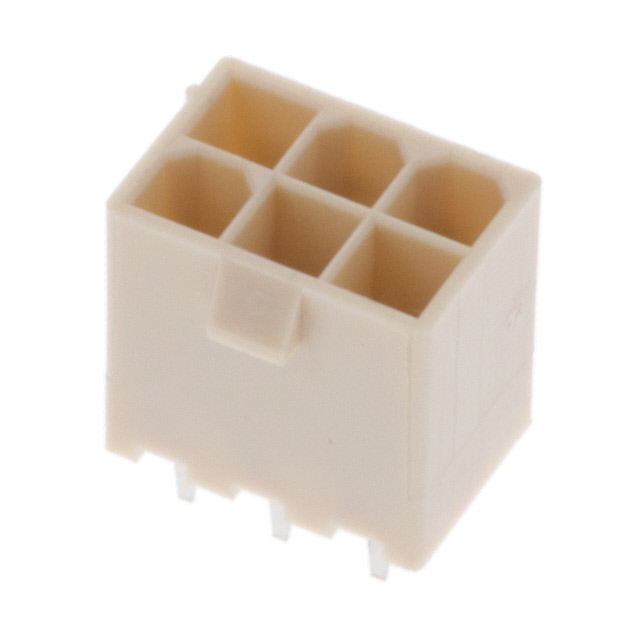

TE Connectivity Raychem Cable Protection 4-1775099-4	12	120 Áin	3.05 Ám	9 A	Through Hole	Brass	4.2 mm	0.165 in	250 VAC	120 µin	3.05 Ám	Header	Male Pin	Shrouded - 4 Wall	12.8 mm	0.504 in	-25 °C	85 °C	All	Ivory	Square	2	3.2 mm	0.126 in	Nylon 9T Polyamide (PA9T)	4.2 mm	0.165 in	Tin	Solder	UL94 V-0	Locking Ramp

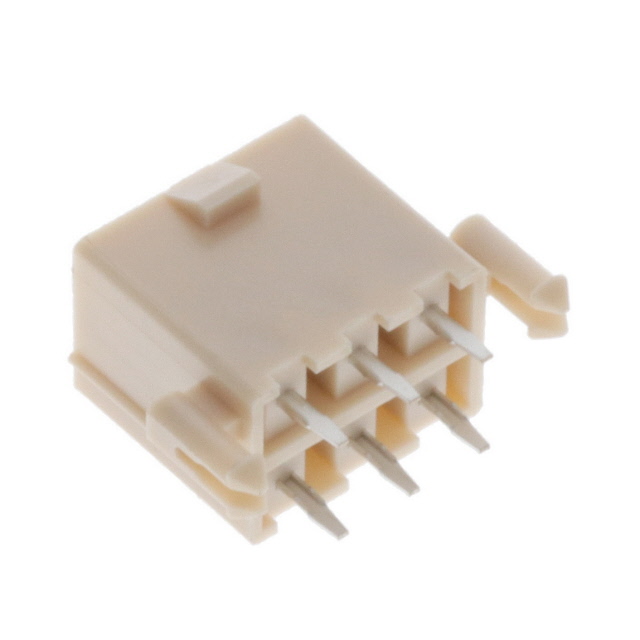

TE Connectivity Raychem Cable Protection 2-1775099-1	6	120 Áin	3.05 Ám	9 A	Through Hole	Brass	4.2 mm	0.165 in	250 VAC	120 µin	3.05 Ám	Header	Male Pin	Shrouded - 4 Wall	12.8 mm	0.504 in	-25 °C	85 °C	All	Ivory	Square	2	3.2 mm	0.126 in	Nylon 9T Polyamide (PA9T)	4.2 mm	0.165 in	Tin	Solder	UL94 V-0	Locking Ramp
TE Connectivity Raychem Cable Protection 3-1775099-4	12	120 Áin	3.05 Ám	9 A	Through Hole	Brass	4.2 mm	0.165 in	250 VAC	120 µin	3.05 Ám	Header	Male Pin	Shrouded - 4 Wall	12.8 mm	0.504 in	-25 °C	85 °C	All	Ivory	Square	2	3.2 mm	0.126 in	Nylon 9T Polyamide (PA9T)	4.2 mm	0.165 in	Tin	Solder	UL94 V-0	Locking Ramp
TE Connectivity Raychem Cable Protection 4-1775099-6	18	120 Áin	3.05 Ám	9 A	Through Hole	Brass	4.2 mm	0.165 in	250 VAC	120 µin	3.05 Ám	Header	Male Pin	Shrouded - 4 Wall	12.8 mm	0.504 in	-25 °C	85 °C	All	Ivory	Square	2	3.2 mm	0.126 in	Nylon 9T Polyamide (PA9T)	4.2 mm	0.165 in	Tin	Solder	UL94 V-0	Locking Ramp
TE Connectivity Raychem Cable Protection 4-1775099-8	24	120 Áin	3.05 Ám	9 A	Through Hole	Brass	4.2 mm	0.165 in	250 VAC	120 µin	3.05 Ám	Header	Male Pin	Shrouded - 4 Wall	12.8 mm	0.504 in	-25 °C	85 °C	All	Ivory	Square	2	3.2 mm	0.126 in	Nylon 9T Polyamide (PA9T)	4.2 mm	0.165 in	Tin	Solder	UL94 V-0	Locking Ramp
TE Connectivity Raychem Cable Protection 1775099-8	12	120 Áin	3.05 Ám	9 A	Through Hole	Brass	4.2 mm	0.165 in	250 VAC	120 µin	3.05 Ám	Header	Male Pin	Shrouded - 4 Wall	12.8 mm	0.504 in	-25 °C	85 °C	All	Ivory	Square	2	3.2 mm	0.126 in	Nylon 9T Polyamide (PA9T)	4.2 mm	0.165 in	Tin	Solder	UL94 V-0	Locking Ramp
TE Connectivity Raychem Cable Protection 2-1775099-7	20	120 Áin	3.05 Ám	9 A	Through Hole	Brass	4.2 mm	0.165 in	250 VAC	120 µin	3.05 Ám	Header	Male Pin	Shrouded - 4 Wall	12.8 mm	0.504 in	-25 °C	85 °C	All	Ivory	Square	2	3.2 mm	0.126 in	Nylon 9T Polyamide (PA9T)	4.2 mm	0.165 in	Tin	Solder	UL94 V-0	Locking Ramp
TE Connectivity Raychem Cable Protection 4-1775099-1	6	120 Áin	3.05 Ám	9 A	Through Hole	Brass	4.2 mm	0.165 in	250 VAC	120 µin	3.05 Ám	Header	Male Pin	Shrouded - 4 Wall	12.8 mm	0.504 in	-25 °C	85 °C	All	Ivory	Square	2	3.2 mm	0.126 in	Nylon 9T Polyamide (PA9T)	4.2 mm	0.165 in	Tin	Solder	UL94 V-0	Locking Ramp
