RF1-1B Series
Manufacturer: Switch Components
Beta
⌘K

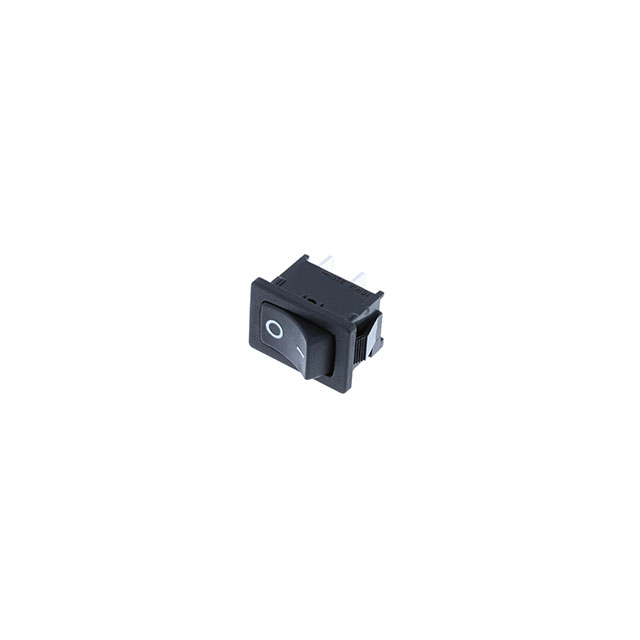

SWITCH ROCKER SPST-NO 10A 125V
| Part | Mechanical Life (Cycles) | Electrical Life (Cycles) | Voltage Rating - AC | Actuator Type | Switch Function | Color - Actuator/Cap | Actuator Marking | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Quick Connect Size (0.187") | Termination Style | Approval Agency | Operating Temperature (Max) | Operating Temperature (Min) | Circuit | Mounting Type | Current Rating | Voltage Rating - DC | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 10000 Cycles | 6000 Cycles | 125 V | Concave (Curved) | Off-Mom | Black | No Marking | 13 mm | Rectangular | 19.2 mm | 0.187 in | Quick Connect | CSA cURus ENEC | 85 °C | -25 °C | SPST-NO | Panel Mount Snap-In | 16 A 16 A | 12 V | |
Switch Components | 125 V | Concave (Curved) | Off-Mom | Black | No Marking | 13 mm | Rectangular | 19.2 mm | 0.187 in | Quick Connect | CSA cURus ENEC | 85 °C | -20 °C | SPST | Panel Mount Snap-In | 16 A | IP40 | |||
 Switch Components | 10000 Cycles | 6000 Cycles | 125 V | Concave (Curved) | Off-Mom | Black | O | 13 mm | Rectangular | 19.2 mm | 0.187 in | Quick Connect | CSA cURus ENEC | 85 °C | -25 °C | SPST-NO | Panel Mount Snap-In | 16 A 16 A | 12 V | |
Switch Components | 125 V | Concave (Curved) | Off-Mom | Black | O | 13 mm | Rectangular | 19.2 mm | 0.187 in | Quick Connect | CSA cURus ENEC | 85 °C | -25 °C | SPST | Panel Mount Snap-In | 16 A | IP40 |
