171745 Series

High Speed / Modular Connectors Impel 2x10 1.9mm Open BP Assy 4.9 .36

Manufacturer: Molex

Catalog

High Speed / Modular Connectors Impel 2x10 1.9mm Open BP Assy 4.9 .36

Catalog

High Speed / Modular Connectors Impel 2x10 1.9mm Open BP Assy 4.9 .36

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Positions Loaded	Connector Style	Number of Columns	Mounting Type	Color	Connector Usage	Connector Type	Contact Finish	Termination	Contact Layout, Typical	Features	Current Rating (Amps)	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions	Contact Layout, Typical	Number of Positions Loaded
Molex 1717451837	30 Áin	0.76 Ám	1.9 mm	0.075 in	All	Impel™	8	Through Hole	Black	Backplane	Header Male Blades	Gold	Press-Fit	16 Differential Pairs	Shielded
Molex 1717453807	30 Áin	0.76 Ám	1.9 mm	0.075 in	All	Impel Guide Left	8	Through Hole	Black	Backplane	Header Male Blades	Gold	Press-Fit	16 Differential Pairs	Guide Pin	0.75 A	150 VDC	-55 C	85 °C	UL94 V-0

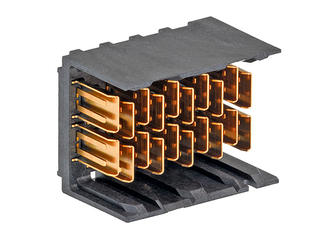

Molex 1717451807	30 Áin	0.76 Ám	1.9 mm	0.075 in	All	Impel™	8	Through Hole	Black	Backplane	Header Male Blades	Gold	Press-Fit	16 Differential Pairs		0.75 A	150 VDC	-55 C	85 °C	UL94 V-0

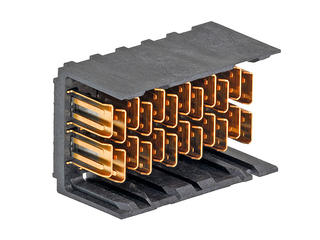

Molex 1717451208	30 Áin	0.76 Ám	1.9 mm	0.075 in	All	Impel™	12	Through Hole	Black	Backplane	Header Male Blades	Gold	Press-Fit	24 Differential Pairs							48
Molex 1717455108	30 Áin	0.76 Ám	1.9 mm	0.075 in		Impel Guide Right	10	Through Hole	Black	Backplane	Header Male Blades	Gold	Press-Fit		Shielded						40	20	40

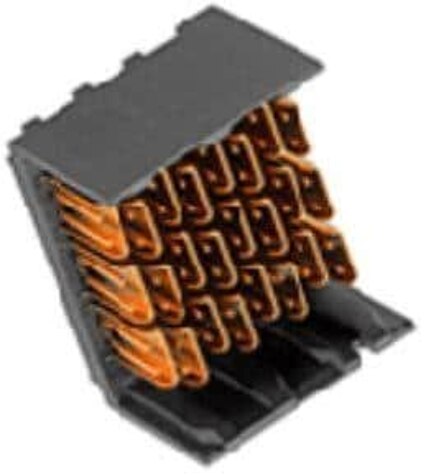

Molex 1717451107	30 Áin	0.76 Ám			All	Impel™	10	Board Edge Right Angle Through Hole	Black	Backplane	Header Male Blades	Gold	Press-Fit								40	20
