SI8472 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

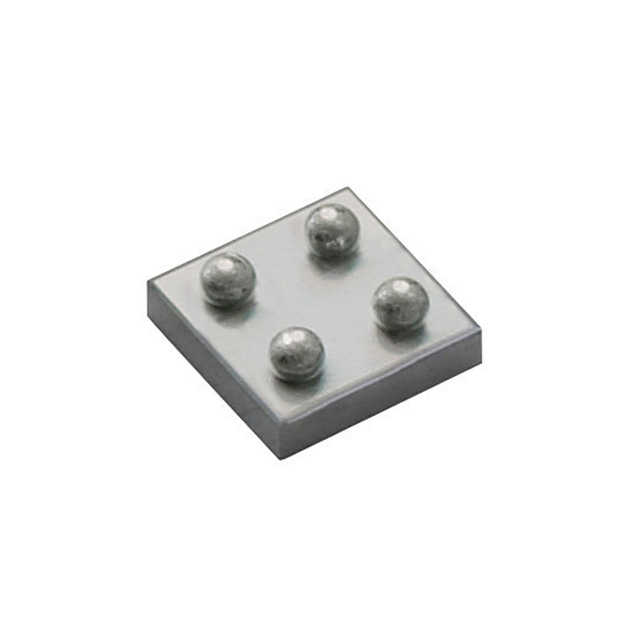

MOSFET N-CH 20V 4MICRO FOOT
| Part | Current - Continuous Drain (Id) @ 25°C | Mounting Type | Vgs (Max) | Drain to Source Voltage (Vdss) | Drive Voltage (Max Rds On, Min Rds On) | Technology | Vgs(th) (Max) @ Id | Package / Case | Supplier Device Package | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds | Operating Temperature [Min] | Operating Temperature [Max] | Gate Charge (Qg) (Max) @ Vgs | Power Dissipation (Max) | FET Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 3.3 A | Surface Mount | 8 V | 20 V | 1.5 V 4.5 V | MOSFET (Metal Oxide) | 900 mV | 4-UFBGA | 4-MICRO FOOT® (1x1) | 44 mOhm | 630 pF | -55 °C | 150 °C | 18 nC | 780 mW | N-Channel |
