83709 Series
Manufacturer: Belden Inc.
Beta
⌘K

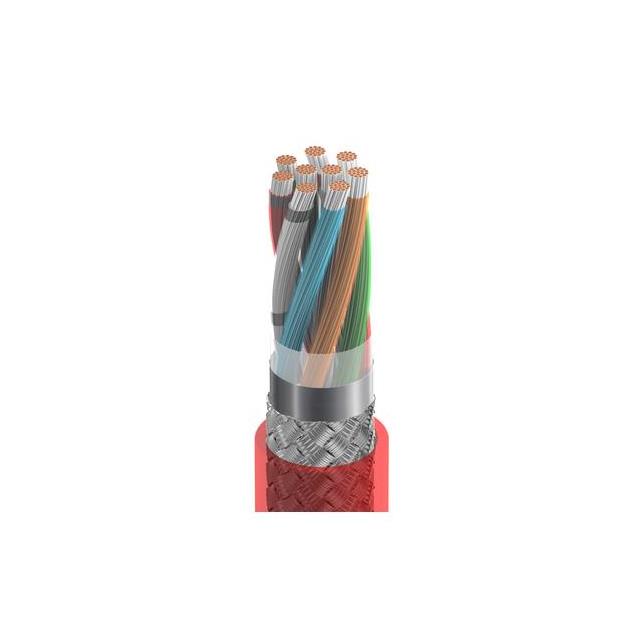

CABLE 9COND 16AWG RED SHLD
| Part | Shield Material | Shield Coverage | Number of Conductors | Voltage | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Ratings | Conductor Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Wire Gauge | Usage | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 9 | 300 VDC | Multi-Conductor | 0.307 in | 7.8 mm | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | Copper Tinned | Braid Foil | 19 | 29 | Red | 16 AWG | Audio Control Instrumentation | Fluorinated Ethylene-Propylene (FEP) Plenum | 0.014 in | 0.356 mm | -70 °C | 200 °C | 152.4 m | 500 ft |
