BCD 310 Series

Catalog

CLEAR HINGED LID 289X324X37.2MM

Part	Color	Features	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	For Use With/Related Products	Material	Thickness	Thickness	Container Type	Material Flammability Rating	Height	Height	Design	Area (L x W)	Area (L x W)	Height [z]	Height [z]
Bopla Enclosures BCD 310 OT-G-7024	Clear Gray Frame	Hinged	Cover Lid	1.465 "	11.378 "	289 mm	324 mm	37.2 mm	12.756 "	BOCARD 310 System	Plastic Polycarbonate
Bopla Enclosures BCD 310 KRD-7024	Gray		Cover Lid	0.787 "	2.835 "	72 mm	311 mm	20 mm	12.244 "	BOCARD 310 System	Plastic Polycarbonate

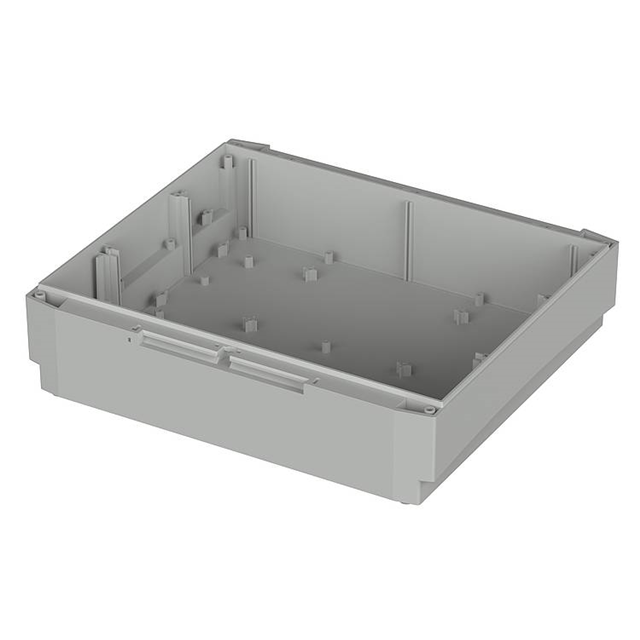

Bopla Enclosures BCD 310 UT-0.5-7035	Gray	Card Guides PCB Supports			11.142 in	283 mm	320 mm		12.598 in		ABS Plastic	0.157 in	4 mm	Box	UL94 HB	71 mm	2.795 in	Open End(s)	903 cm˛	140 in²

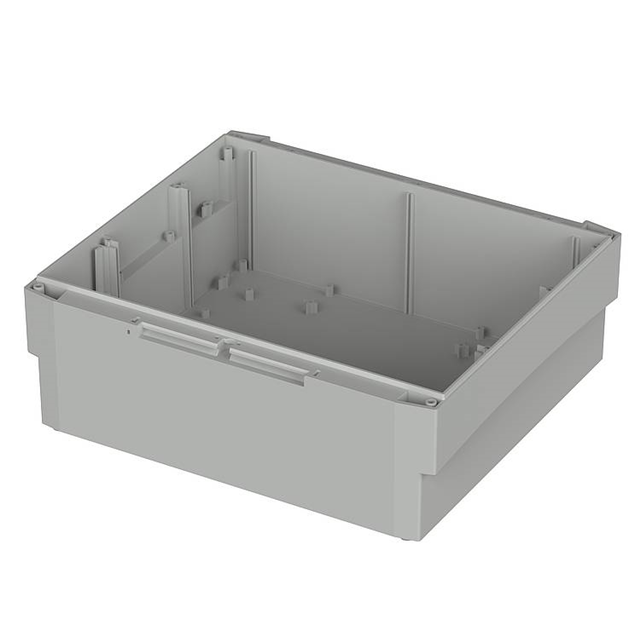

Bopla Enclosures BCD 310 UT-7035	Gray	Card Guides PCB Supports			11.142 in	283 mm	320 mm		12.598 in		ABS Plastic	0.157 in	4 mm	Box	UL94 HB			Open End(s)	903 cm˛	140 in²	105 mm	4.134 in
Bopla Enclosures BCD 310 KRD-7035	Gray		Cover Lid	0.787 "	2.835 "	72 mm	311 mm	20 mm	12.244 "	BOCARD 310 System	Plastic Polycarbonate
Bopla Enclosures BCD 310 OT-FSC-7024	Gray	Hinged	Cover Lid	1.465 "	11.378 "	289 mm	324 mm	37.2 mm	12.756 "	BOCARD 310 System	Plastic Polycarbonate
Bopla Enclosures BCD 310 OT-G-7035	Clear Gray Frame	Hinged	Cover Lid	1.465 "	11.378 "	289 mm	324 mm	37.2 mm	12.756 "	BOCARD 310 System	Plastic Polycarbonate
Bopla Enclosures BCD 310 OT-FSC-7035	Gray	Hinged	Cover Lid	1.465 "	11.378 "	289 mm	324 mm	37.2 mm	12.756 "	BOCARD 310 System	Plastic Polycarbonate
