771-250 Series
Manufacturer: 3M (TC)
Beta
⌘K

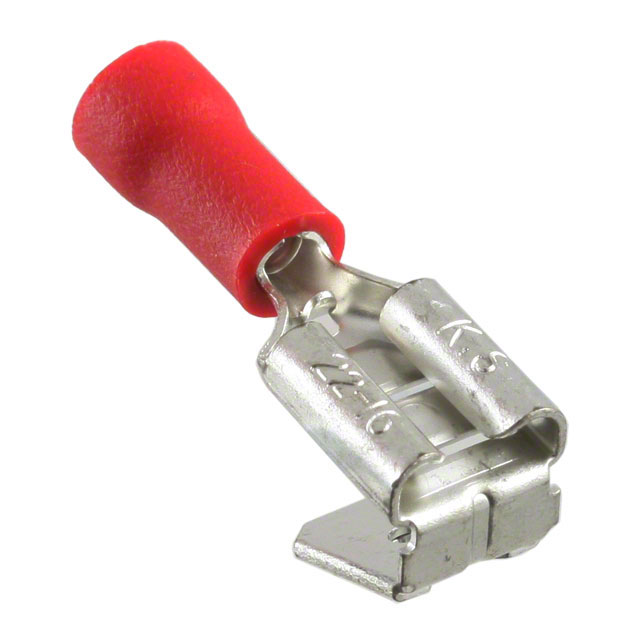

CONN QC RCPT/TAB 18-22AWG 0.250
| Part | Terminal Type | Gender | Tab Width | Tab Width | Color | Termination | Tab Thickness | Tab Thickness | Insulation | Contact Material | Length - Overall [x] | Length - Overall [x] | Wire Gauge [Max] | Wire Gauge [Min] | Insulation Diameter | Insulation Diameter [diameter] | Features | Contact Finish | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M (TC) | Stacked | Female Male | 6.35 mm | 0.25 in | Red | Crimp | 0.032 in | 0.81 mm | Non-Mating End Insulated | Brass | 22.1 mm | 0.87 in | 22 AWG | 17.5 AWG | 3.68 mm | 0.145 " | Butted Seam | Tin | Free Hanging (In-Line) |
3M (TC) | Stacked | Female Male | 6.35 mm | 0.25 in | Red | Crimp | 0.032 in | 0.81 mm | Non-Mating End Insulated | 21.84 mm | 0.86 " | 22 AWG | 17.5 AWG | 3.68 mm | 0.145 " | Free Hanging (In-Line) |
