807-050 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR, 50 CONTACT(S), 2 ROW(S), FEMALE, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,
| Part | Contact Type | Flange Feature | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Mounting Type | Material - Insulation | Card Type | Read Out | Termination | Termination Rows | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Number of Positions | Gender | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

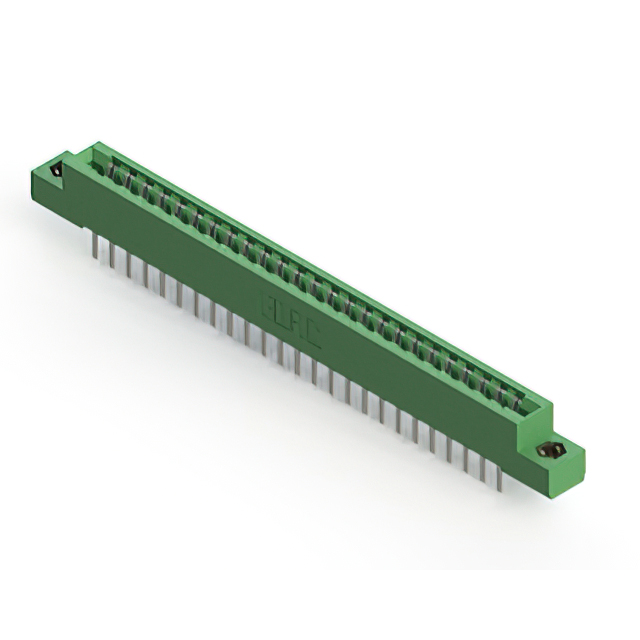

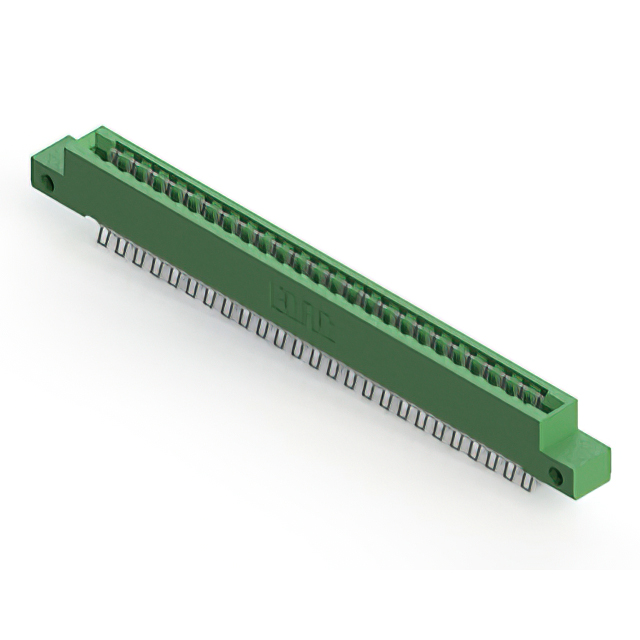

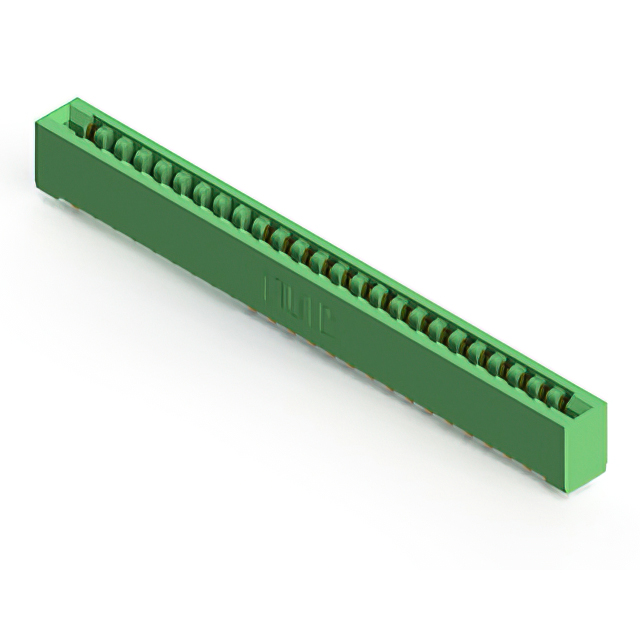

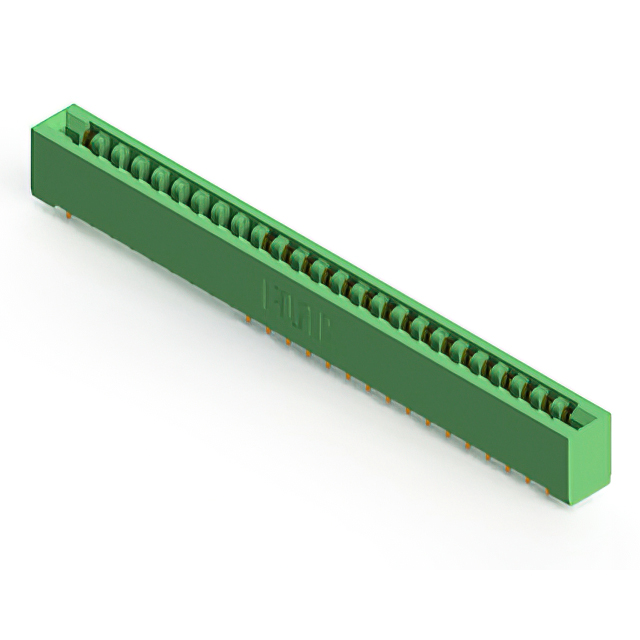

 EDAC Inc. | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | 25 | 0.156 in | 3.96 mm | Through Hole | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Solder Eyelet(s) | 2 | 2 | 125 °C | -40 °C | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 50 | Female | Copper Alloy | |||||
 EDAC Inc. | Semi Bellows | 25 | 0.156 in | 3.96 mm | Through Hole | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Solder | 2 | 2 | 125 °C | -40 °C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 50 | Female | Copper Alloy | 10 Áin | 0.25 Ám | ||||
 EDAC Inc. | Semi Bellows | Floating Bobbin Flush Mount | 25 | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Solder | 2 | 2 | 125 °C | -40 °C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 50 | Female | Copper Alloy | 10 Áin | 0.25 Ám | 0.116 in | 2.95 mm | Card Extender |
 EDAC Inc. | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 25 | 0.156 in | 3.96 mm | Through Hole Right Angle | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Single | Solder | 2 | 2 | 125 °C | -40 °C | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 50 | Female | Copper Alloy | |||||
 EDAC Inc. | Semi Bellows | 25 | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Solder | 2 | 2 | 125 °C | -40 °C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 50 | Female | Copper Alloy | 10 Áin | 0.25 Ám | Card Extender | |||
 EDAC Inc. | Semi Bellows | Floating Bobbin Flush Mount | 25 | 0.156 in | 3.96 mm | Through Hole Right Angle | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Single | Solder | 2 | 2 | 125 °C | -40 °C | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 50 | Female | Copper Alloy | 0.116 in | 2.95 mm | |||
 EDAC Inc. | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 25 | 0.156 in | 3.96 mm | Through Hole | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Wire Wrap | 2 | 2 | 125 °C | -40 °C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 50 | Female | Copper Alloy | 10 Áin | 0.25 Ám | |||
 EDAC Inc. | Semi Bellows | 25 | 0.156 in | 3.96 mm | Through Hole Right Angle | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Single | Solder | 2 | 2 | 125 °C | -40 °C | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 50 | Female | Copper Alloy | ||||||
 EDAC Inc. | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | 25 | 0.156 in | 3.96 mm | Through Hole Right Angle | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Single | Solder | 2 | 2 | 125 °C | -40 °C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 50 | Female | Copper Alloy | 10 Áin | 0.25 Ám | |||
 EDAC Inc. | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 25 | 0.156 in | 3.96 mm | Through Hole Right Angle | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Single | Solder | 2 | 2 | 125 °C | -40 °C | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 50 | Female | Copper Alloy |
