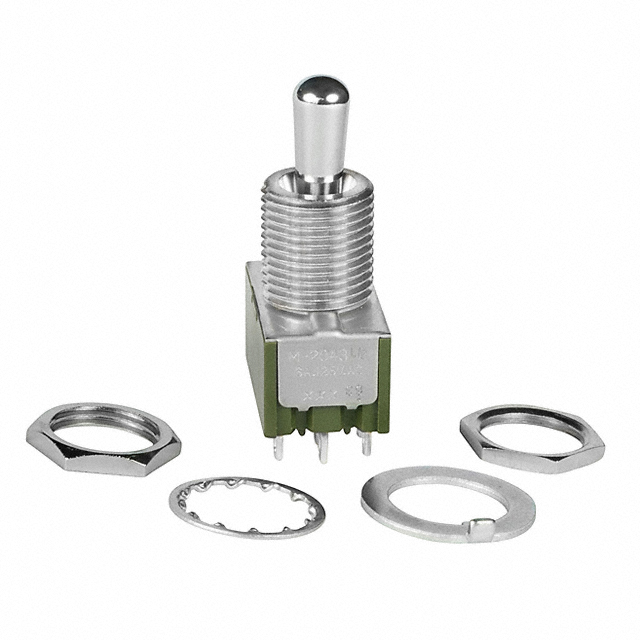

M2043BB Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE 4PDT 6A 125V
| Part | Electrical Life | Actuator Material | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Bushing Thread | Actuator Type | Termination Style | Illumination | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Circuit | Features | Mounting Type | Voltage Rating - AC | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | 12.5 mm | 30 V | M12 x 1 | Standard Round | Solder Lug | Non-Illuminated | 11.5 mm | 85 °C | -30 ░C | On-Off-On | 4PDT | Epoxy Sealed Terminals | Panel Mount | 125 V | 3 A 6 A |
