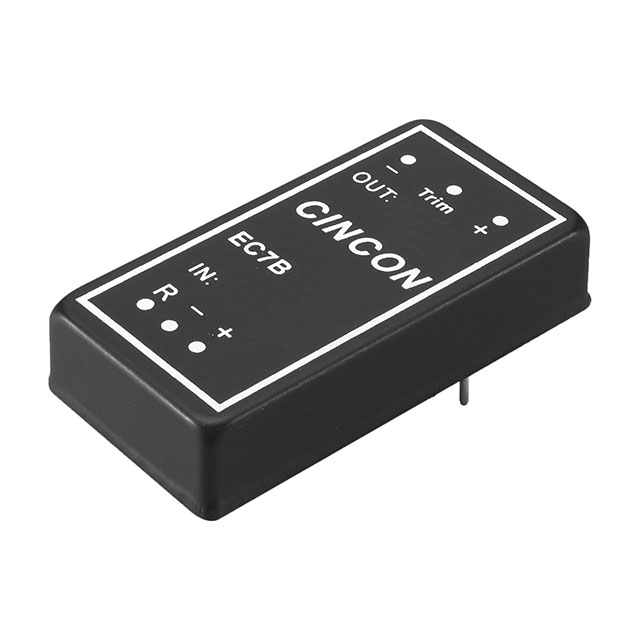

EC7B-24 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER 5V 20W

Part	Standard Number	Approval Agency	Applications	Features	Voltage - Input (Max) [Max]	Power (Watts)	Number of Outputs	Voltage - Isolation	Mounting Type	Type	Voltage - Input (Min) [Min]	Size / Dimension	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Control Features	Current - Output (Max) [Max]	Package / Case	Current - Output (Max)
Cincon Electronics Co. LTD EC7B-24S05	60950-1	CE cURus	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	36 V	20 W	1	1.5 kV	Through Hole	Isolated Module	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	5 V	-40 °C	85 °C	90 %	Active High Enable	4 A	6-DIP Module
Cincon Electronics Co. LTD EC7B-24S18S	60950-1	CE cURus	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	36 V	11 W	1	1.5 kV	Through Hole	Isolated Module	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	1.8 V	-40 °C	85 °C	86 %	Active High Enable	6 A	6-DIP Module
Cincon Electronics Co. LTD EC7B-24S05S	60950-1	CE cURus	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	36 V	20 W	1	1.5 kV	Through Hole	Isolated Module	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	5 V	-40 °C	85 °C	90 %	Active High Enable	4 A	6-DIP Module
Cincon Electronics Co. LTD EC7B-24S15S	60950-1	CE cURus	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	36 V	20 W	1	1.5 kV	Through Hole	Isolated Module	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 V	-40 °C	85 °C	90 %	Active High Enable	1.33 A	6-DIP Module
Cincon Electronics Co. LTD EC7B-24S33	60950-1	CE cURus	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	36 V	17 W	1	1.5 kV	Through Hole	Isolated Module	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	3.3 V	-40 °C	85 °C	90 %	Active High Enable		6-DIP Module	5 A
Cincon Electronics Co. LTD EC7B-24S15	60950-1	CE cURus	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	36 V	20 W	1	1.5 kV	Through Hole	Isolated Module	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 V	-40 °C	85 °C	90 %	Active High Enable	1.33 A	6-DIP Module
Cincon Electronics Co. LTD EC7B-24S12S	60950-1	CE cURus	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	36 V	20 W	1	1.5 kV	Through Hole	Isolated Module	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	12 V	-40 °C	85 °C	90 %	Active High Enable	1.67 A	6-DIP Module
Cincon Electronics Co. LTD EC7B-24S18	60950-1	CE cURus	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	36 V	11 W	1	1.5 kV	Through Hole	Isolated Module	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	1.8 V	-40 °C	85 °C	86 %	Active High Enable	6 A	6-DIP Module
Cincon Electronics Co. LTD EC7B-24S25S	60950-1	CE cURus	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	36 V	15 W	1	1.5 kV	Through Hole	Isolated Module	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	2.5 V	-40 °C	85 °C	88 %	Active High Enable	6 A	6-DIP Module
