17SX21 Series

Catalog

SWITCH SNAP ACTION SPDT 5A 115V

Part	Termination Style	Differential Travel	Differential Travel	Pretravel	Pretravel	Overtravel [custom]	Overtravel [custom]	Release Force	Current Rating (Amps)	Operating Position	Operating Position	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Mechanical Life	Circuit	Switch Function	Mounting Type	Operating Force [Max]	Operating Force [Min]	Voltage Rating - DC

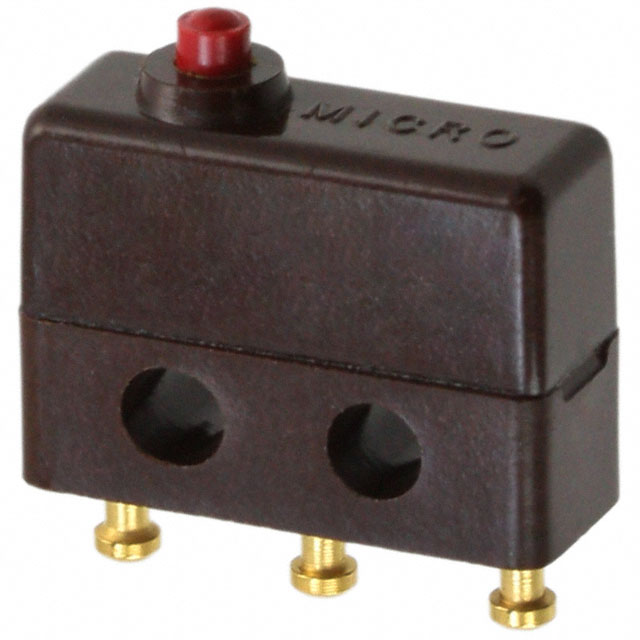

Honeywell Sensing and Productivity Solutions 17SX21-T	Solder Turret	0.05 mm	0.002 in	0.02 in	0.5 mm	0.004 in	0.1 mm	28 gf	5 A	8.13 mm	0.32 "	Round (Pin Plunger)	-55 C	125 °C	115 V	10000000 Cycles	SPDT	On-Mom	Chassis Mount	141 gf	71 gf	28 V
