M300-MC6 Series
Manufacturer: Harwin Inc.
Beta
⌘K

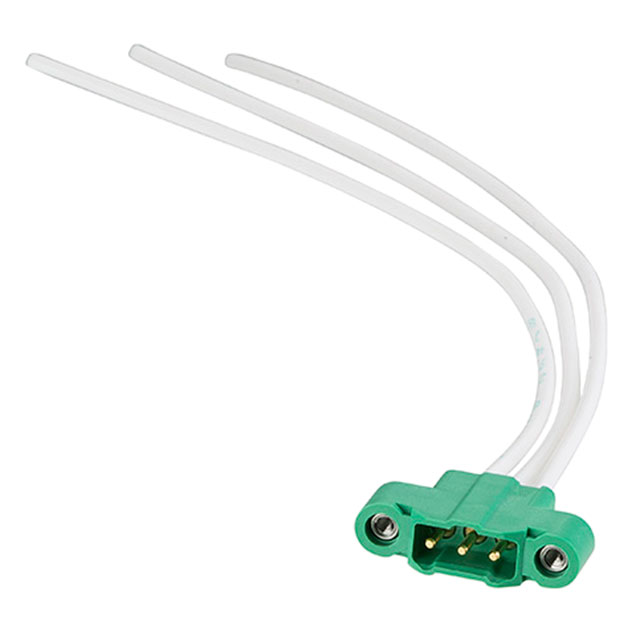

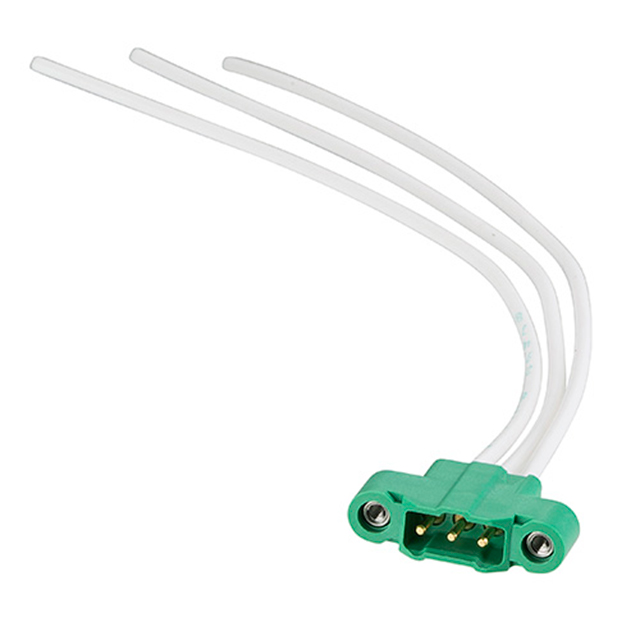

3 POS. MALE SIL 20AWG CABLE ASSEMBLY, 150MM, SINGLE-END, JACKSCREWS
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Shielding | Pitch - Connector | Pitch - Connector | Features | Number of Rows | Cable Termination | Connector Type | Length | Length | Length | Length [x] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 0.15 µm | 5.9 µin | Gold | Unshielded | 0.118 in | 3 mm | Mating Flange Polarizing Key | 1 | Crimp | Plug to Individual Wire Leads | 5.91 in | 0.492 ft | 150 mm | |||
 Harwin Inc. | 0.15 µm | 5.9 µin | Gold | Unshielded | 0.118 in | 3 mm | Mating Flange Polarizing Key | 1 | Crimp | Plug to Individual Wire Leads | 0.984 ft | 300 mm | 11.81 in | |||
Harwin Inc. | 0.15 µm | 5.9 µin | Gold | Unshielded | 0.118 in | 3 mm | Mating Flange Polarizing Key | 1 | Crimp | Plug to Individual Wire Leads | 1.48 ' | 0.45 m |
