8304 Series
Manufacturer: Belden Inc.
Beta
⌘K

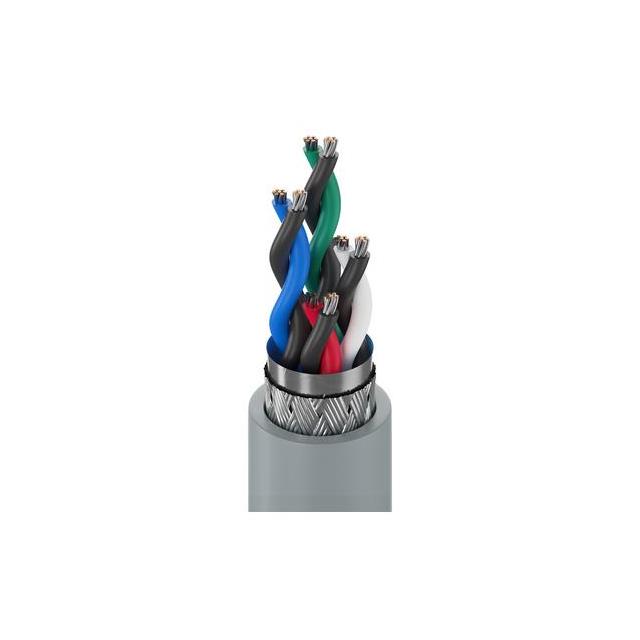

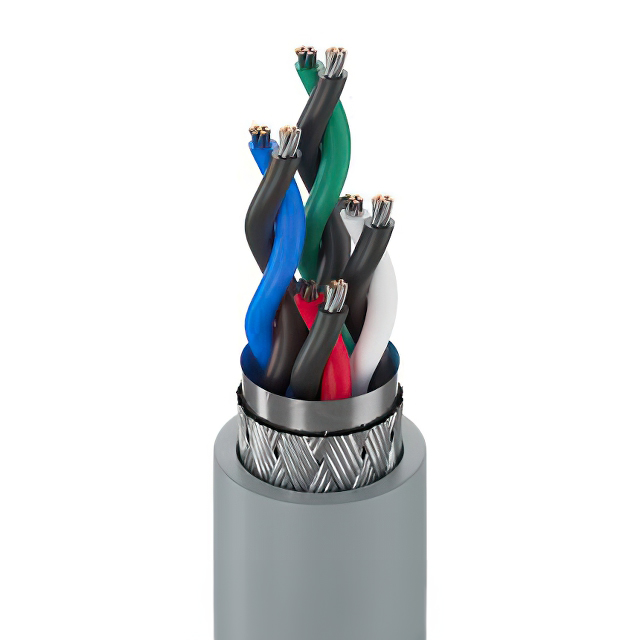

MULTI-PAIR 8COND 22AWG CHROME
| Part | Shield Coverage | Shield Material | Shield Type | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Usage | Conductor Insulation | Length [x] | Length [x] | Ratings | Jacket (Insulation) Material | Wire Gauge | Voltage | Jacket (Insulation) Thickness [custom] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Braid Foil | Chrome | 0.035 in | 0.889 mm | 0.32 in | 8.13 mm | Copper Tinned | 8 | 80 °C | -30 ░C | 30 AWG | 7 | Multi-Pair | Computer | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 22 AWG | ||||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Braid Foil | Chrome | 1.143 mm | 0.32 in | 8.13 mm | Copper Tinned | 8 | 80 °C | -30 ░C | 30 AWG | 7 | Multi-Pair | Computer | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 22 AWG | 300 VDC | 0.045 in | 304.8 m | 1000 ft | |||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Braid Foil | Chrome | 1.143 mm | 0.32 in | 8.13 mm | Copper Tinned | 8 | 80 °C | -30 ░C | 30 AWG | 7 | Multi-Pair | Computer | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 22 AWG | 300 VDC | 0.045 in | |||||
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Braid Foil | Chrome | 1.143 mm | 0.32 in | 8.13 mm | Copper Tinned | 8 | 80 °C | -30 ░C | 30 AWG | 7 | Multi-Pair | Computer | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 22 AWG | 300 VDC | 0.045 in | 152.4 m | 500 ft |
