76347 Series

Catalog

CONN SOCKET 22-30AWG CRIMP GOLD

Part	Pin or Socket	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Termination
Amphenol ICC (FCI) 76347-303	Socket	Gold	30 AWG	22 AWG	0.76 Ám	30 Áin	Crimp
Amphenol ICC (FCI) 76347-341	Socket	Gold	32 AWG	27.5 AWG	0.76 Ám	30 Áin	Crimp
Amphenol ICC (FCI) 76347-341LF	Socket	Gold	32 AWG	27.5 AWG	0.76 Ám	30 Áin	Crimp

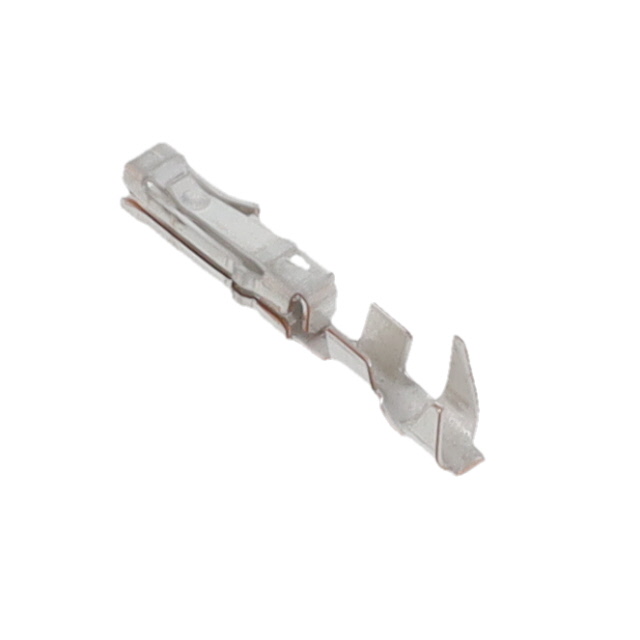

Amphenol ICC (FCI) 76347-402LF	Socket	Tin	30 AWG	22 AWG	2 µm	78.7 µin	Crimp

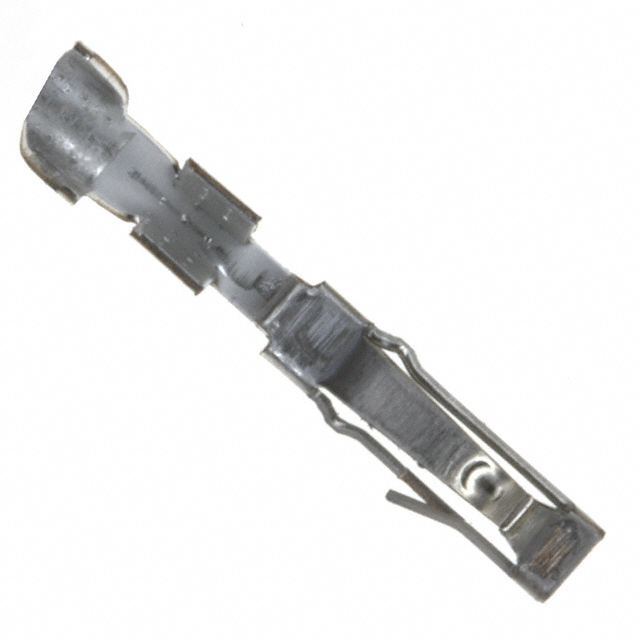

Amphenol ICC (FCI) 76347-303LF	Socket	Gold	30 AWG	22 AWG	0.76 Ám	30 Áin	Crimp
Amphenol ICC (FCI) 76347-442LF	Socket	Tin	32 AWG	27.5 AWG	5 µm	196.9 µin	Crimp
Amphenol ICC (FCI) 76347-312	Socket	Gold	22 AWG	20 AWG	0.76 Ám	30 Áin	Crimp
Amphenol ICC (FCI) 76347-402	Socket	Tin-Lead	30 AWG	22 AWG	5 µm	196.9 µin	Crimp

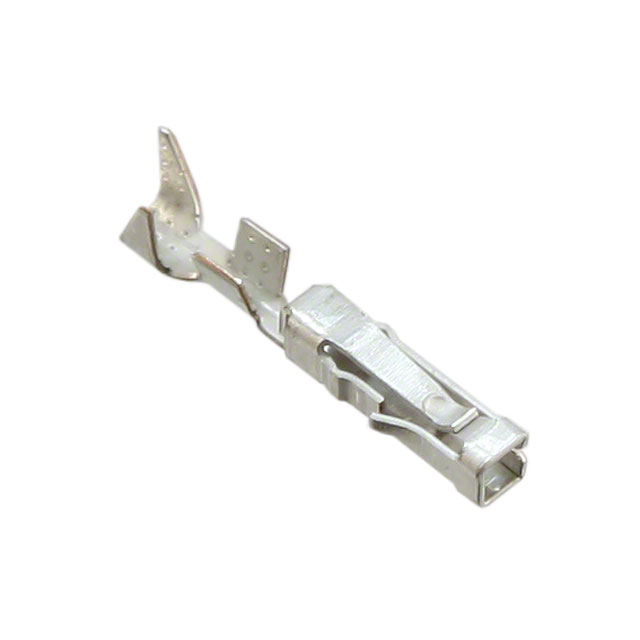

Amphenol ICC (FCI) 76347-401LF	Socket	Tin	30 AWG	22 AWG	2 µm	78.7 µin	Crimp

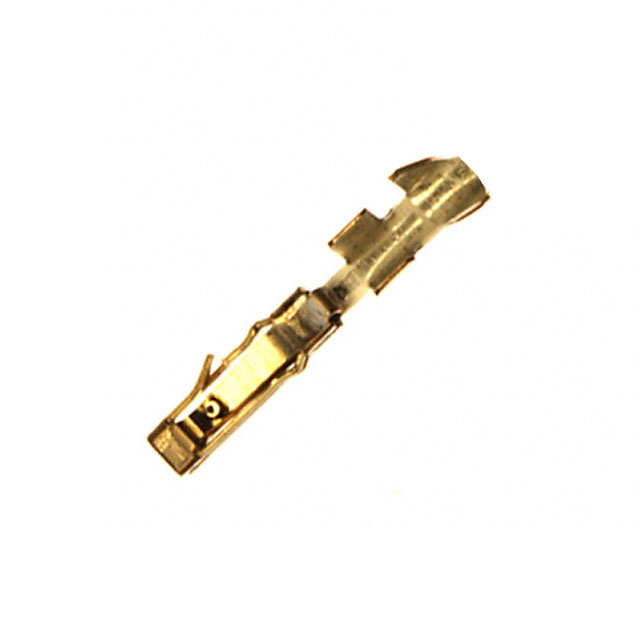

Amphenol ICC (FCI) 76347-311LF	Socket	Gold	22 AWG	20 AWG	0.76 Ám	30 Áin	Crimp
