EDZ1200 Series

Catalog

TERM BLOCK PLUG 18POS STR 5.08MM

Part	Contact Material	Torque - Screw	Torque - Screw	Wire Strip Length	Material Flammability Rating	Housing Material	Type	Voltage - UL	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Number of Positions	Mounting Type	Termination Style	Wire Gauge or Range - mm²	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Color	Pitch	Pitch	Wire Gauge or Range - mm˛	Positions Per Level [custom]

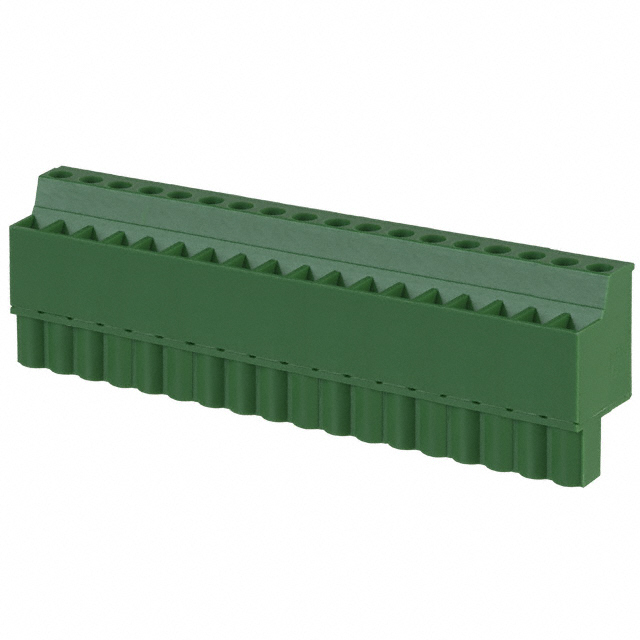

On Shore Technology Inc. EDZ1200/18	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Plug Female Sockets	300 V	18	-30 ░C	105 ░C	1	18	Free Hanging (In-Line)	Screw	2.5 mm²	22 AWG	12 AWG	Green	5.08 mm	0.2 in

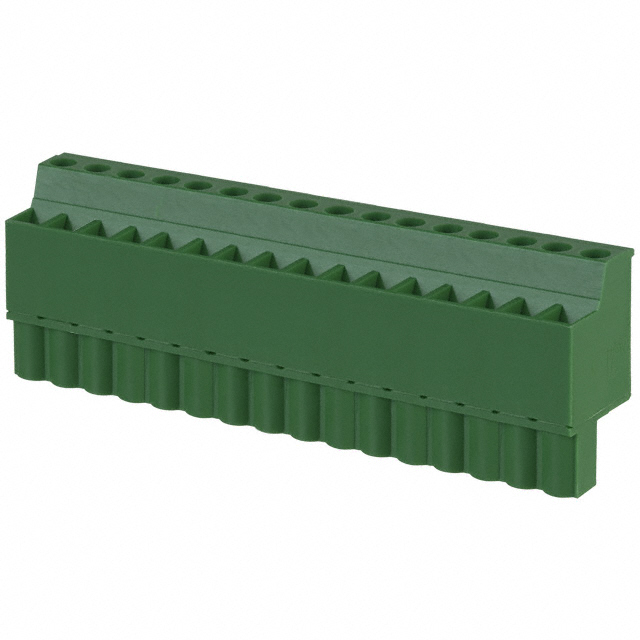

On Shore Technology Inc. EDZ1200/16	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Plug Female Sockets	300 V	16	-30 ░C	105 ░C	1	16	Free Hanging (In-Line)	Screw	2.5 mm²	22 AWG	12 AWG	Green	5.08 mm	0.2 in	2.5 mm˛

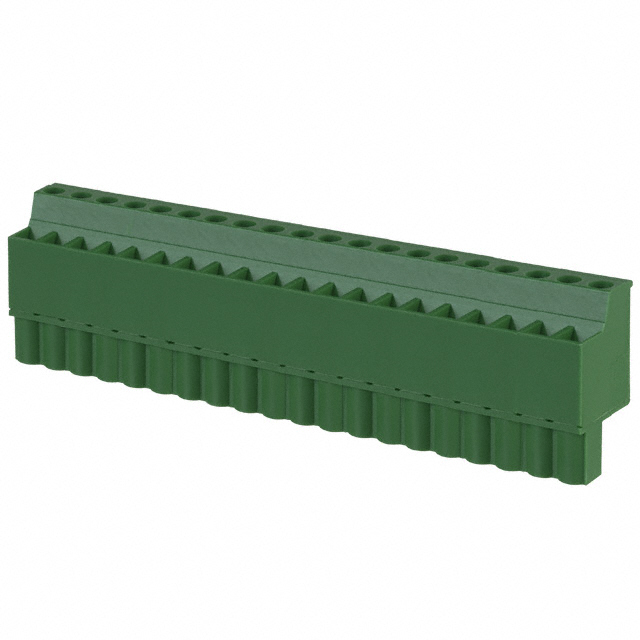

On Shore Technology Inc. EDZ1200/20	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Plug Female Sockets	300 V	20	-30 ░C	105 ░C	1	20	Free Hanging (In-Line)	Screw	2.5 mm²	22 AWG	12 AWG	Green	5.08 mm	0.2 in

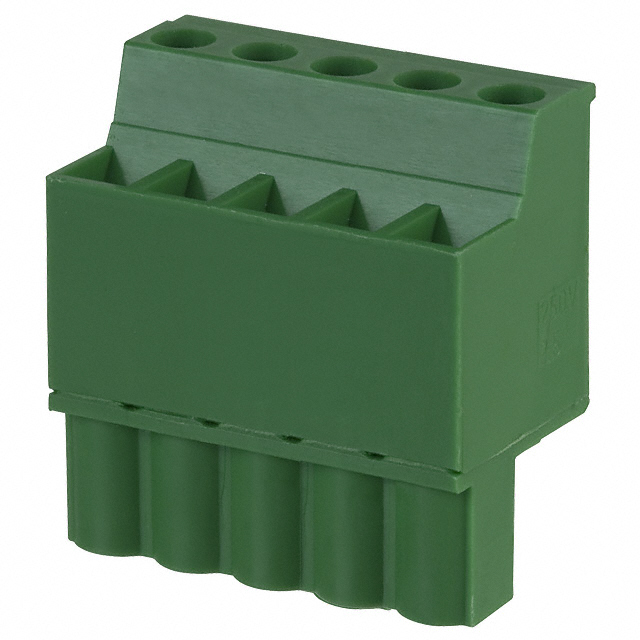

On Shore Technology Inc. EDZ1200/5	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Plug Female Sockets	300 V	5	-30 ░C	105 ░C	1	5	Free Hanging (In-Line)	Screw	2.5 mm²	22 AWG	12 AWG	Green	5.08 mm	0.2 in	2.5 mm˛

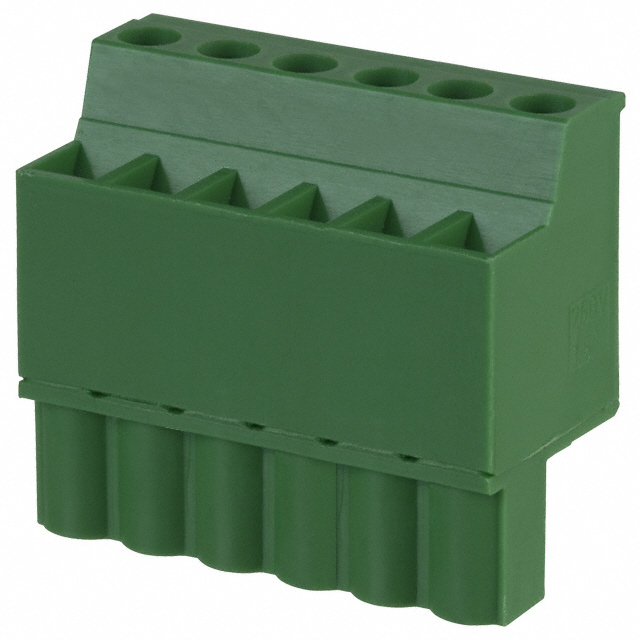

On Shore Technology Inc. EDZ1200/6	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Plug Female Sockets	300 V	6	-30 ░C	105 ░C	1	6	Free Hanging (In-Line)	Screw	2.5 mm²	22 AWG	12 AWG	Green	5.08 mm	0.2 in	2.5 mm˛

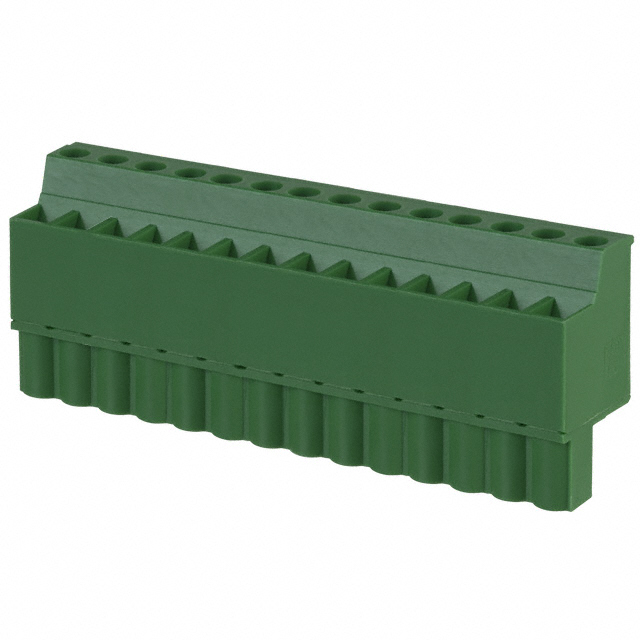

On Shore Technology Inc. EDZ1200/14	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Plug Female Sockets	300 V	14	-30 ░C	105 ░C	1	14	Free Hanging (In-Line)	Screw	2.5 mm²	22 AWG	12 AWG	Green	5.08 mm	0.2 in	2.5 mm˛

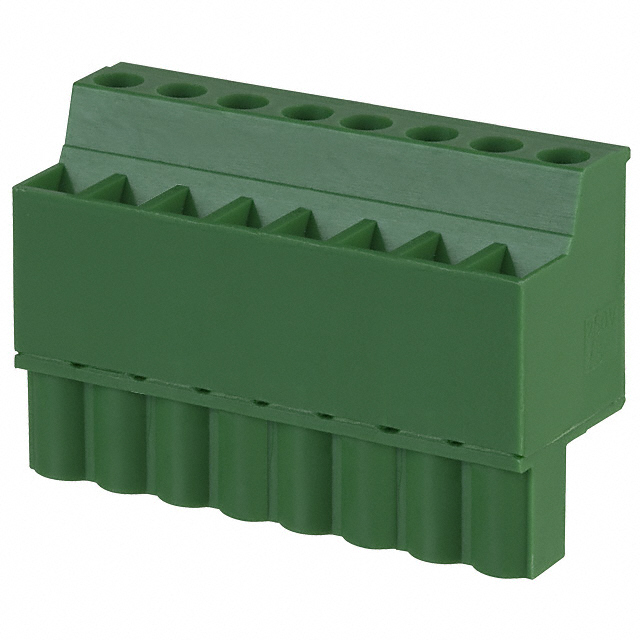

On Shore Technology Inc. EDZ1200/8	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Plug Female Sockets	300 V	8	-30 ░C	105 ░C	1	8	Free Hanging (In-Line)	Screw	2.5 mm²	22 AWG	12 AWG	Green	5.08 mm	0.2 in

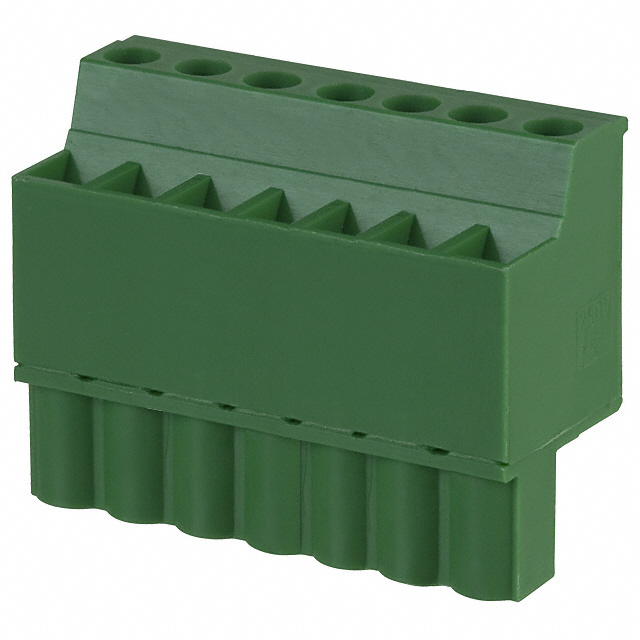

On Shore Technology Inc. EDZ1200/7	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Plug Female Sockets	300 V		-30 ░C	105 ░C	1	7	Free Hanging (In-Line)	Screw	2.5 mm²	22 AWG	12 AWG	Green	5.08 mm	0.2 in		7

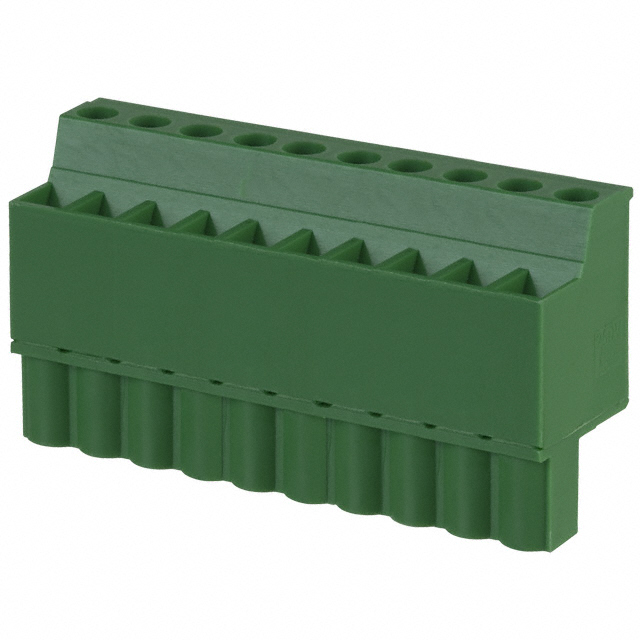

On Shore Technology Inc. EDZ1200/10	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Plug Female Sockets	300 V	10	-30 ░C	105 ░C	1	10	Free Hanging (In-Line)	Screw	2.5 mm²	22 AWG	12 AWG	Green	5.08 mm	0.2 in	2.5 mm˛

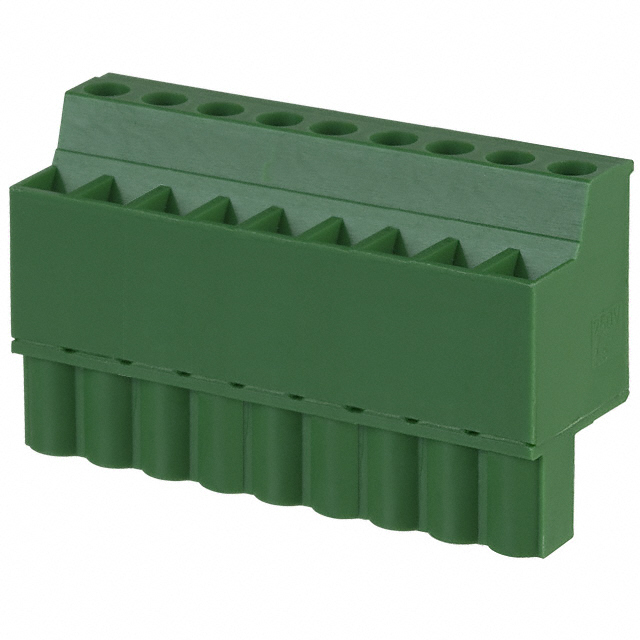

On Shore Technology Inc. EDZ1200/9	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Plug Female Sockets	300 V	9	-30 ░C	105 ░C	1	9	Free Hanging (In-Line)	Screw	2.5 mm²	22 AWG	12 AWG	Green	5.08 mm	0.2 in	2.5 mm˛
