OSTTF02 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

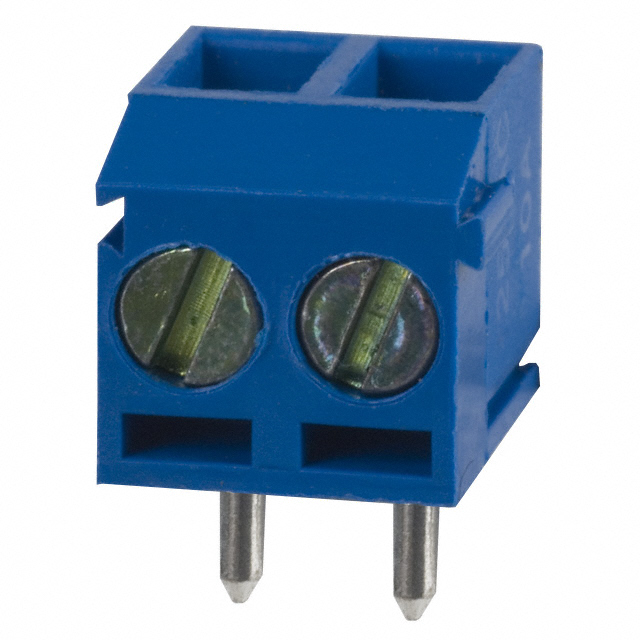

TERM BLK 2P TOP ENTRY 3.5MM PCB
| Part | Screw Thread | Housing Material | Clamp Material - Plating [custom] | Contact Material - Plating | Screw Material - Plating | Torque - Screw | Torque - Screw | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Current | Wire Termination | Number of Levels | Mating Orientation | Pitch | Pitch | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level | Features | Voltage | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | M2 | Thermoplastic | Stainless Steel | Brass - Tin Plated | Steel - Zinc Plated | 1.7 Lb-In | 0.2 Nm | -30 ░C | 105 ░C | Through Hole | 10 A | Screw - Leaf Spring Wire Guard | 1 | Vertical with Board | 3.5 mm | 0.138 " | 26 AWG | 16 AWG | 2 | Interlocking (Side) | 125 V | Blue |

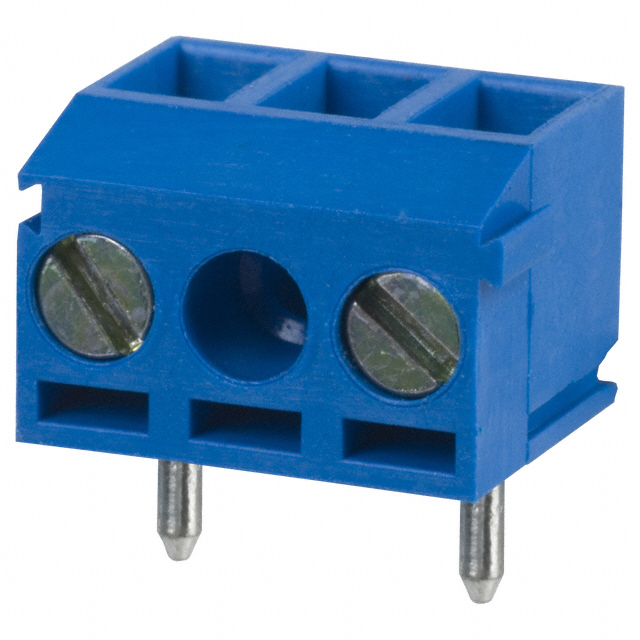

 On Shore Technology Inc. | M2 | Polyamide (PA) Nylon | Stainless Steel | Brass | Steel Galvanized - Chromate Plated | 1.7 Lb-In | 0.2 Nm | -33 °C | 120 °C | Through Hole | 10 A | Screw | 1 | Vertical with Board | 7 mm | 0.276 in | 26 AWG | 16 AWG | 2 | Interlocking (Side) | 125 V |
