ALC70G Series

Manufacturer: KEMET

Catalog

CAP ALUM 9100UF 20% 200V SNAP

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Package / Case	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Capacitance	Impedance	Polarization	Mounting Type	Applications	Voltage - Rated
KEMET ALC70G912KP200	4.213 in	107 mm	11.39 A	29 mOhm	Radial Can - Snap-In - 5 Lead	18000 Hrs	85 °C	-40 C	16.89 A	25 mm	0.984 in	50 mm	1.969 in	20 %	9100 µF	20 mOhms	Polar	Through Hole	General Purpose	200 VDC

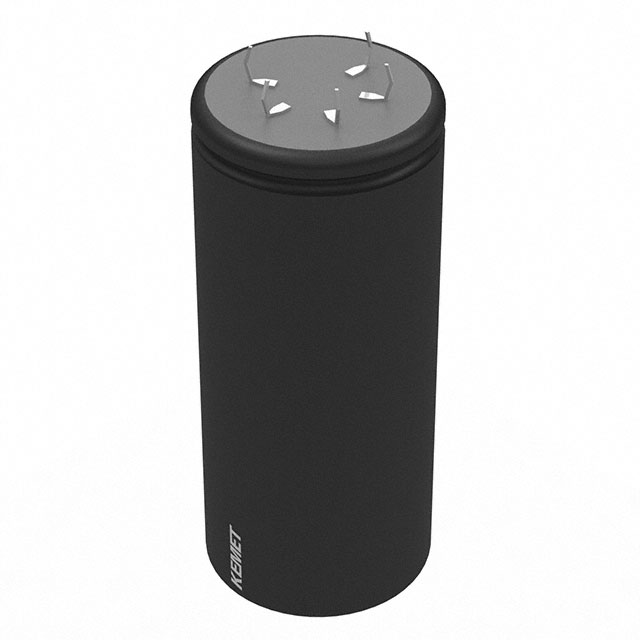

KEMET ALC70G752FP200	4.213 in	107 mm	10.2 A	34 mOhm	Radial Can - Snap-In - 5 Lead	18000 Hrs	85 °C	-40 C	15.97 A	25 mm	0.984 in	45 mm	1.772 "	20 %	7500 µF	22 mOhms	Polar	Through Hole	General Purpose	200 VDC
KEMET ALC70G114FP040	4.213 in	107 mm	17.87 A	10 mOhm	Radial Can - Snap-In - 5 Lead	18000 Hrs	85 °C	-40 C	19.84 A	25 mm	0.984 in	45 mm	1.772 "	20 %	110000 µF	9 mOhms	Polar	Through Hole	General Purpose	40 V
KEMET ALC70G132FP550	4.213 in	107 mm	5.12 A	316 mOhm	Radial Can - Snap-In - 5 Lead	18000 Hrs	85 °C	-40 C	7.94 A	25 mm	0.984 in	45 mm	1.772 "	20 %	1300 µF	273 mOhms	Polar	Through Hole	General Purpose	550 V
KEMET ALC70G182KP550	4.213 in	107 mm	6.4 A	233 mOhm	Radial Can - Snap-In - 5 Lead	18000 Hrs	85 °C	-40 C	9.7 A	25 mm	0.984 in	50 mm	1.969 in	20 %	1800 µF	201 mOhms	Polar	Through Hole	General Purpose	550 V
KEMET ALC70G102FP600	4.213 in	107 mm	5.75 A	132 mOhm	Radial Can - Snap-In - 5 Lead	18000 Hrs	85 °C	-40 C	11.48 A	25 mm	0.984 in	45 mm	1.772 "	20 %	1000 µF	92 mOhms	Polar	Through Hole	General Purpose	600 V
