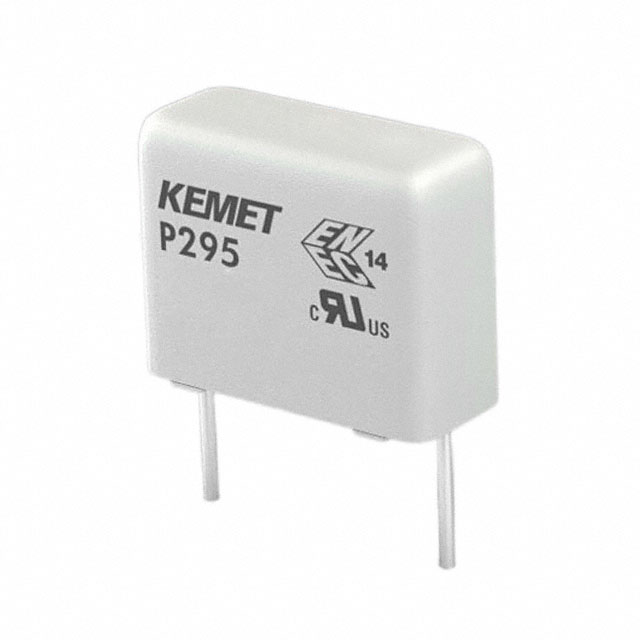

P295 Series

Manufacturer: KEMET

Catalog

SAFETY CAPACITORS 500VOLTS 2200PF 20% LS=15MM

Part	Dielectric Material	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Lead Spacing	Lead Spacing	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Mounting Type	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Package / Case
KEMET P295BJ222M500A	Metallized Paper	2200 pF	18 mm	0.256 "	0.709 in	6.5 mm	Y1	15 mm	0.591 in	PC Pins	115 °C	-40 C	500 V	Through Hole	20 %	0.492 in	12.5 mm	EMI RFI Suppression	Radial
KEMET P295BE102M500A	Metallized Paper	0.001 µF	18 mm	0.217 in	0.709 in	5.5 mm	Y1	15 mm	0.591 in	PC Pins	115 °C	-40 C	500 V	Through Hole	20 %	0.492 in	12.5 mm	EMI RFI Suppression	Radial
