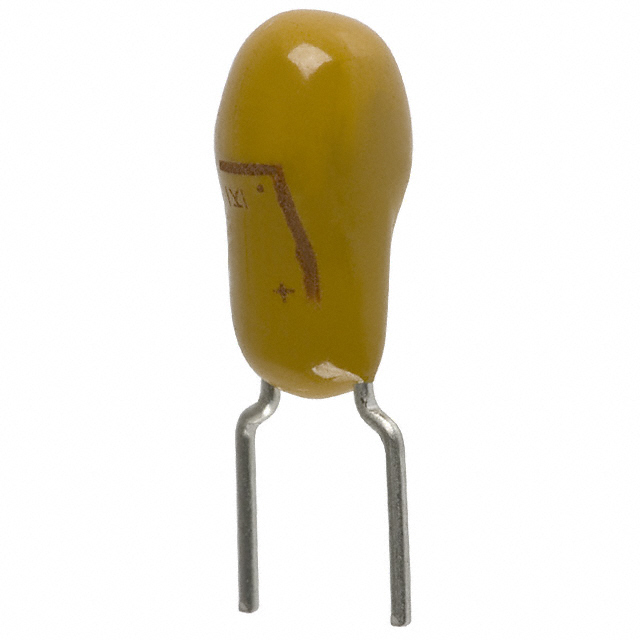

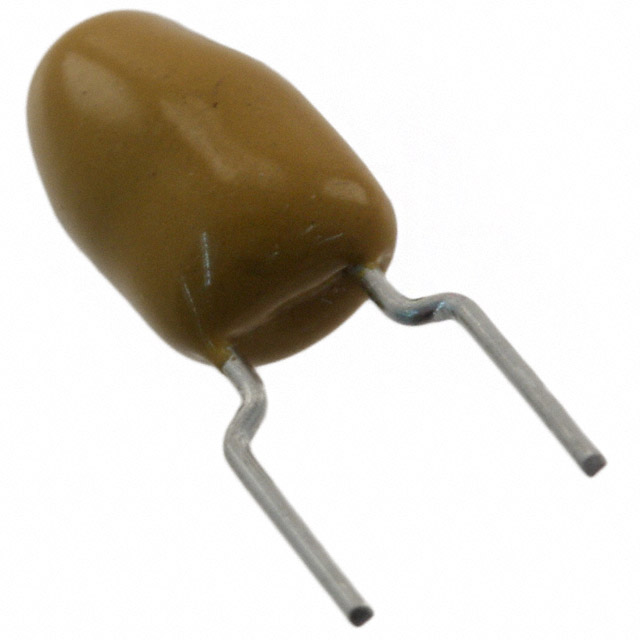

T356H Series

Manufacturer: KEMET

Catalog

TANTALUM CAPACITOR, POLAR, 22 ΜF, 25 V, ± 20%, PC PIN, 5.08 MM, 1.5 OHM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Tolerance	Lead Spacing	Lead Spacing	Height - Seated (Max)	Height - Seated (Max) [Max]	Features	Type	Voltage - Rated	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Manufacturer Size Code	Mounting Type	ESR (Equivalent Series Resistance)

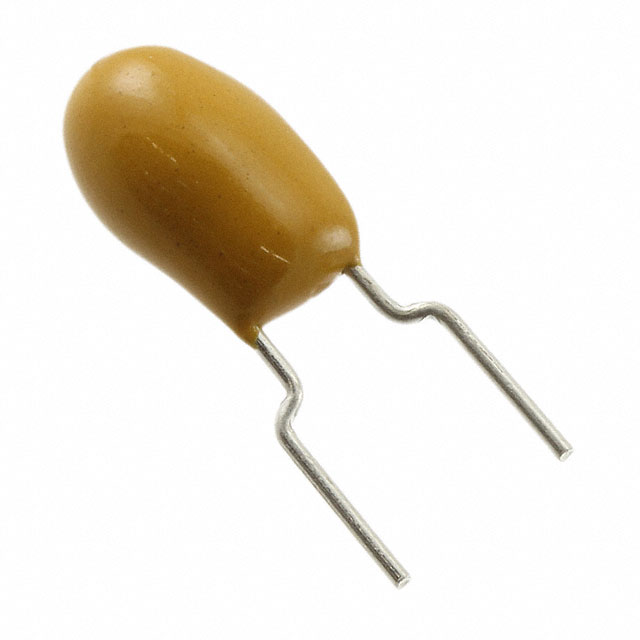

KEMET T356H226M025AT	-55 C	125 °C	Radial	20 %	0.2 in	5.08 mm	11.9 mm	0.469 in	General Purpose	Conformal Coated	25 VDC	22 µF	7.6 mm	0.299 in	H	Through Hole
KEMET T356H476K010AS	-55 C	125 °C	Radial	10 %	0.2 in	5.08 mm	11.9 mm	0.469 in	General Purpose	Conformal Coated	10 V	47 µF	7.6 mm	0.299 in	H	Through Hole	1.7 Ohms

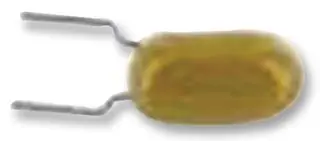

KEMET T356H476K010AT	-55 C	125 °C	Radial	10 %	0.2 in	5.08 mm	11.9 mm	0.469 in	General Purpose	Conformal Coated	10 V	47 µF	7.6 mm	0.299 in	H	Through Hole	1.7 Ohms
KEMET T356H686K010AT	-55 C	125 °C	Radial	10 %	0.2 in	5.08 mm	11.9 mm	0.469 in	General Purpose	Conformal Coated	10 V	68 µF	7.6 mm	0.299 in	H	Through Hole	1.3 Ohm
KEMET T356H226K025AT	-55 C	125 °C	Radial	10 %	0.2 in	5.08 mm	11.9 mm	0.469 in	General Purpose	Conformal Coated	25 VDC	22 µF	7.6 mm	0.299 in	H	Through Hole	1.5 Ohm
KEMET T356H336K016AS	-55 C	125 °C	Radial	10 %	0.2 in	5.08 mm	11.9 mm	0.469 in	General Purpose	Conformal Coated	16 V	33 ÁF	7.6 mm	0.299 in	H	Through Hole	1.6 Ohm
