M80-866 Series

Catalog

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 26 CONTACTS, THROUGH HOLE

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Material	Contact Type	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Shrouding	Fastening Type	Connector Type	Termination	Contact Material	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Style	Insulation Color	Mounting Type	Features	Number of Rows [custom]	Number of Positions Loaded	Number of Positions	Contact Shape	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post

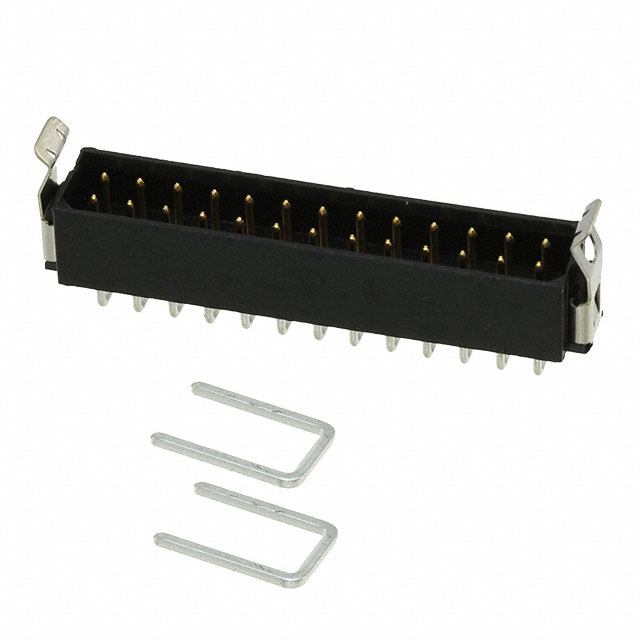

Harwin Inc. M80-8662622	118.1 µin	3 µm	-55 C	125 °C	Gold	Polyester Glass Filled	Male Pin	0.235 in	5.97 mm	2.2 A	0.079 "	2 mm	0.118 in	3 mm	Tin-Lead	Shrouded - 4 Wall	Latch Lock	Header	Solder	Phosphor Bronze	UL94 V-0	2 mm	0.079 in	29.5 µin	0.75 µm	Board to Board Cable	Black	Right Angle Through Hole	Strain Relief Clips	2	All	26	Circular	120 VDC

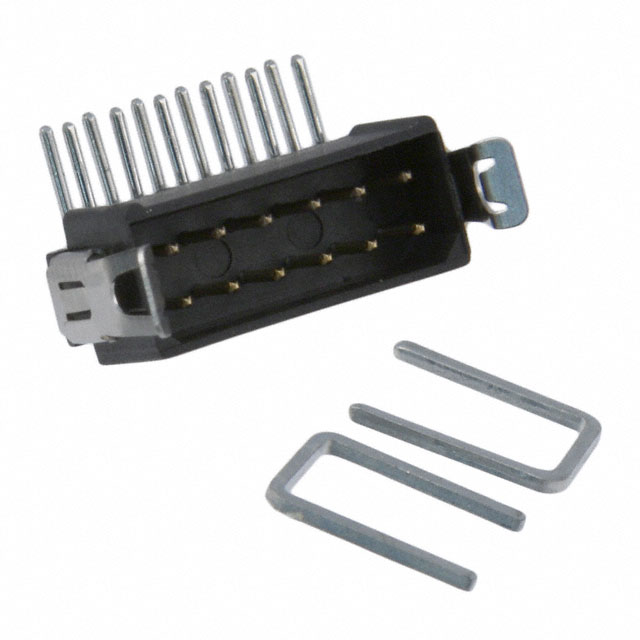

Harwin Inc. M80-8661222	118.1 µin	3 µm	-55 C	125 °C	Gold	Polyester Glass Filled	Male Pin	0.235 in	5.97 mm	2.2 A	0.079 "	2 mm	0.118 in	3 mm	Tin-Lead	Shrouded - 4 Wall	Latch Lock	Header	Solder	Phosphor Bronze	UL94 V-0	2 mm	0.079 in	29.5 µin	0.75 µm	Board to Board Cable	Black	Right Angle Through Hole	Strain Relief Clips	2	All	12	Circular	120 VDC
Harwin Inc. M80-8661022	118.1 µin	3 µm	-55 C	125 °C	Gold	Polyester Glass Filled	Male Pin	0.235 in	5.97 mm	2.2 A	0.079 "	2 mm	0.118 in	3 mm	Tin-Lead	Shrouded - 4 Wall	Latch Lock	Header	Solder	Phosphor Bronze	UL94 V-0	2 mm	0.079 in	29.5 µin	0.75 µm	Board to Board Cable	Black	Right Angle Through Hole	Strain Relief Clips	2	All	10	Circular	120 VDC
Harwin Inc. M80-8660822	118.1 µin	3 µm	-55 C	125 °C	Gold	Polyester Glass Filled	Male Pin	0.235 in	5.97 mm	2.2 A	0.079 "	2 mm	0.118 in	3 mm	Tin-Lead	Shrouded - 4 Wall	Latch Lock	Header	Solder	Phosphor Bronze	UL94 V-0	2 mm	0.079 in	29.5 µin	0.75 µm	Board to Board Cable	Black	Right Angle Through Hole	Strain Relief Clips	2	All	8	Circular	120 VDC
Harwin Inc. M80-8661405			-55 C	125 °C	Gold	Polyester Glass Filled	Male Pin	0.235 in	5.97 mm	2.2 A	0.079 "	2 mm	0.118 in	3 mm	Gold	Shrouded - 4 Wall	Latch Lock	Header	Solder	Phosphor Bronze	UL94 V-0	2 mm	0.079 in	29.5 µin	0.75 µm	Board to Board Cable	Black	Right Angle Through Hole		2	All	14	Circular	120 VAC	29.5 µin	0.75 µm
Harwin Inc. M80-8661822	118.1 µin	3 µm	-55 C	125 °C	Gold	Polyester Glass Filled	Male Pin	0.235 in	5.97 mm	2.2 A	0.079 "	2 mm	0.118 in	3 mm	Tin-Lead	Shrouded - 4 Wall	Latch Lock	Header	Solder	Phosphor Bronze	UL94 V-0	2 mm	0.079 in	29.5 µin	0.75 µm	Board to Board Cable	Black	Right Angle Through Hole	Strain Relief Clips	2	All	18	Circular	120 VDC
Harwin Inc. M80-8662005			-55 C	125 °C	Gold	Polyester Glass Filled	Male Pin	0.235 in	5.97 mm	2.2 A	0.079 "	2 mm	0.118 in	3 mm		Shrouded - 4 Wall	Latch Lock	Header	Solder	Phosphor Bronze	UL94 V-0	2 mm	0.079 in	29.5 µin	0.75 µm	Board to Board Cable	Black	Right Angle Through Hole	Strain Relief Clips	2	All	20	Circular	120 VDC
Harwin Inc. M80-8662022	118.1 µin	3 µm	-55 C	125 °C	Gold	Polyester Glass Filled	Male Pin	0.235 in	5.97 mm	2.2 A	0.079 "	2 mm	0.118 in	3 mm	Tin-Lead	Shrouded - 4 Wall	Latch Lock	Header	Solder	Phosphor Bronze	UL94 V-0	2 mm	0.079 in	29.5 µin	0.75 µm	Board to Board Cable	Black	Right Angle Through Hole	Strain Relief Clips	2	All	20	Circular	120 VDC
Harwin Inc. M80-8660622	118.1 µin	3 µm	-55 C	125 °C	Gold	Polyester Glass Filled	Male Pin	0.235 in	5.97 mm	2.2 A	0.079 "	2 mm	0.118 in	3 mm	Tin-Lead	Shrouded - 4 Wall	Latch Lock	Header	Solder	Phosphor Bronze	UL94 V-0	2 mm	0.079 in	29.5 µin	0.75 µm	Board to Board Cable	Black	Right Angle Through Hole	Strain Relief Clips	2	All	6	Circular	120 VDC

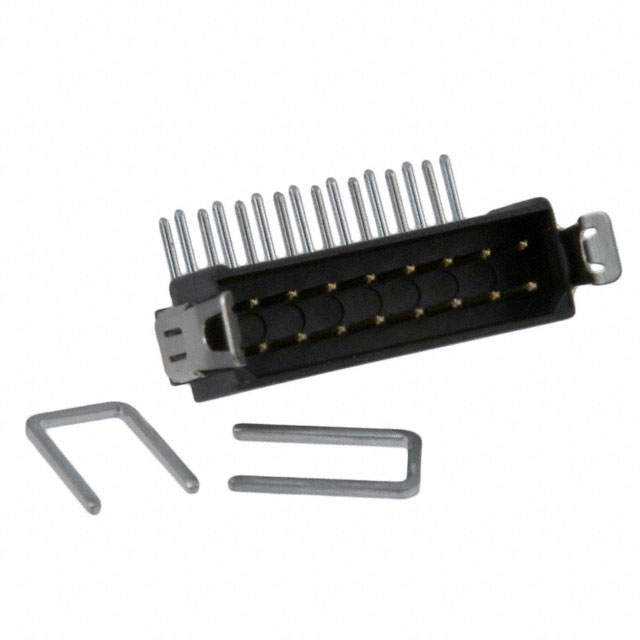

Harwin Inc. M80-8661622	118.1 µin	3 µm	-55 C	125 °C	Gold	Polyester Glass Filled	Male Pin	0.235 in	5.97 mm	2.2 A	0.079 "	2 mm	0.118 in	3 mm	Tin-Lead	Shrouded - 4 Wall	Latch Lock	Header	Solder	Phosphor Bronze	UL94 V-0	2 mm	0.079 in	29.5 µin	0.75 µm	Board to Board Cable	Black	Right Angle Through Hole	Strain Relief Clips	2	All	16	Circular	120 VDC
