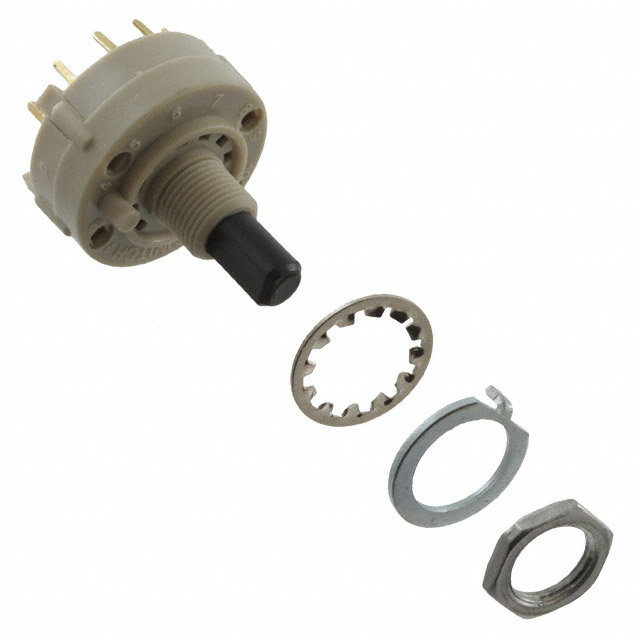

KC15A9 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROTARY 5POS 350MA 125V
| Part | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Number of Poles per Deck | Index Stops | Contact Timing | Actuator Length [x] | Actuator Type | Number of Positions | Angle of Throw | Current Rating (Amps) | Mounting Type | Depth Behind Panel [z] | Termination Style | Number of Decks [custom] | Circuit per Deck | Contact Finish | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 9.8 mm | 125 V | 1 | Fixed | Shorting (MBB) | 9.5 mm | Flatted (6.35mm Dia) | 5 | 30 ° | 350 mA | Panel Mount | 18.5 mm | Solder Lug | 1 | SP5T | Silver | Copper Alloy |
E-Switch | 9.8 mm | 125 V | 1 | Fixed | Non-Shorting (BBM) | 9.5 mm | Flatted (6.35mm Dia) | 5 | 30 ° | 350 mA | Panel Mount | 18.5 mm | Solder Lug | 1 | SP5T | Silver | Copper Alloy |
 E-Switch | 9.8 mm | 125 V | 1 | Fixed | Non-Shorting (BBM) | 9.5 mm | Flatted (6.35mm Dia) | 5 | 30 ° | 350 mA | Panel Mount Through Hole | 14.2 mm | PC Pin | 1 | SP5T | Gold | Copper Alloy |
